This receiver is an electric device with dry relay output, it and the transmitter form a receiver transmitter system. This system may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, aerial vehicle, etc. It can remote control equipment on land, water and air, such as remote control of lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, and business signs. The applications are endless.
Wireless control, easy to install.
Super long working range: With the transmitter forming a complete set, the maximum working distance may reach 5000 meters in an open area.

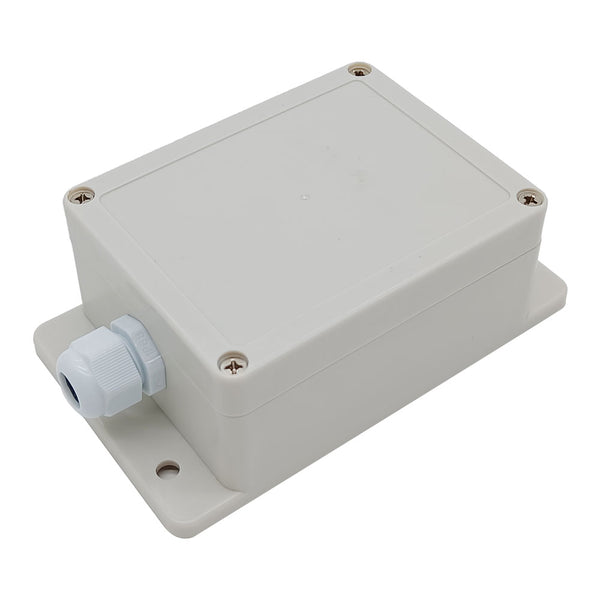

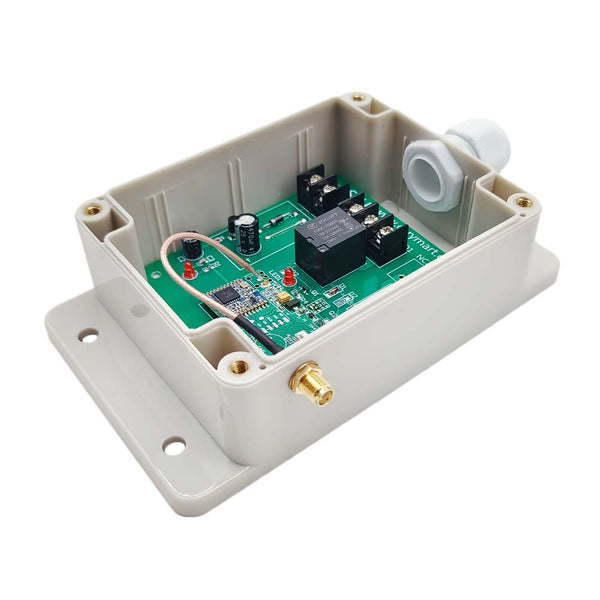

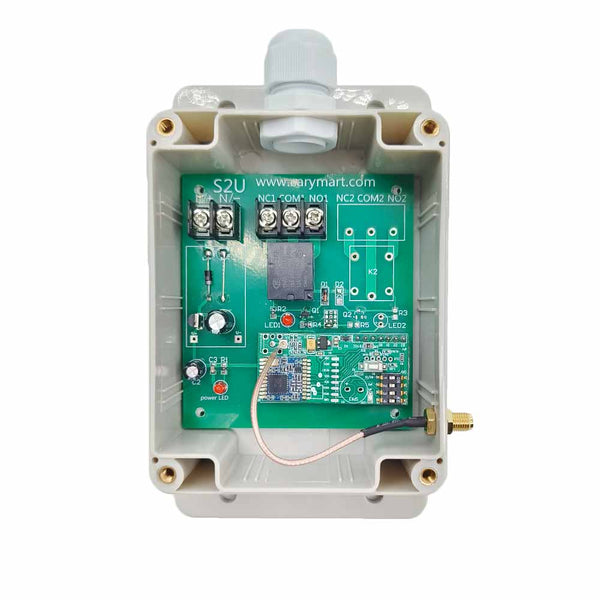

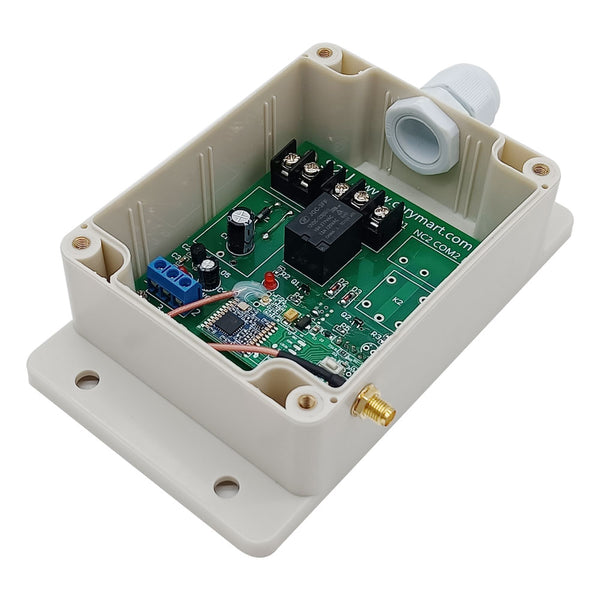

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Four operating voltage versions: DC 6V, 9V, 12V, 24V optional.
Relay Output: This receiver is dry relay output, it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch.
With wired control terminals: You can connect sensors, limit switches, manual switches or external devices to control the receiver.

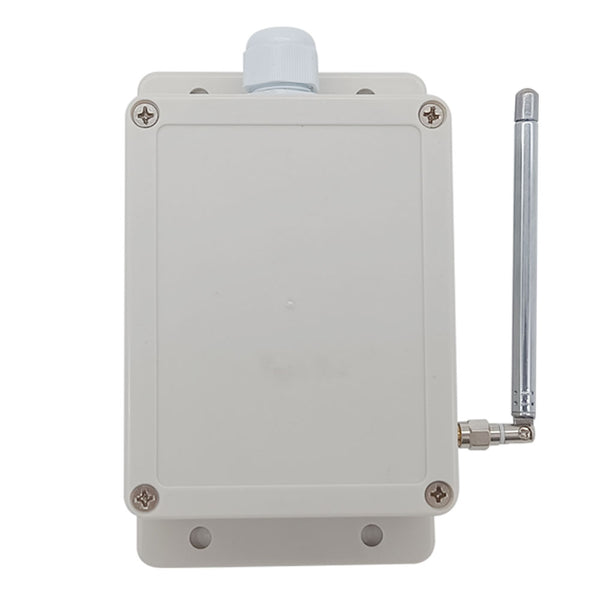

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
The receiver and the transmitter have a Two-way working mode, so the user can know the working status of the receiver by the transmitter.
Two-way working mode: When the receiver is successfully triggered by the signal from the transmitter, it will immediately transmit a feedback signal to the transmitter, then the transmitter will send out a buzzing sound to inform you that the receiver has been successfully triggered.
Model No.: S1UW-DC
Operating Voltage: 6VDC (model S1UW-DC06), or 9±1VDC (model S1UW-DC09), or 12±1VDC (model S1UW-DC12), or 24±2VDC (model S1UW-DC24), the operating voltage must be specified when ordering.
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Channel: 1 CH
Output Type: Dry Relays Output (Normally Open and Normally Closed)
Maximum Load Voltage of Relay: 240VAC or 28VDC
Maximum Load Current of Relay: 10A / each channel
Wire Range of Terminals: 22-12 AWG
3 Selectable Modes: Self-locking, Momentary, Interlocking
Operating Temperature: -20°C ~ +70°C

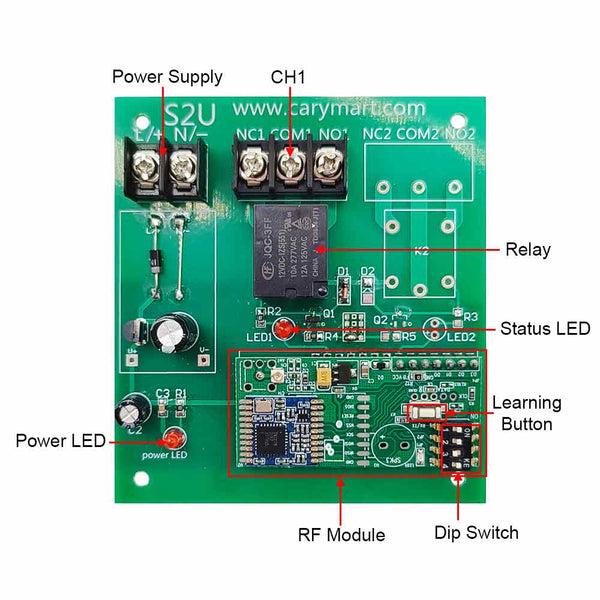

PCB size: 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches)
Case size: 115 x 90 x 55 mm (4.5 x 3.6 x 2.2 inches)

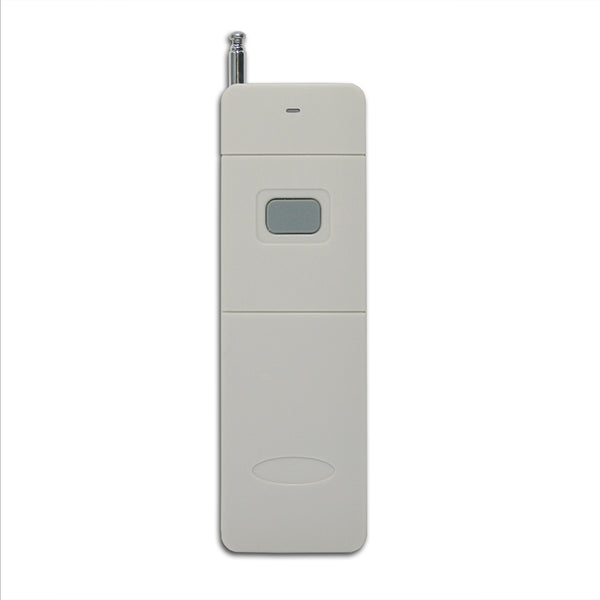

Model: 0021060 (CC-1) / 0021061 (CC-2)
Channel / Button: 1(CC-1) / 2(CC-2)
Button Symbol: No Symbol (CC-1) / A, B(CC-2)

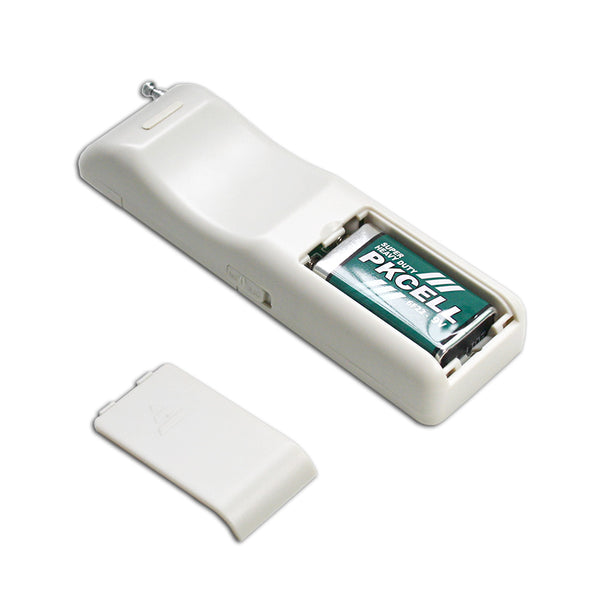

Operating Voltage: 9V (1 x 6F22-9V battery, can be used for 12 months)
Quiescent Current: 5μA
Working Current: 65mA (when the transmitter is transmitting the signal), 16mA( when the transmitter is receiving the signal).
Operating Frequency: 433.92 MHz
Modulation Mode: FSK + LORA
Feedback indication: buzzing sound
Transmitting Distance: 5000 meters / 15000 feet (theoretically)

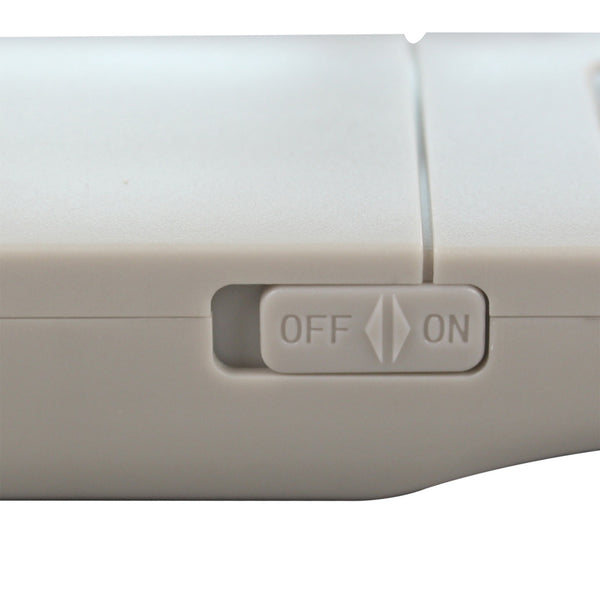

With power switch on the side.
Unit Size: 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches)
This receiver only works with 5000m transmitters, such as model CC-1 / CC-2 (5000 Meter / 15000 feet range) or CCW-1 / CCW-2 (waterproof, 5000 Meter / 15000 feet range).
When you set the receiver in Self-locking mode or Momentary mode, it should work with single button transmitter, such as model CC-1 or CCW-1. When you set the receiver in Interlocking mode, it should work with two buttons transmitter, such as model CC-2 or CCW-2.

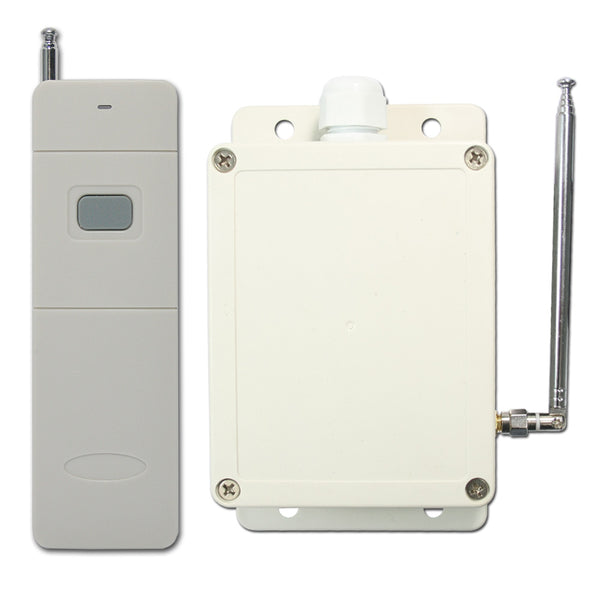

With the transmitter (such as CC-2) forming a complete set, the maximum working distance may reach 5000 meters in an open area.
The maximum working distance is based on theoretical data which would be without barriers and without any RF interference. In practice, it will be hindered by trees, walls or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.

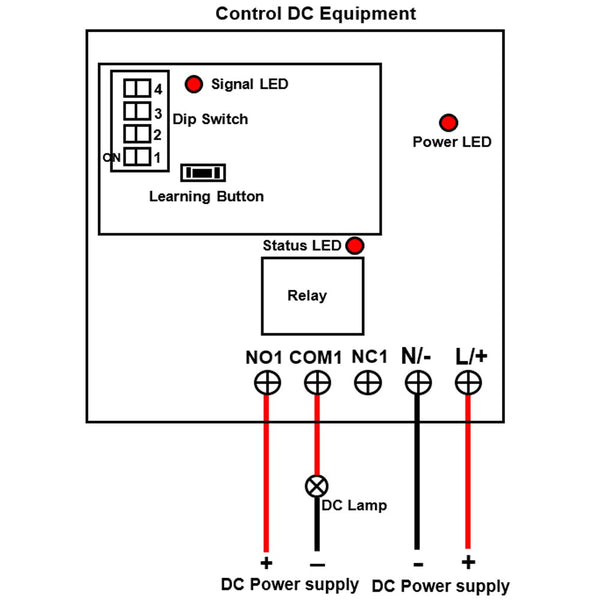

Setting different control modes:

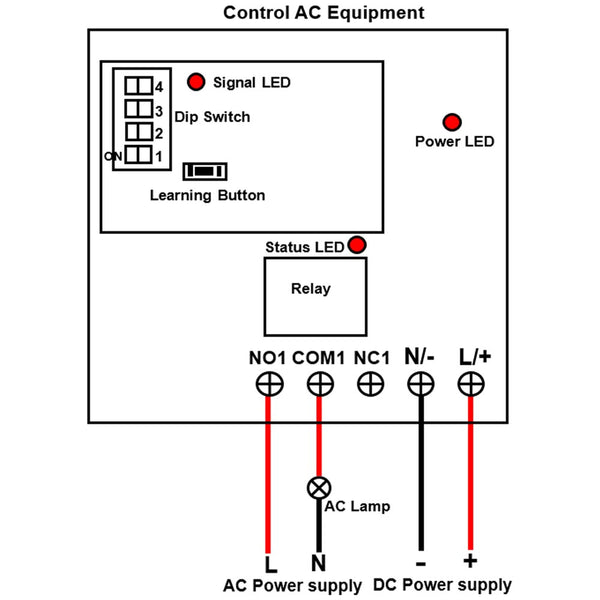

1) Setting Self-locking mode: Turn on the first bit of the dip switch.
The operation of Self-locking mode with the transmitter CC-1:
Press the button on the transmitter: The relay in the receiver is activated, and the connected lamp is turned on.
Press the button again: The relay is deactivated, and the connected lamp is turned off.
2) Setting Momentary mode: Turn on the first bit and the second bit of the dip switch.
The operation of Momentary mode with the transmitter CC-1:
Press and hold the button on the transmitter: The relay in the receiver is activated, and the connected lamp is turned on.
Release the button: The relay is deactivated, and the connected lamp is turned off.
3) Setting Interlocking mode: Turn on the second bit of the dip switch.

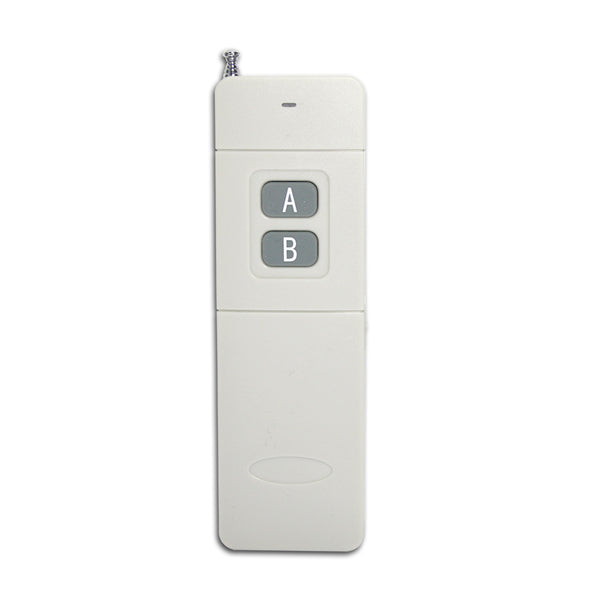

The operation of Interlocking mode with the transmitter CC-2:
Press the button A on the transmitter: The relay in the receiver is activated, and the connected lamp is turned on.
Press the button B on the transmitter: The relay is deactivated, and the connected lamp is turned off.

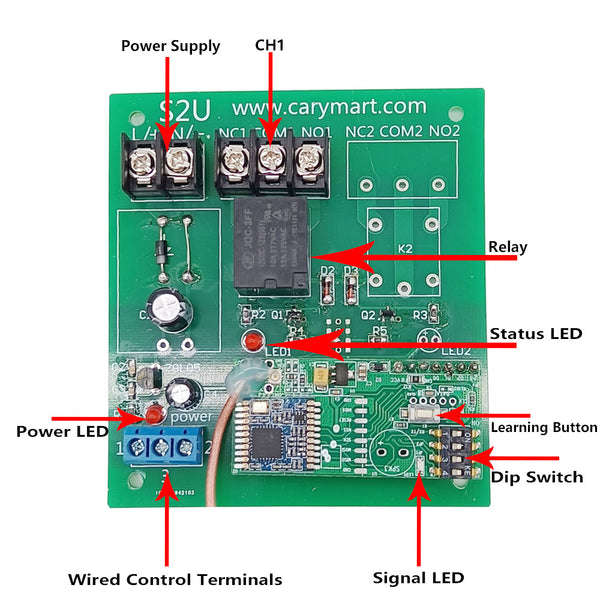

Wired control terminals:
The receiver has wired control terminals, and you can connect external devices, sensors, or manual switches to these terminals, then use them to control the receiver.
1) By low level signal:
You can connect the external devices (with low level output signal) to the terminal 1 (Signal+) and the terminal 3 (Signal−), then use the external devices to control the receiver.
When the external device outputs low level signal to the terminals 1 and 3, the relay in the receiver is activated, and the connected lamp is turned on.
When the external device stops to output signal, the relay is deactivated, and the connected lamp is turned off.
2) By NO/NC contact:
You can connect the manual switches (with NO/NC contact) to the terminals 1 and 3, then use the manual switches to control the receiver.
When connect the terminals 1 and 3 by the manual switch, the relay in the receiver is activated, and the connected lamp is turned on.
When disconnect the terminals 1 and 3 by the manual switch, the relay is deactivated, and the connected lamp is turned off.
1 x Receiver: S1UW-DC-ANT3
1 x Transmitter: CC-1/CCW-1/CC-2/CCW-2
1 x User manual
Notice: This receiver use an external telescopic antenna, and you can also install external magnetic sucker antenna with different length connection cable, such as magnetic sucker antenna & 1.5 meters cable (model: 0020910),magnetic sucker antenna & 5 meters cable (model: 0020914),magnetic sucker antenna & 10 meters cable (model: 0020916),magnetic sucker antenna & 30 meters cable (model: 0020917).
