Package Include:
12 x Receiver: Z-06 (Vibration & Beep mode)
1 x Transmitter: CB-12
1 x User manual
Application:
It can long range calling / reminding person with hearing impairment, or pet training.
Feature:
Wireless control.
You can use the transmitter (remote control) from anywhere within a reliable distance to control the receiver (wireless vibrator and beeper) to vibrate and beep.
The wireless signal can pass through walls, floors and doors.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.

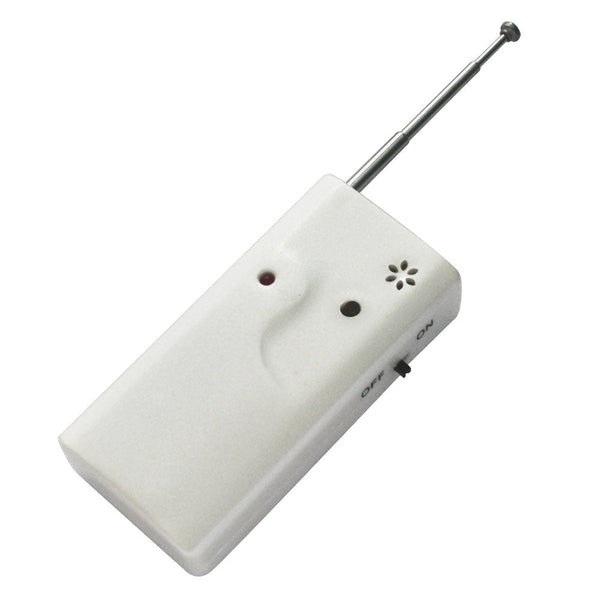

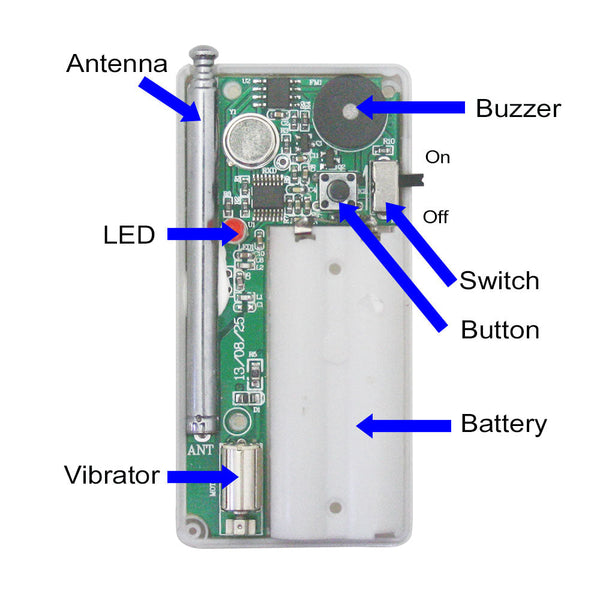

Receiver (Wireless Vibrator and Beeper):
Model No.: Z-06

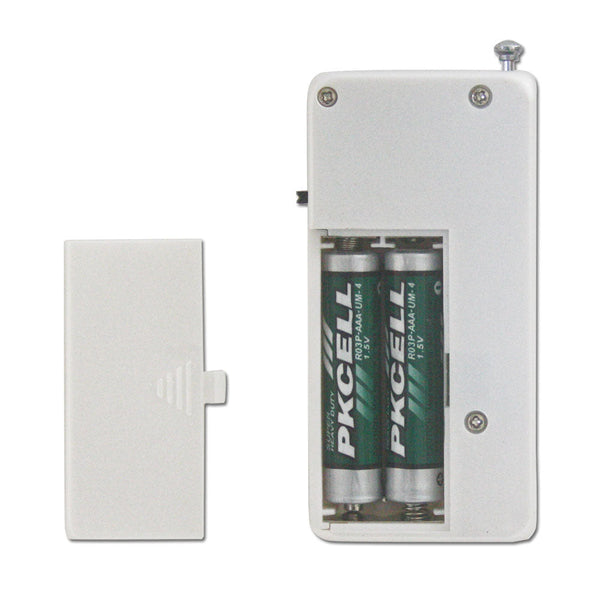

Operating Voltage: 2 x AAA 1.5V Battery
3 Working Modes: Vibration, Beep, Vibration+Beep
Decode: Learning code
Working Frequency: 433.92 MHz
With power switch on the side.
Size: 77mm x 38mm x 17mm
Transmitter (Remote Control):
Model No.: 0021029 (CB-12)
Channel/Button: 12
Button Symbol: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Operating Voltage: 9V (1 x 6F22 -9V battery)
Operating Current: 30mA
Operating Frequency: 433.92MHz
Transmitting Distance: 1000m / 3000ft (theoretically)
It has an on / off button on the side.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: Unit Size: 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches)
Working Range:
With a transmitter (such as CB-12) to form a complete set, the maximum working distance can reach 1000 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
Setting different control modes:
1) Setting Vibration mode (works with transmitter CB-12): Press the button on the receiver (wireless vibrator and beeper), the receiver (wireless vibrator and beeper) vibrates once.
Press the button 1 on the transmitter, the receiver 1 vibrates for 5 seconds.
Press the button 2 on the transmitter, the receiver 2 vibrates for 5 seconds.
...
Press the button 12 on the transmitter, the receiver 12 vibrates for 5 seconds.
2) Setting Beep mode (works with transmitter CB-12): Press the button on the receiver (wireless vibrator and beeper), the receiver (wireless vibrator and beeper) beep once.
Press the button 1 on the transmitter, the receiver 1 beeps for 5 seconds.
Press the button 2 on the transmitter, the receiver 2 beeps for 5 seconds.
...
Press the button 12 on the transmitter, the receiver 12 beeps for 5 seconds.
3) Setting Vibration+Beep mode (works with transmitter CB-12): Press the button on the receiver (wireless vibrator and beeper), the receiver (wireless vibrator and beeper) vibrate and beep once at the same time.
Press the button 1 on the transmitter, the receiver 1 vibrates and beeps together for 5 seconds.
Press the button 2 on the transmitter, the receiver 2 vibrates and beeps together for 5 seconds.
...
Press the button 12 on the transmitter, the receiver 12 vibrates and beeps together for 5 seconds.
