This is an AC 120V or 220V wireless RF remote control switch kit, for retrofitting AC 120V or 220V electric hoist, electric winch, or electric lift, realize the dual control mode of long range wireless control and manual control.
Package Include:
1 x Control box
1 x Wired handle
1 x Remote control
1 x User manual
Application:
Electric hoist or electric winch or electric lift is a light and small lifting equipment, usually used to lift heavy objects. The electric hoist consists of an AC motor, a transmission mechanism, a control handle, a reel, a wire rope and a hook, and is usually operated by a person using a wired handle on the ground. It has the characteristics of small size, light weight, simple operation and convenient use, and is used in households, industrial and mining enterprises, storage, docks and other places.
This retrofit kit consists of a control box with a wired control handle and a remote. The capacitor is placed in the control box, which is also fitted with a limit switch.
Using this wireless kit, we can retrofit the electric hoist to remote control. In this way, we can use both the remote control and the wired handle to operate the electric hoist, which is more convenient to use.
Feature:
Wireless control, simple wiring, easy installation.
Universal power: Support 110V AC (110V~120V) used in US, Canada, etc, and 220V AC (220V~240V) used in Germany, UK, France, etc.
Up and down dual control.
Built-in capacitors in the control box.
Stable signal, no fear of interference, strong signal can pass through the wall, can realize 100 meters long-distance all-round partition wall remote control.
The remote uses waterproof rubber pads and IP65 grade shell, which greatly increases the waterproof, dust-proof and drop-proof performance.
High-quality imported chips, long service life.
There is a limit switch on the control box. When the electric hoist rises to a certain dangerous height, it will automatically stop working to improve safety.
Remote control parameters:
Model No.: 0020802
Working power supply: 3V / 2 x AA batteries
Control distance: 100 meters
Security code: 32 digits (4.2 billion groups), never repeat
Protection class: IP65
Shell: Glass fiber reinforced nylon
Temperature range: -40°C+85°C
Control box parameters:
Shell: Glass fiber reinforced nylon
Frequency range: Uhf: 310-331mhz: Uhf: 446mhz
Channels: 128 (can automatically change channels to avoid co-channel interference)
Security code: 32 digits (4.2 billion groups), never repeat
Protection class: IP65
Operating Voltage: 110~240V AC (110V/120V/220V/240V)
Temperature range: -40°C+85°C
Pure copper anti-jamming antenna: stronger signal reception and superior anti-jamming ability.
High-power 40A relay, long service life.
How to install the control box on electric hoist:
1) Remove the cover with the connecting wire and the handle from original junction box of the electric hoist.

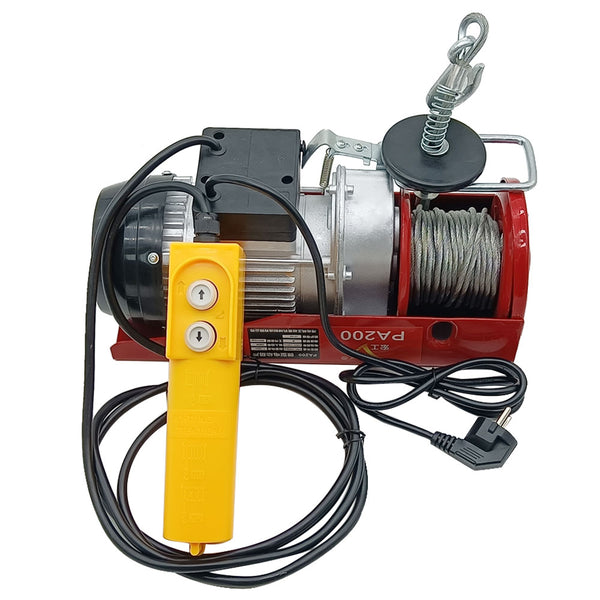

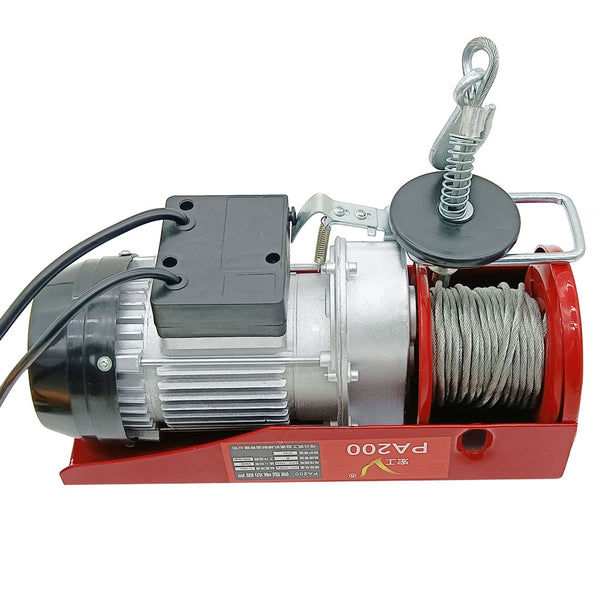

The electric hoist has a junction box, we opened the cover to see various connecting wires and a limit switch. Three wires are connected to the motor through a wire connector, and the other ground wire is connected to the metal housing.
2) Install the control box to electric hoist:
Remove the black cover of the control box, you can see some wires and a wire connector, and you also can see a same limit switch.
Connect the ground wire, neutral wire, up wire and down wire of this new control box to the ground wire, neutral wire, up wire and down wire of the electric hoist respectively.

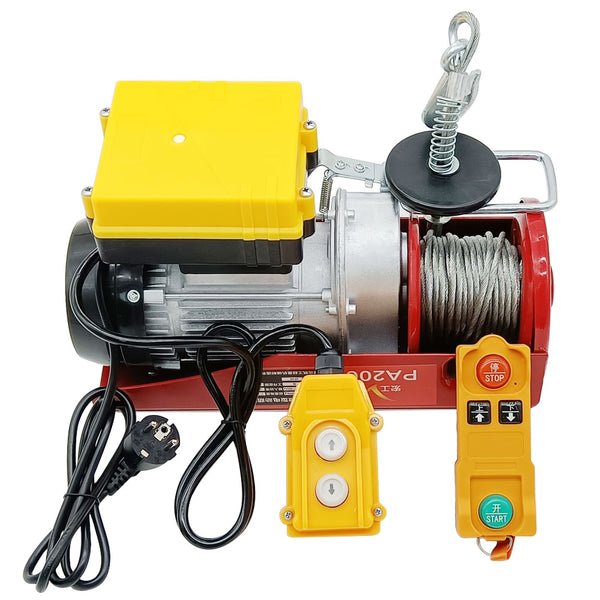

How to operate the electric hoist with this new control box:
The electric hoist can be operated with the remote control and wired handle at the same time.

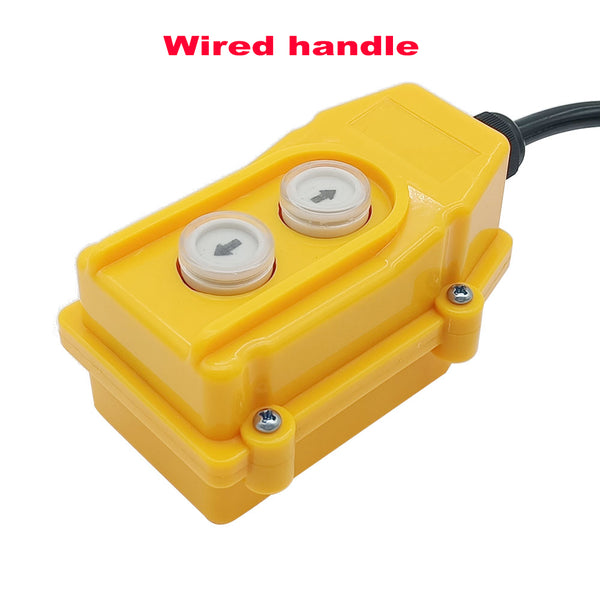

1) Handle control electric hoist:
The control handle has two buttons.
Press the "UP" button of the handle, the hook will rise.
Press the "DOWN" button of the handle, the hook will drop.
2) Wireless remote control electric hoist:
The wireless remote control has four buttons: "START", "STOP", "UP", "DOWN".
First press the button "START", then you can use the up and down buttons of the remote control to operate the electric hoist.
Press and hold the button "DOWN" and the hook will drop.
Press and hold the button "UP" and the hook will rise.
Note: If we press the button "STOP" again, then you cannot use the up and down buttons of the remote control to operate the electric hoist to prevent false triggering.
Electric Hoist Lifting Capacity | Capacitor |
200kg | 20UF |
300kg | 20UF |
400kg | 30UF |
500kg | 35UF |
600kg | 40UF |
800kg | 50UF |
1000kg | 70UF |
