Package Include:

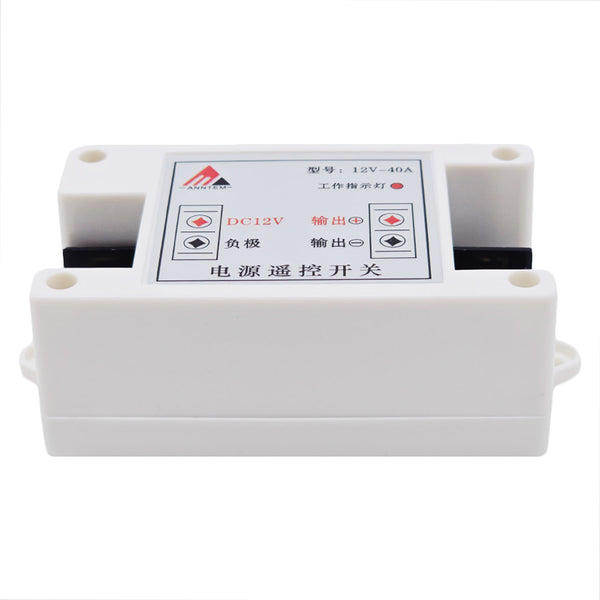

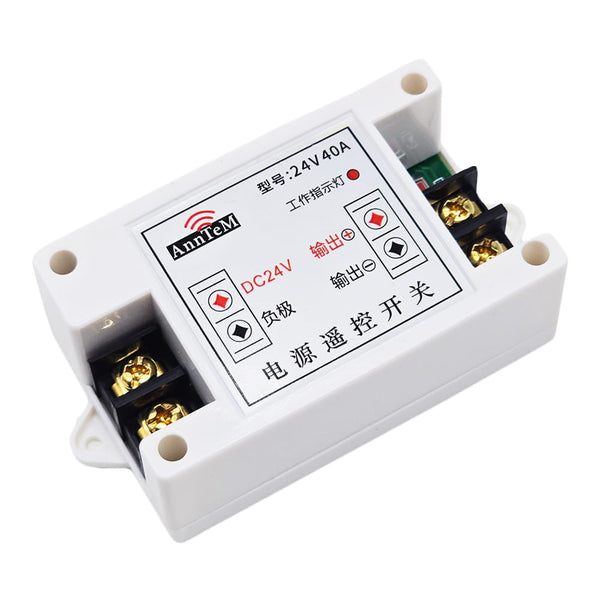

1 x Receiver: S1PXA-DC
1 x User manual
Application:
It can long range wireless remote control DC equipments, such as illumination, lamps, LED lights, pumps, motors, solenoid valves, electric locks, etc.
Feature:
Wireless control, easy to install.
Two operating voltage versions: DC 8~15V or 15~26V optional.

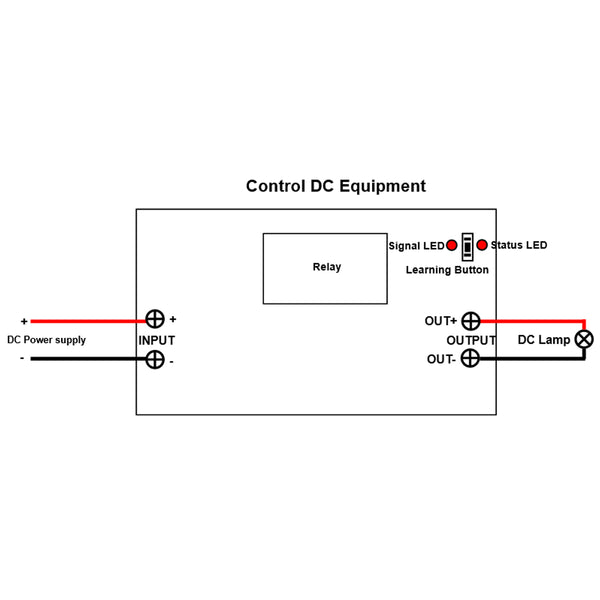

DC Power Output: It can control DC equipment with a voltage in the range of DC 8~15V or 15~26V.
High Power: It can work at maximum current 30A.
With 10 seconds delay function.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
Receiver Parameters:
Model: S1PXA-DC12 / S1PXA-DC24
Operating Voltage: DC 8~15V (model S1PXA-DC12), or DC 15~26V (model S1PXA-DC24)
Output Type: DC 8~15V (model S1PXA-DC12), or DC 15~26V (model S1PXA-DC24), same as input voltage
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 30A
Channel: 1 CH
4 Selectable Working Modes: Self-locking, Momentary, Interlocking, Delay
Working Frequency: 433.92 MHz

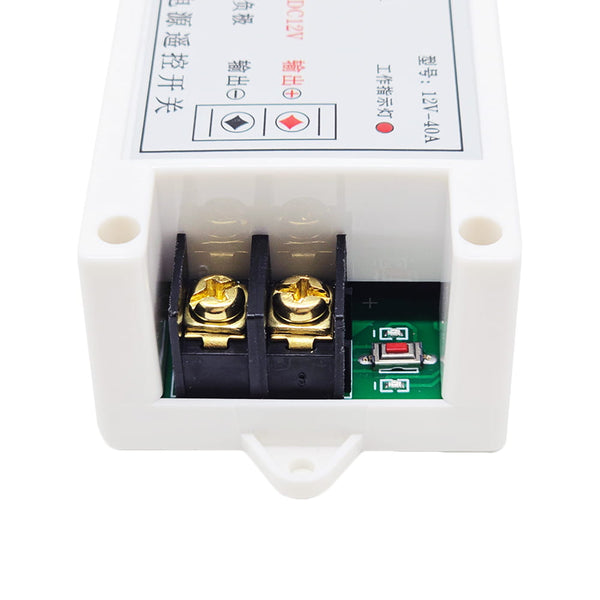

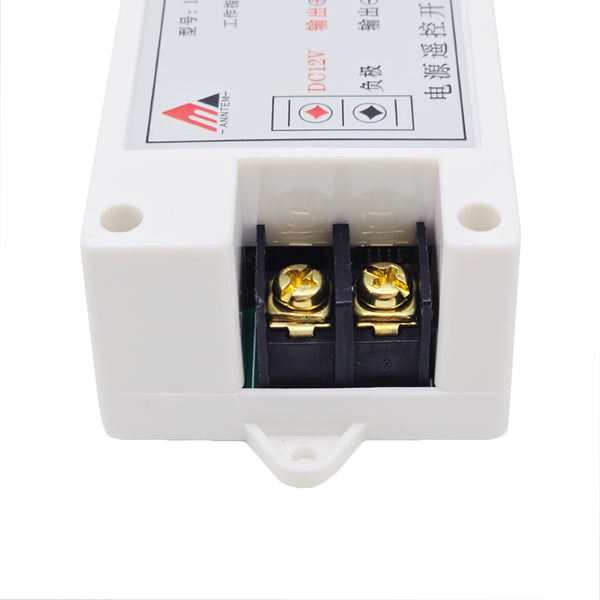

Suitable Wires for Connecting Terminals: 22-12 AWG
Operating Temperature: -20 °C ~ +70 °C

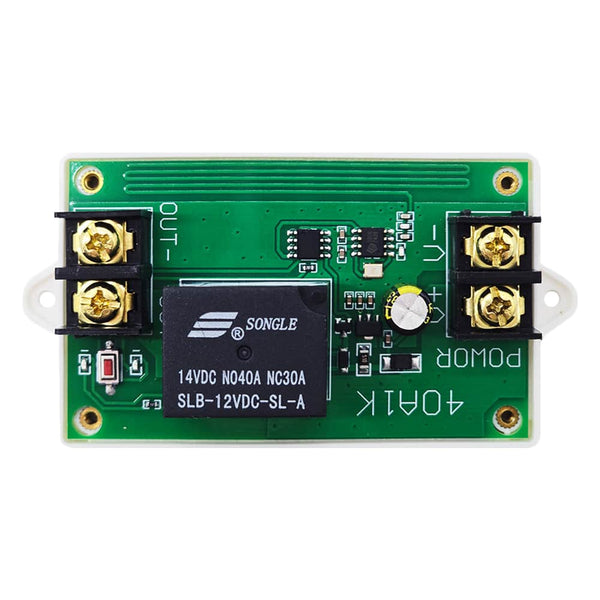

PCB size: 90 x 47 x 23 mm
Case size: 96 x 50 x 33 mm
Applicable Transmitters:
The receiver can work with different transmitters.
When you set the receiver in Self-locking mode, Momentary mode or Delay, it should work with single button transmitter, such as model C-1 (100m / 300ft), CP-1 (500m / 1500ft), and CB-1 (1000m / 3000ft).
When you set the receiver in Interlocking mode, it should work with two buttons transmitter, such as model C-2 (100m / 300ft), CP-2 (500m / 1500ft), CD-2 (Industrial, 1000m / 3000ft), and CB-2 (1000m / 3000ft).
Working Range:
This receiver and different transmitters form a complete set, which can achieve different working distances. For example, when it and the transmitter CQ-1 or CQ-2 form a complete set, the maximum working distance may reach 150 feet or 50 meters in an open area.
The maximum working distance is based on theoretical data without obstacles and any RF interference. In practice, it will be hindered by trees, walls, or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
If you need a longer working distance, you can use a powerful transmitter.
Setting different control modes:

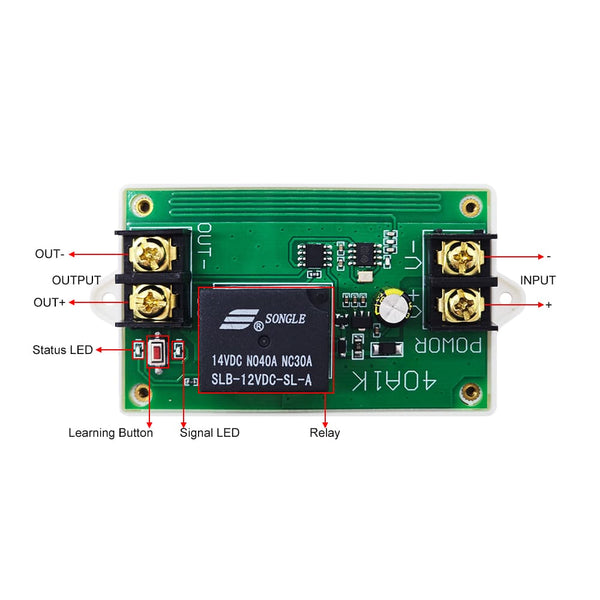

1) Setting Self-locking mode: Press and hold the learning button on the receiver until signal LED flashes 3 times, then release the button.
The operation of Self-locking mode with the transmitter CQ-1:
Press the button of the transmitter: The output terminals of the receiver outputs DC power, and the connected lamp is turned on.
Press the button again: The output terminals of the receiver stops outputting DC power, and the connected lamp is turned off.
2) Setting Momentary mode: Press and hold the learning button on the receiver until signal LED flashes 2 times, then release the button.
The operation of Momentary mode with the transmitter CQ-1:
Press and hold the button of the transmitter: The output terminals of the receiver outputs DC power, and the connected lamp is turned on.
Release the button: The output terminals of the receiver stops outputting DC power, and the connected lamp is turned off.
3) Setting Interlocking mode: Press and hold the learning button on the receiver until signal LED flashes 1 time, then release the button.
The operation of Interlocking mode with the transmitter CQ-2:
Press the button ON of the transmitter: The output terminals of the receiver outputs DC power, and the connected lamp is turned on.
Press the button OFF of the transmitter: The output terminals of the receiver stops outputting DC power, and the connected lamp is turned off.
4) Setting 10-seconds Delay mode: Press and hold the learning button on the receiver until signal LED flashes 4 time, then release the button.
The operation of Delay mode with the transmitter CQ-1:
Press the button of the transmitter: The output terminals of the receiver outputs DC power, and the connected lamp is turned on.
After 10 seconds: The output terminals of the receiver automatically stops outputting DC power, and the connected lamp is automatically turned off.
During the 10 seconds, you can also press the learning button for 1-2 seconds to immediately stop outputting DC power and turn off the connected lamp.
