Note: This product does not include a remote control (transmitter), if you need it, please click the link of the remote control (transmitter) in the description below to buy.
Package Include:
1 x Receiver: S2PF-DC09 or S2PF-DC12 or S2PF-DC24
1 x User manual
Application:
For long range remote control DC 9V 12V 24V electric motor to rotate clockwise (CW), counterclockwise (CCW) and stop.
Features:
Wireless remote control, easy to install.

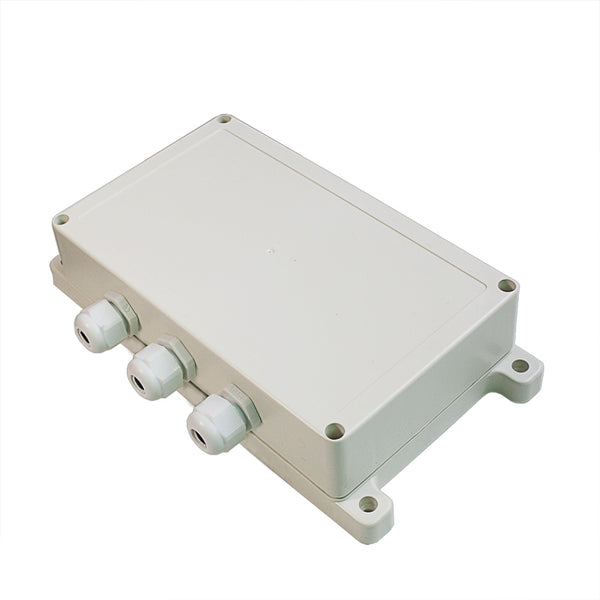

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
3 Operating voltage versions: DC 9V, 12V, 24V optional.
High Power: Each channel can work at maximum current 30A.
You can remote control two DC motors positive rotation, reverse rotation or stop rotation with the transmitter from any place within a reliable distance.
With reverse power protection and over current protection.
With limit control terminals: You can connect limit switches or sensors to stop the motor.
With wired control terminals: You can connect manual switches or external devices (with low level output signal, such as sensors) to control the motor.
The RF wireless signal can pass through walls, floors and doors.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.
Receiver Parameters:

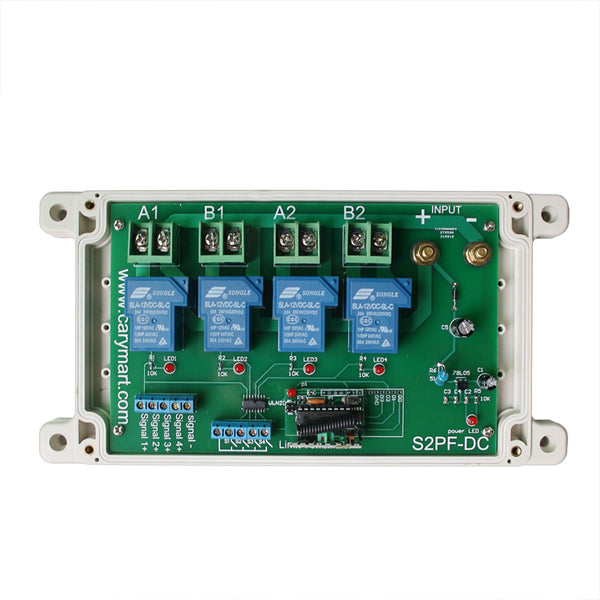

Model No: S2PF-DC
Operating Voltage: 9±1VDC (model S2PF-DC09), or 12±1VDC (model S2PF-DC12), or 24±2VDC (model S2PF-DC24), the operating voltage must be specified when ordering.
Output: DC9V (S2PF-DC09), DC12V (S2PF-DC12), DC24V (S2PF-DC24)
Control Mode: Momentary and Interlocking
Quiescent Current: ≤6mA
Channel: 2 CH, can work with 2 DC motors
Maximum Working Current: 30A / each channel, so motor's maximum starting current can not exceed 30A.
Working Frequency: 433.92 MHz
Wire range for the terminals: 22-12 AWG
Operating Temperature: -20 ° C to +70 ° C
PCB size: 170 x 100 x 18mm
Case size: 200 x 120 x 53 mm
Applicable Transmitters:
This receiver can work with different transmitters. Such as model CV-6-2 (500 metres) and CB-6 (1000 metres).
Working Range:
With a transmitter (such as CV-6-2) to form a complete set, the maximum working distance can reach 500 metres in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as transmitter CB-6.
Usage:
The receiver can be used to control DC 9V 12V 24V motor.
If the power supply of those equipments is DC 12V, you should choose the receiver with same DC 12V version.
If the power supply of those equipments is DC 24V, you should choose the receiver with same DC 24V version.

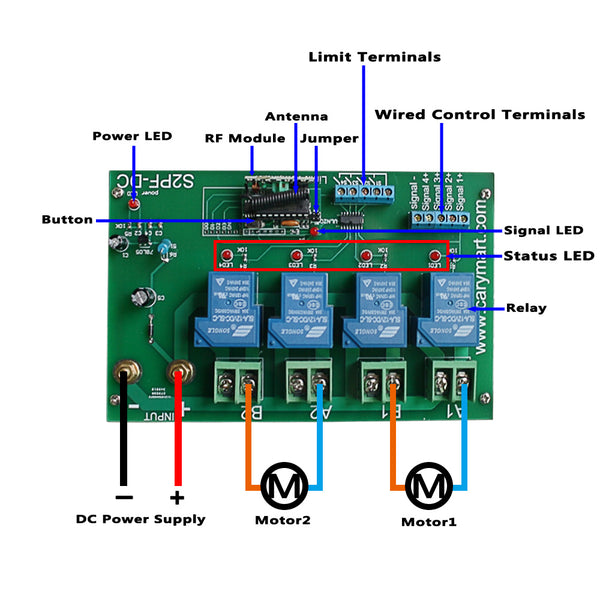

Wiring:
1) Connect the positive pole of DC power supply to terminal “+” of INPUT, and connect the negative pole of DC power supply to terminal “-” of INPUT.
2) Connect terminals “A1” and “B1” to motor 1; connect terminals “A2” and “B2” to motor 2. You can exchange motor's two wires to change the rotating direction of motor.
Setting different control modes:
1) Setting Interlocking mode: Do not connect Jumper-1 (CN1) and Jumper-2 (CN2)
Mode Interlocking (working with transmitter CV-6-2):
Press button ▲ on the left: motor 1 rotates in positive direction.
Press button ▼ on the left: motor 1 rotates in reversal direction.
Press button ■ on the left: motor 1 stops.
Press button ▲ on the right: motor 2 rotates in positive direction.
Press button ▼ on the right: motor 2 rotates in reversal direction.
Press button ■ on the right: motor 2 stops.
2) Setting Momentary mode: Only connect Jumper-1 (CN1)
Mode Momentary (working with transmitter CV-6-2):
Press and hold button ▲ on the left: motor 1 rotates in positive direction. Release button ▲ on the left: motor 1 stops.
Press and hold button▼ on the left: motor 1 rotates in reversal direction. Release button ▼ on the left: motor 1 stops.
Press and hold button ▲ on the right: motor 2 rotates in positive direction. Release button▲ on the right: motor 2 stops.
Press and hold button▼ on the right: motor 2 rotates in reversal direction. Release button ▼ on the right: motor 2 stops.
Limit control terminals:
Limit control terminals S1, S2, S3 and S4 are normally open, you can connect limit switches or sensors (normally open type) to terminals S1, S2, S3 and S4, and then you can use limit switches or sensors to stop the motor.
When motor 1 rotates in positive direction, if connect two terminals of S1, the motor 1 will stop automatically.
When motor 1 rotates reversal direction, if connect two terminals of S2, the motor 1 will stop automatically.
When motor 2 rotates in positive direction, if connect two terminals of S3, the motor 2 will stop automatically.
When motor 2 rotates reversal direction, if connect two terminals of S4, the motor 2 will stop automatically.
