Two DC 12V Electric Linear Actuators Synchronous Control Kit 2000N 450 lbs

Note:
1) This product does not contain a mounting brackets. It compatible Bracket A and Bracket C, please click here to choose and buy.
2) You need to use a DC 12V 10A switching power supply to power this kit. This kit does not contain this power supply, please click here to buy.
3) If you need external limit switch for linear actuator, please click here to choose and buy.
4) If you want to extend the power cable of linear actuator, please click here to choose and buy.

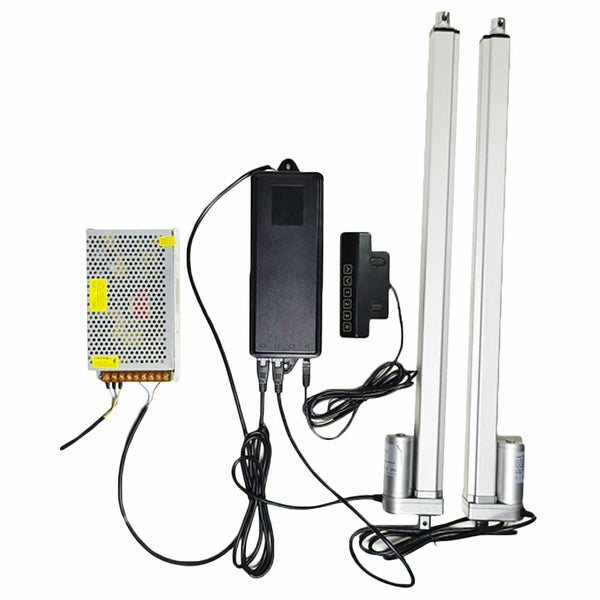

Package Include:

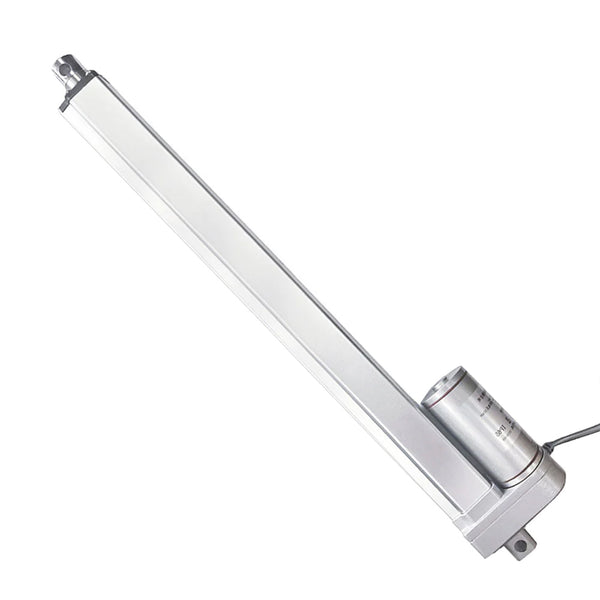

2 x Electric Linear Actuator A With Hall Effekt Sensor
1 x Synchronous Controller (Interlocking mode, One-Control-Two, For 2 Linear Actuators A)
1 x Touch Control Handle
1 x Remote Control
1 x User manual

The information for electric linear actuator:

Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, and other electrical equipment. It can open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.

Feature:
High-quality products and high-quality services
New housing design, high working stability
Metal housing, able to work in very harsh environments.
Metal gearbox, high strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 2000N / 200 Kgs / 450 lbs.
Multiple speed options, from 5 mm/second to 50 mm/second
Multiple stroke options, from 30 mm to 1000 mm
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Built-in Hall sensor, so you can use the synchronous controller to operate 2 linear actuators fully synchronously.
Automatically lock after stopping, and no power supply is required.
Maintenance-free

Specifications:
Optional working voltage: DC 12V
Stroke range: 1.2 ~ 40 inches or 30 ~ 1000 mm

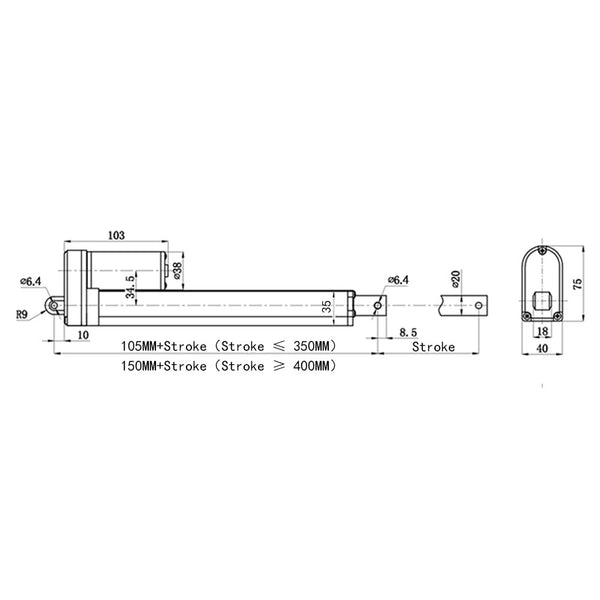

( If you want to view detailed information of linear actuators with different strokes, such as detailed drawings and dimensional drawings, please click the following link to view: electric linear actuators A )
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 30±5mm/s, 50±10mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max load capacity: 2000N / 200 Kgs / 450 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: 0.5~1A at 12V
Full load current: 3~6A at 12V
Please use a 12V/10A power supply to power the two linear actuators A.
Shaft diameter: 20mm
Mounting holes diameter: 6mm [0.236 in]
Housing material: Aluminum Alloy
Stroke rod material: Aluminum Alloy
Gear material: Steel Alloy
Motor type: Brushed DC Motor
Duty cycle: 20%, max 5mins continuous use
Service life: approx. 25,000 cycles

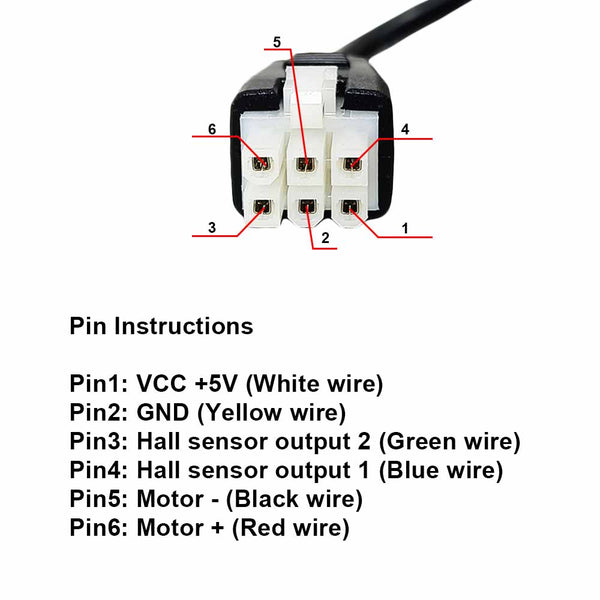

Power cable: Six-core Wire
Cable length: 2000±10%mm [80 in], the length can also be customized according to your specific needs.
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating noise: about 46dB~56dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP65

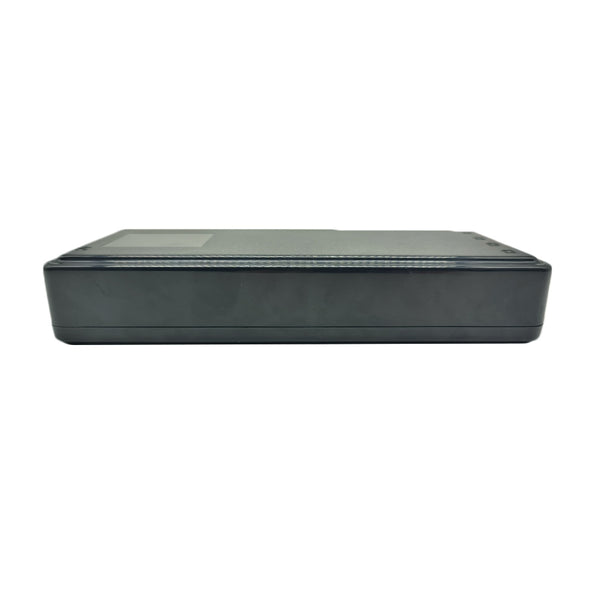

The information for synchronous controller:

Introduction:
If you want to use multiple linear actuators to raise and lower an equipment, for example two, three or four electric actuators. Since the high-speed DC motors in electric actuators cannot run at exactly the same speed, so the movement speed of the electric actuator will also be different. When multiple electric actuators work at the same time, their actual speeds cannot be exactly the same. In this case, we can use a synchronous controller to operate multiple linear actuators to rise or fall synchronously. They work completely in sync without any difference.

Working principle:
If you want to use a synchronization controller to operate 2, 3 or 4 linear actuators fully synchronously, you will need to add built-in Hall effect sensors for each linear actuator. And when you have purchased Hall effect sensors along with linear actuators, we will install Hall effect sensors in the linear actuators during production for you. When 2, 3 or 4 linear actuators are running together, Hall sensor will send Hall signals to the synchronization controller, and the controller will adjust the running speed of each linear actuator, so that all linear actuators run at the exact same speed.

Feature:
It can operate two electric linear actuators J to run completely synchronously.
Wired control via a touch control handle
Wireless control via a remote.
The LED display on the control handle will display the stroke position in real time.

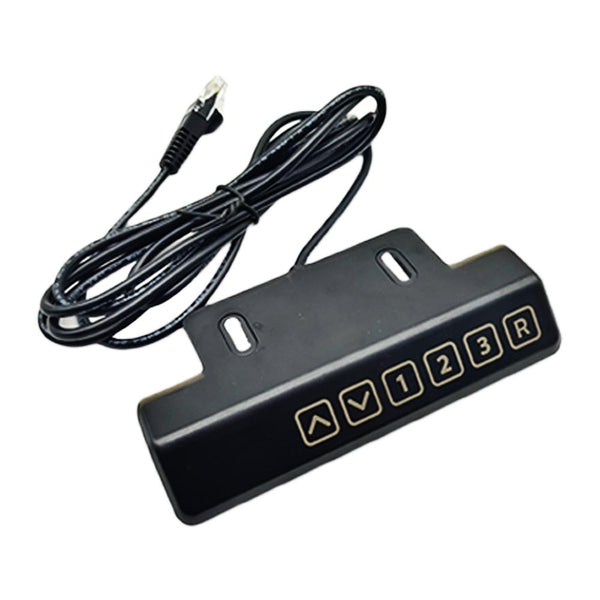

Six touch function buttons: ▲, ▼, 1, 2, 3 and R.
Buttons ▲ and ▼ are used to operate the linear actuators extension and retraction.
Buttons 1, 2 and 3 are used to automatically operate the linear actuators to three pre-memorized positions.
Button R is the reset button and is used to reset the system in case of an error.
With external limit switch control function.
When linear actuators move close to the end position, they will automatically slow down to protect themselves.
When linear actuators are fully retracted, they will retain 1MM of travel to protect themselves.

Parameters:
Working Voltage: 10~30 VDC, suitable for 12V or 24V linear actuator
Number of connecting linear actuators: 2
Maximum output current: 10A / channel
Working Frequency: 433.92 MHz
Control modes: Momentary mode
Working Distance: 30m / 90ft (theoretically)
Operating Temperature: -20°C ~ +70°C
Case size: 240 x 95 x 43 mm (9.4 x 3.7 x 1.7 inches)
Cable length of the touch control handle: 2000±10%mm [80 in]

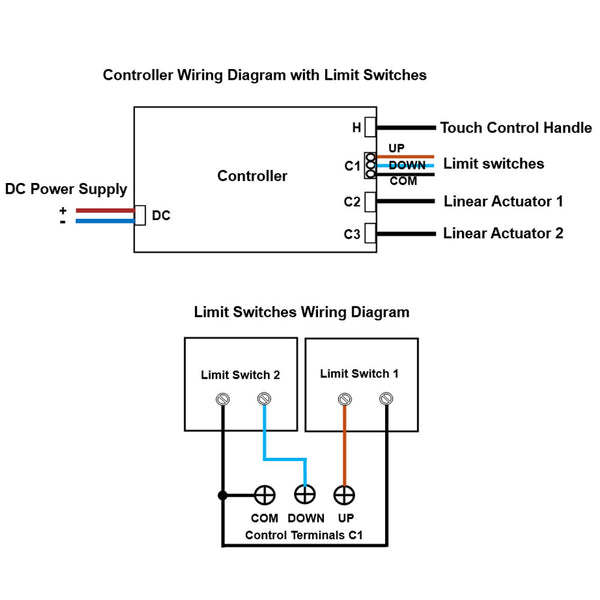

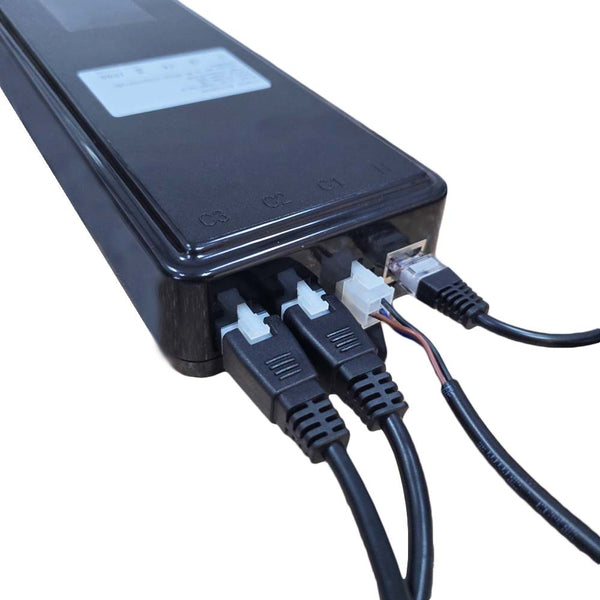

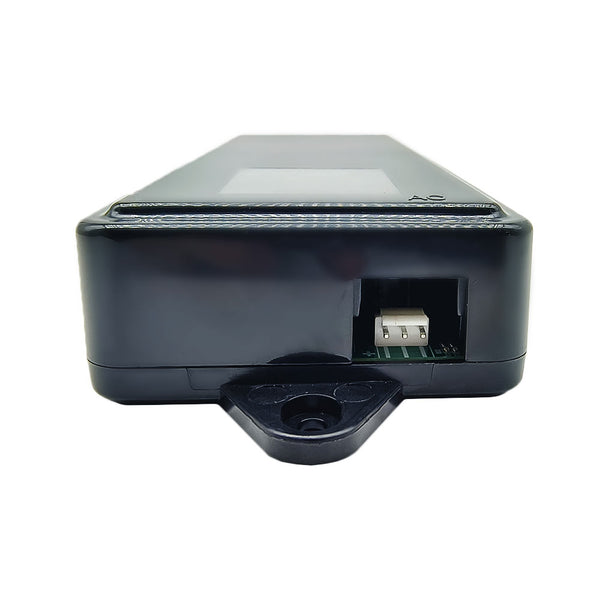

Connection:

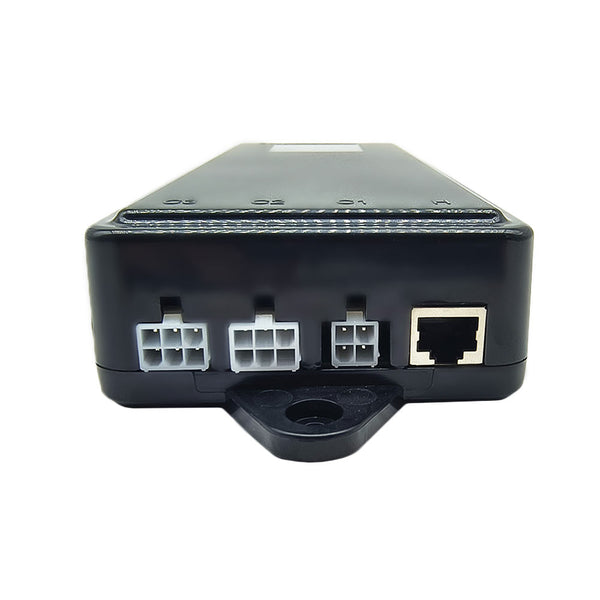

1) Plug the touch control handle into the ports H of the controller.
2) Plug two linear actuators into the ports C2 and C3 of the controller.
3) If you need to use the external limit switch control function, please connect the external limit switch to the C1 interface of the controller.
4) Connect the positive pole of DC power supply to the brown wire of the controller and connect the negative pole of DC power supply to the blue wire of the controller.
CAUTION: Do not connect AC power directly to the controller!

Operation:
1. Operation via the touch control handle:
Attention: The handle is operated by touch control. The touch sensitivity can be automatically calibrated when powered on for the first time. Hands are prohibited from touching the handle when powered on to prevent interference with the sensitivity calibration and affect the operating sensitivity.

1) Press and hold the ▲ button of the control handle, two linear actuators extend outward at the same time; Release the button, two linear actuators stop at the same time.
2) Press and hold the ▼ button of the control handle, two linear actuators retract inward at the same time; Release the button, two linear actuators stop at the same time.
3) Press any of the button 1, 2, or 3 on the control handle, two linear actuators will automatically move to the position memorized by that button and then automatically stop.
Note: You will need to first memorize three positions into these three buttons.
4) The LED display on the control handle will display the stroke position data in real time. For example, the number 03.5 means that the linear actuators have reached the stroke position of 35MM.

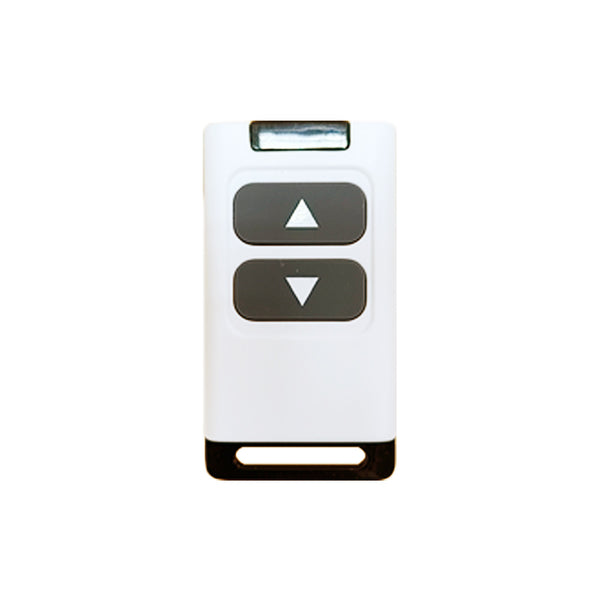

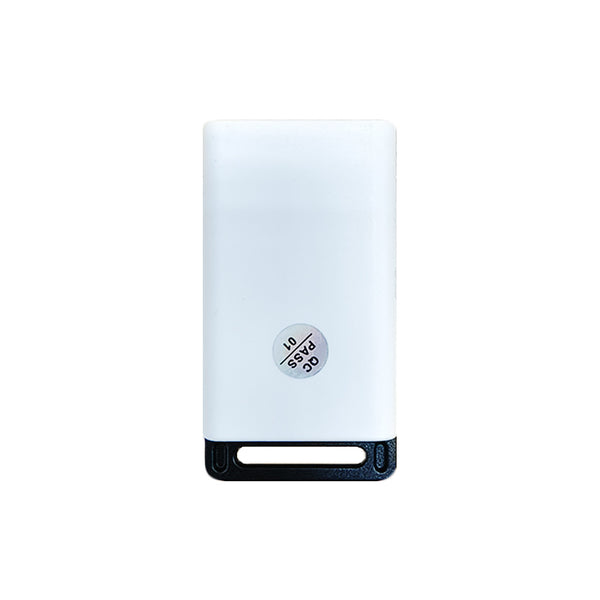

2. Operation via the remote control:
1) Press and hold the button ▲ of the remote control, two linear actuators extend out at the same time; Release the button, two linear actuators stop at the same time.
2) Press and hold the button ▼ of the remote control, two linear actuators retract inward at the same time; Release the button, two linear actuators stop at the same time.

External Limit switch control function:

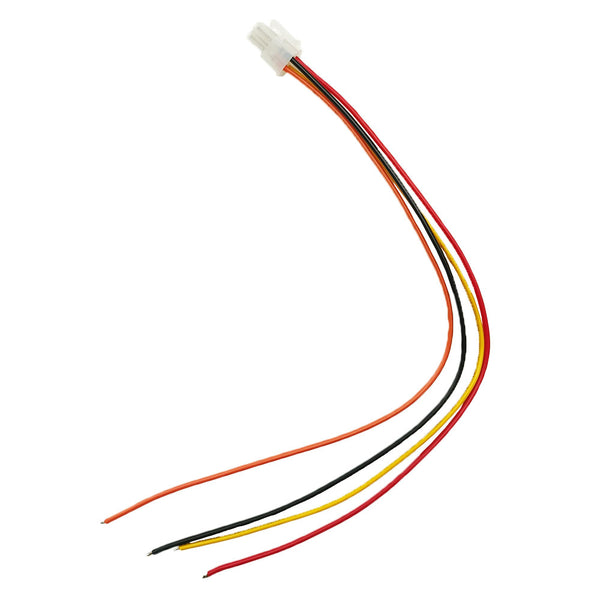

You can connect two external limit switches with normally open contact (such as model 0010010) to this controller and then automatically stop the linear actuators through it.
1) You can connect two limit switches, and each limit switch has two normally open terminals.
2) Connect a three-conductor cable to the controller's limit switch port C1, and this cable has three wires: UP, Down, and COM wire.
3) Connect two normally open terminals of a limit switch to terminals UP and COM, connect two normally open terminals of another limit switch to terminals DOWN and COM.

The operation:
1) When two linear actuators extend outward, if a limit switch is triggered, it will connect two terminals UP and COM, then two linear actuators will stop automatically.
2) When two linear actuators inward retract, if another limit switch is triggered, it will connect two terminals DOWN and COM, then two linear actuators will stop automatically.

How to memorize three stroke positions:
1) The controller can memorize total three stroke positions, and each button memorizes one stroke position.
2) First operate two linear actuators to the first suitable stroke position that you need to store, then press and hold the button 1 of the control handle for about 3 seconds, the stroke value on the LED display will flash. This means that the current stroke position is already stored in button 1.
3) You can continue to store the other two stroke positions into the button 2 and 3 by following the operation above.

Reset Function:
When the LED display on the control handle shows the fault code, you need to reset the system as follows.
Reset operation: Press and hold the R button of the control handle until all linear actuators are reset to the bottom, and the LED display on the control handle shows "00.1", then release the R button.

Production time:
The linear actuators are the customized products, and these products are not in stock, we need to spend 3~7 working days to produce them according to the specified parameters in your order.

Return or Exchange:
The Linear Actuators are the customized products, we need to produce them according to the specified parameters in your order, so that we do not accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.
