1 Channel AC Input Output Wireless RF Remote Control Switch Kit (Model: 0020031)

Regular price $36.00

Shipping calculated at checkout.
Package Include:
1 x Receiver: S1PXA-AC
1 x Transmitter: CQ-1 or CQ-2
1 x User manual

Application:
This AC 85V~240V power input output wireless remote control switch kit with RF transmitter and radio receiver.
The kit may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, etc.
It can long range remote control lamp, light, solar light, fan, motor, pump, solenoid valve, door lock, gates, etc.

Feature:
Wireless control, easy to install.
Universal Power Supply: AC 85V~240V.
DC Power Output: It can control DC equipment with voltage AC 85V~240V.
High Power: Each channel can work at maximum current 15A.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

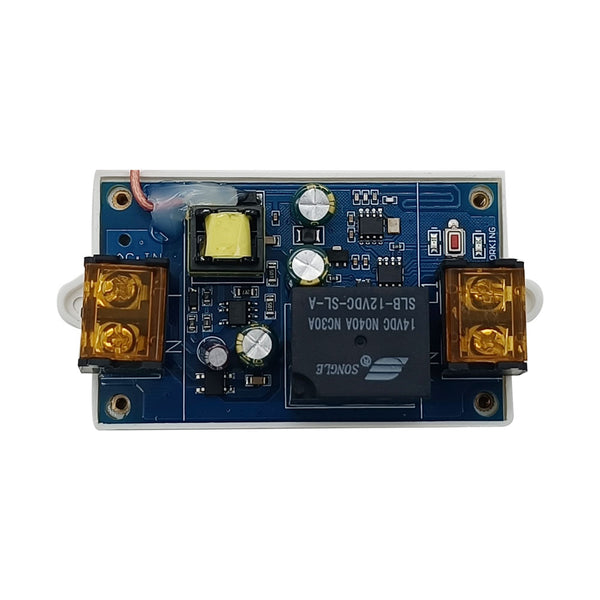

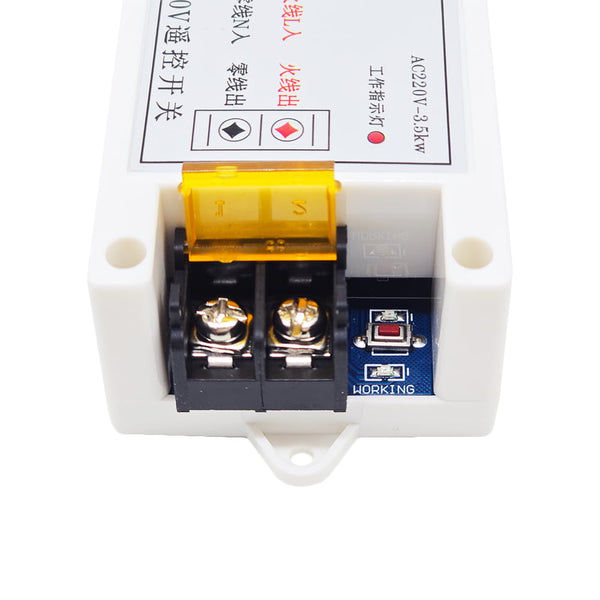

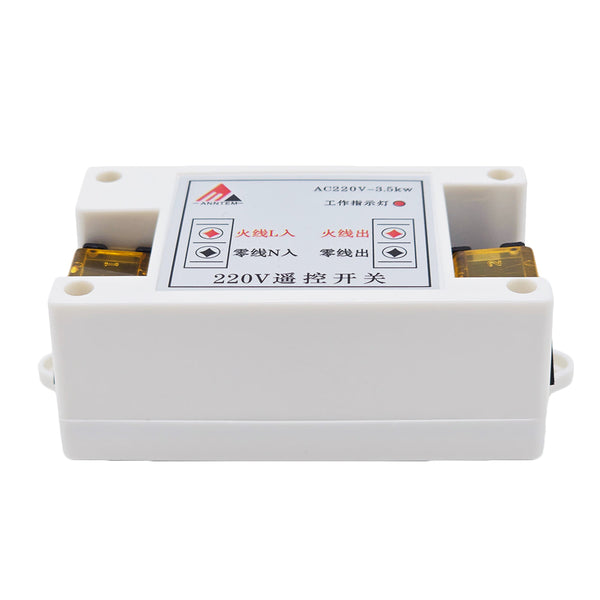

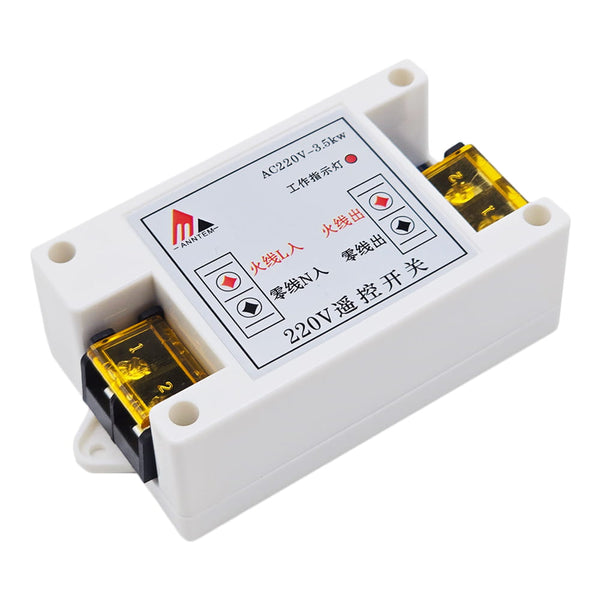

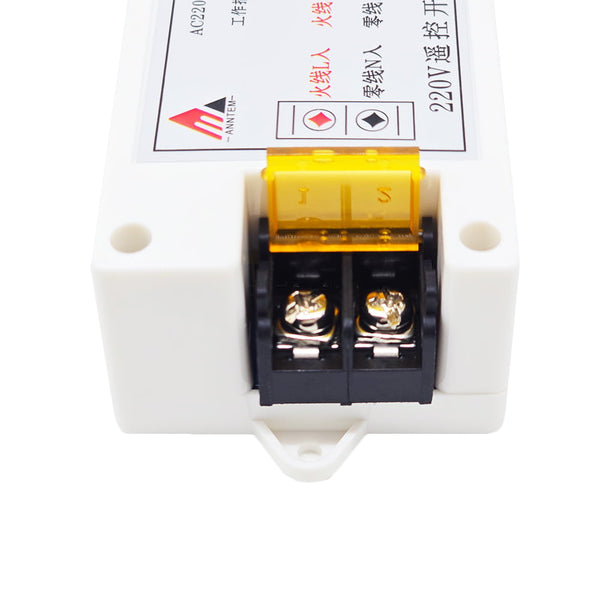

Receiver Parameters:
Model No.: S1PXA-AC
Power Supply (Operating Voltage): AC 85V~240V
Output: AC 85V~240V
Channel: 1 CH
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 15A
4 Control modes: Self-locking, Momentary, Interlocking, Delay
Working Frequency: 433.92 MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C
Case size: 96mm x 50mm x 33mm

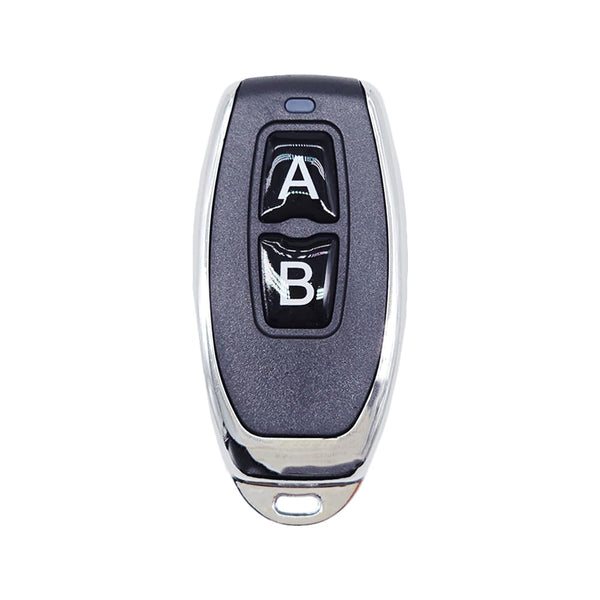

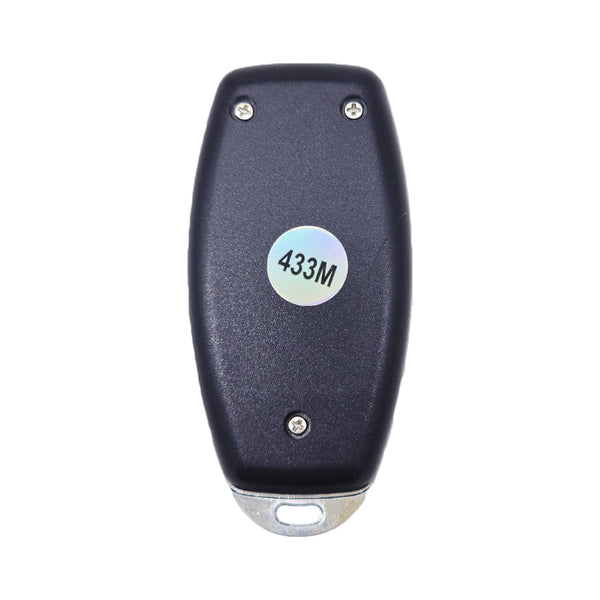

Transmitter Parameters:
Model No.: CQ-1 / CQ-2
Channel/Button: 1 (CQ-1) / 2 (CQ-2)
Button Symbol: No symbol (CQ-1) / "ON", "OFF" (CQ-2)
Operating Voltage: 6V (2 x CR2016 -3V button cell batteries, can be used for 12 months)
Operating Current: ≤12mA
Operating Frequency: 433Mhz
Encoding Chip: EV1527
Transmitting Distance: 50 meters / 150ft (theoretically)
Modulation Mode: ASK
Unit Size: 60mm x 31mm x 11mm

Matching Transmitters:
TThe receiver can work with different transmitters.
When you set the receiver in Self-locking mode or Momentary mode, it should work with single button transmitter, such as model C-1 (100 meters / 300 feet range)CP-1 (500 meters / 1500 feet range), or CB-1 (1000 meters / 3000 feet range).
When you set the receiver in Interlocking mode, it should work with two buttons transmitter, such as model C-2 (100 meters / 300 feet range)CP-2 (500 meters / 1500 feet range)CD-2 (Industrial, 1000 meters / 3000 feet range), or CB-2 (1000 meters / 3000 feet range).

Working Range:
With a transmitter (such as CQ-2) to form a complete set, the maximum working distance can reach 50 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-2 transmitter.

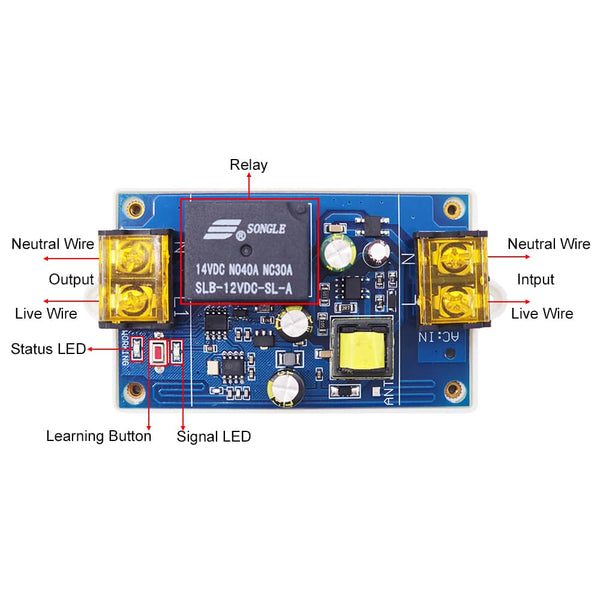

Usage:
The receiver can be used to control AC 85V~240V equipments.

Setting different control modes:
1) Setting Self-locking mode (with transmitter CQ-1): Press and hold the button of receiver until signal LED flashes 3 times, then release button.
Press button of the transmitter: The output terminals of the receiver outputs AC power, and the connected lamp is turned on.
Press button again: The output terminals of the receiver stops outputting AC power, and the connected lamp is turned off.

2) Setting Momentary mode (with transmitter CQ-1): Press and hold the button of receiver until signal LED flashes 2 times, then release button.
Press and hold button of the transmitter: The output terminals of the receiver outputs AC power, and the connected lamp is turned on.
Release button: The output terminals of the receiver stops outputting AC power, and the connected lamp is turned off.

3) Setting Interlocking mode (with transmitter CQ-2): Press and hold the button of receiver until signal LED flashes 1 time, then release button.
Press button "ON" of the transmitter: The output terminals of the receiver outputs AC power, and the connected lamp is turned on.
Press button "OFF" of the transmitter: The output terminals of the receiver stops outputting AC power, and the connected lamp is turned off.

4) Setting Delay mode (with transmitter CQ-1): Press and hold the button of receiver until signal LED flashes 1 time, then release button.
Press button of the transmitter: The output terminals of the receiver outputs AC power, and the connected lamp is turned on.
After 5 seconds: The output terminals of the receiver automatically stops outputting AC power, and the connected lamp is automatically turned off.
