1 Way 10A DC 6V 9V 12V 24V Output Wireless Remote Control Receiver Kit (Model: 0020424)

Regular price $44.00

Shipping calculated at checkout.

Application:
This wireless RF remote control switch (receiver) is an electric device with 1 channel DC power output, it and the transmitter form a radio transmitter and receiver system. This system may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, etc. It can long range remote control lamp/light, solar light, fan, motor, pump, solenoid valve, door lock, gates, etc.

Feature:
Wireless control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Four operating voltage versions: DC 6V, 9V, 12V, 24V optional.
DC Power Output: It can control DC equipment with voltage DC 6V, 9V, 12V or 24V.
With wired control terminals: You can connect sensors, limit switches, manual switches or external devices to control the receiver.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

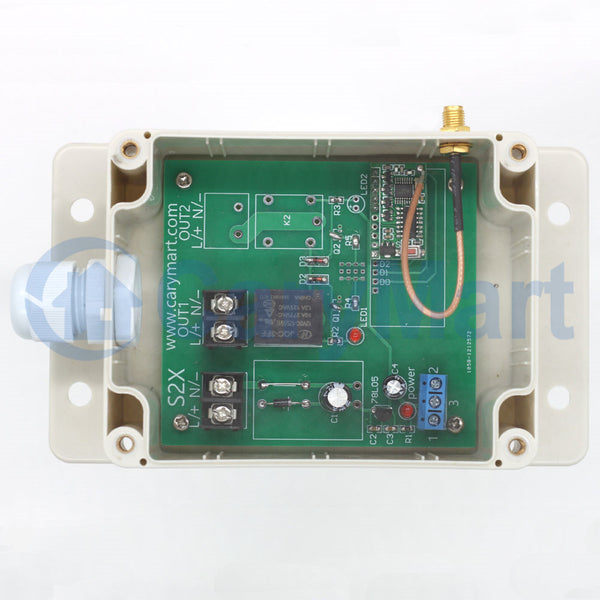

Receiver Parameters:
Model No.: S1X-DC
Power Supply (Operating Voltage): DC6V (S1X-DC06), DC12V±1V (S1X-DC12), DC9V±1V (S1X-DC09), DC24V±1V (S1X-DC24), the operating voltage must be specified when ordering.
Output: DC6V (S1X-DC06), DC12V (S1X-DC12), DC9V (S1X-DC09), DC24V (S1X-DC24)
Channel: 1 CH
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 10A
Selectable Modes: Self-locking, Momentary, Interlocking
Working Frequency: 433.92 MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C
PCB size: 90 x 59 x 18 mm (3.5 x 2.3 x 0.7 inches)
Case size: 100 x 68 x 50 mm (4.0 x 2.7 x 2.0 inches)

Transmitter Parameters:
Model No.: 0021000 (C-1) / 0021001 (C-2)
With Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide down the button will appear.
Channel/Button: 1 (C-1) / 2 (C-2)
Button Symbol: No symbol (C-1) / A, B (C-2)
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 6mA
Operating Frequency: 433.92 MHz
Transmitting Distance: 100m / 300ft (theoretically)
Modulation Mode: ASK
Unit Size: 58mm x 39mm x 16mm

Matching Transmitters:
The receiver can work with different transmitters, such as model C-1 / C-2 (100 Meter / 300 feet range), CP-1 / CP-2 (500 Meter / 1500 feet range), or CB-1 / CB-2 (1000 Meter / 3000 feet range).
When you set the receiver in Self-locking mode or Momentary mode, it should work with single button transmitter, such as model C-1, CP-1, or CB-1.
When you set the receiver in Interlocking mode, it should work with two buttons transmitter, such as model C-2, CP-2, or CB-2.

Working Range:
With a transmitter (such as C-2) to form a complete set, the maximum working distance can reach 100M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can use a powerful transmitter, such as CB-1 or CB-2 transmitter.

Usage:

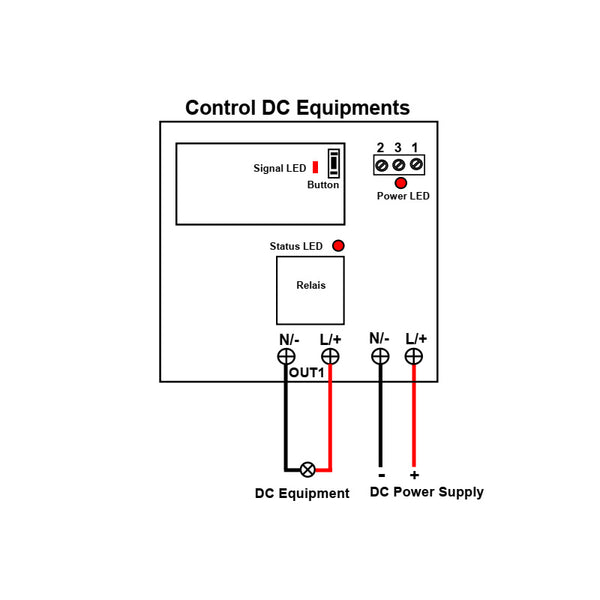

The receiver can be used to control DC 6V / 9V / 12V / 24V equipments. If the power supply of those equipments is DC 12V, you should choose the receiver with same DC 12V version; and if the power supply of those equipments is DC 24V, you should choose the receiver with same DC 24V version.

Setting different control modes:
1) Setting control mode Self-locking: Only connect Jumper-2.
Control mode Self-locking (with the transmitter C-1): Press -> On; Press again -> Off.
Press button of the transmitter: The lamp connected to the receiver is turned on.
Press button of the transmitter again: The lamp connected to the receiver is turned off.

2) Setting control mode Momentary: Only connect Jumper-1.
Control mode Momentary (with the transmitter C-1): Press and hold -> On; Release -> Off.
Press and hold button of the transmitter: The lamp connected to the receiver is turned on.
Release the button of the transmitter: The lamp connected to the receiver is turned off.

3) Setting control mode Interlocking: Disconnect Jumper-1 and Jumper-2.
Control mode Interlocking (with the transmitter C-2): Press button 1-> On, other relays Off; Press button 2 -> Off.
Press button A of the transmitter: The lamp connected to the receiver is turned on.
Press button B of the transmitter: The lamp connected to the receiver is turned off.

Wired control terminals:
The receiver has wired control terminals, you can connect external devices, sensors, limit switches or manual switches to trigger the receiver.

1) By low level signal:
You can connect external devices (with low level output signal) to trigger the receiver.
When external device outputs low level signal to terminals 1 (Signal +) and terminal 3 (Signal -), terminal of OUT 1 output DC power, and the lamp is turned on.
When external device stops to output signal, terminal of OUT 1 stop outputting, and the lamp is turned off.

2) By NO/NC contact:
You can connect manual switches (with NO/NC contact) to trigger the receiver.
When connect terminals 1 and 3 by manual switch, terminal of OUT 1 output DC power, and the lamp is turned on.
When disconnect terminals 1 and 3 by manual switch, terminal of OUT 1 stop outputting, and the lamp is turned off.

Package Include:
1 x Receiver: S1X-DC-ANT3
2 x Transmitter: C-1 or C-2
1 x User manual
