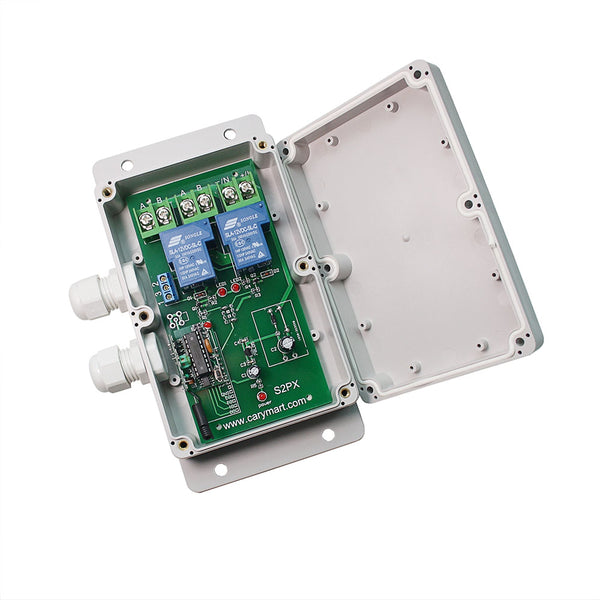

2 CH 30A DC Output RF Wireless Switch With Remote Control (Model: 0020530)

Regular price $74.00

Shipping calculated at checkout.

Application:
This wireless RF remote control switch (receiver) is an electric device with 2 channel DC power output, it and the transmitter form a radio transmitter and receiver system. This system may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, etc. It can long range remote control lamp/light, solar light, fan, motor, pump, solenoid valve, door lock, gates, etc.

Feature:
Wireless control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Four operating voltage versions: DC 6V, 9V, 12V, 24V optional.
DC Power Output: It can control DC equipment with voltage DC 6V, 9V, 12V or 24V.
High Power: Each channel can work at maximum current 30A
With wired control terminals: You can connect sensors, limit switches, manual switches or external devices to control the receiver.

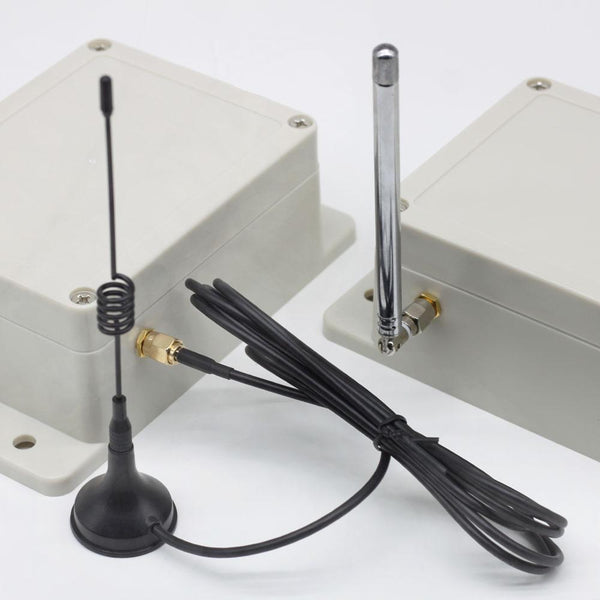

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

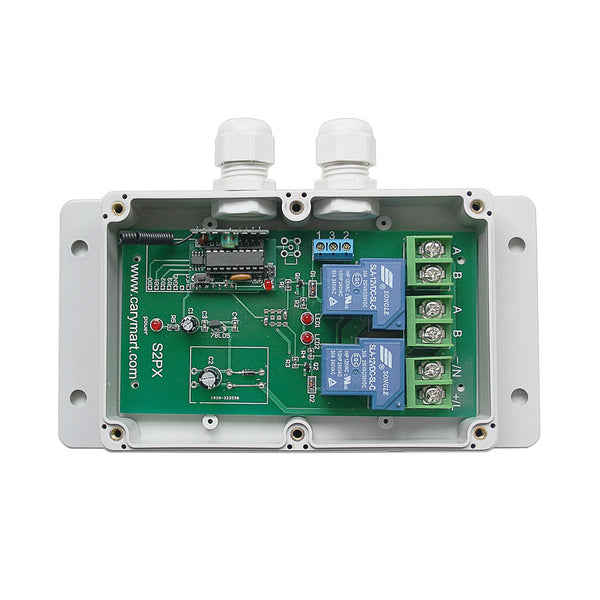

Receiver Parameters:
Model No.: S2PX-DC
Power Supply (Operating Voltage): DC6V (S2PX-DC06), DC12V±1V (S2PX-DC12), DC9V±1V (S2PX-DC09), DC24V±1V (S2PX-DC24), the operating voltage must be specified when ordering.
Output: DC6V (S2PX-DC06), DC12V (S2PX-DC12), DC9V (S2PX-DC09), DC24V (S2PX-DC24)
Channel: 2 CH
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 30A
Selectable Modes: Self-locking, Momentary, Interlocking
Working Frequency: 433.92 MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C
PCB size: 140mm x 73mm x 18mm
Case size: 192mm x 100mm x 45mm

Transmitter Parameters:
Model No.: 0021001 (C-2)

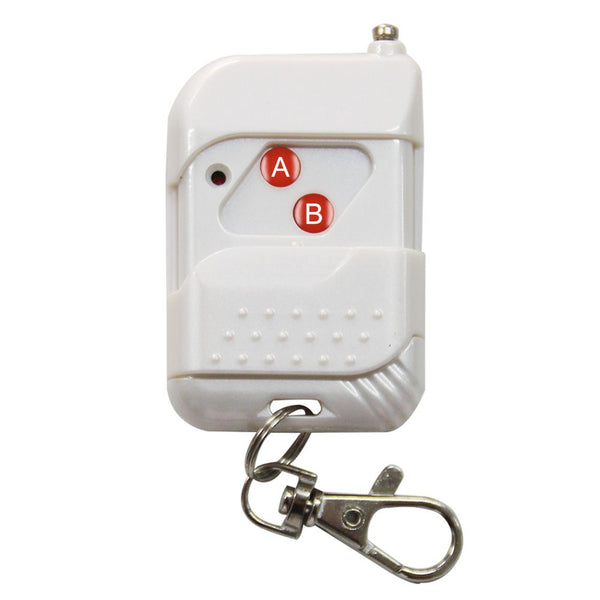

With Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide down the button will appear.
Channel/Button: 2
Button Symbol: A, B
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 6mA
Operating Frequency: 433.92 MHz
Transmitting Distance: 100m / 300ft (theoretically)
Modulation Mode: ASK
Unit Size: 58mm x 39mm x 16mm

Matching Transmitters:
The receiver can work with different transmitters, such as model C-2 (100 Meter / 300 feet range), CP-2 (500 Meter / 1500 feet range), or CB-2 (1000 Meter / 3000 feet range).

Working Range:
With a transmitter (such as C-2) to form a complete set, the maximum working distance can reach 100M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can use a powerful transmitter, such as CB-2 transmitter.

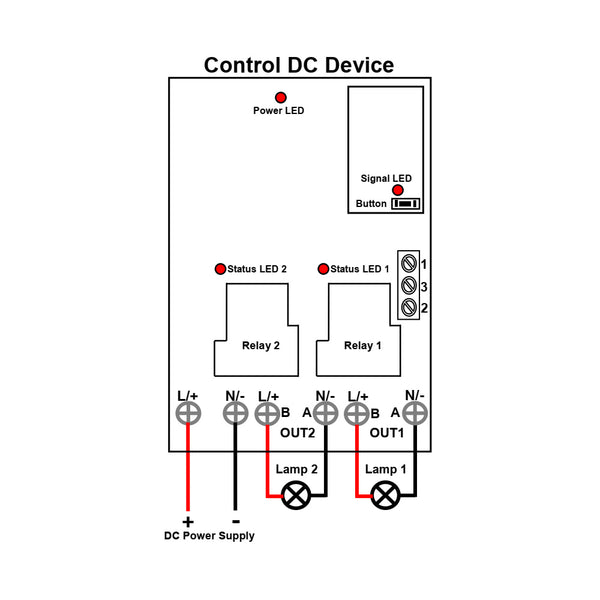

Usage:
The receiver can be used to control DC 6V / 9V / 12V / 24V equipments. If the power supply of those equipments is DC 12V, you should choose the receiver with same DC 12V version; and if the power supply of those equipments is DC 24V, you should choose the receiver with same DC 24V version.

Setting different control modes:
1) Setting control mode Self-locking (with the transmitter C-2): Only connect Jumper-2.
Press button A: Turn on the relay 1, terminal OUT 1 outputs DC power, the lamp 1 is turned on.
Press button A again: Turn off the relay 1, terminal OUT 1 no output, the lamp 1 is turned off.
Press button B: Turn on the relay 2, terminal OUT 2 outputs DC power, the lamp 2 is turned on.
Press button B again: Turn off the relay 2, terminal OUT 2 no output, the lamp 2 is turned off.

2) Setting control mode Momentary (with the transmitter C-2): Only connect Jumper-1.
Press and hold button A: Turn on the relay 1, terminal OUT 1 outputs DC power, the lamp 1 is turned on.
Release button A: Turn off the relay 1, terminal OUT 1 no output, the lamp 1 is turned off.
Press and hold button B: Turn on the relay 2, terminal OUT 2 outputs DC power, the lamp 2 is turned on.
Release button B: Turn off the relay 2, terminal OUT 2 no output, the lamp 2 is turned off.

3) Setting control mode Interlocking (with the transmitter C-3): Do not connect Jumper-1 and Jumper-2.
Press button A: Turn on the relay 1, terminal OUT 1 outputs DC power, the lamp 1 is turned on.
Turn off the relay 2, terminal OUT 2 no output, the lamp 2 is turned off.
Press button B: Turn on the relay 2, terminal OUT 2 outputs DC power, the lamp 2 is turned on.
Turn off the relay 1, terminal OUT 1 no output, the lamp 1 is turned off.
Press button C: Turn off the relay 2, terminal OUT 2 no output, the lamp 2 is turned off.

4) Setting control mode Momentary + Self-locking (with the transmitter C-2): Connect Jumper-1 and Jumper-2.
Control mode Momentary (Channel 1):
Press and hold button A: Turn on the relay 1, terminal OUT 1 outputs DC power, the lamp 1 is turned on.
Release button A: Turn off the relay 1, terminal OUT 1 no output, the lamp 1 is turned off.
Control mode Self-locking (Channel 2):
Press button B: Turn on the relay 2, terminal OUT 2 outputs DC power, the lamp 2 is turned on.
Press button B again: Turn off the relay 2, terminal OUT 2 no output, the lamp 2 is turned off.

Wired control terminals:
The receiver has manual control terminals, you can connect external devices, sensors, or manual switches to control the receiver.
1) Signal input:
You can connect external devices (with low level output signal) to manual terminals 1 (Signal 1 “+”), terminal 2 (Signal 2 “+”) and 3 (Signal “-“) , then the external device’s output signal can control the receiver.
When the external device outputs low level signal to manual terminal 1 (Signal 1 “+”) and 3 (Signal “-“), terminals A and B of OUT1 outputs DC power. And when disconnect manual terminals 1 (Signal 1 “+”) and 3 (Signal “-“), terminals A and B of OUT1 stop outputting.
When the external device outputs low level signal to manual terminal 2 (Signal 2 “+”) and 3 (Signal “-“), Terminals A and B of OUT2 outputs DC power. And when disconnect manual terminals 2 (Signal 2 “+”) and 3 (Signal “-“), terminals A and B of OUT2 stop outputting.

2) The manual switches:
You can connect one manual switch to manual terminals 1, 2, 3, then you can use this manual switch to control the receiver.
When connect terminals 1 and 3, terminals A and B of OUT1 outputs DC power. And when disconnect terminals 1 and 3, terminals A and B of OUT1 stop outputting.
When connect terminals 2 and 3, terminals A and B of OUT2 outputs DC power. And when disconnect terminals 2 and 3, terminals A and B of OUT2 stop outputting.

Package Include:
1 x Receiver: S2PX-DC-ANT3
2 x Transmitter: C-2
1 x User manual
