Package Include:
1 x Receiver: S2PX-DC-ANT3
1 x User manual
Application:
It can long range remote control DC equipments, such as lamp, light, solar light, LED lighting, fan, motor, pump, solenoid valve, door lock, gates, etc.
Feature:
Wireless control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Four operating voltage versions: DC 6V, 9V, 12V, 24V optional.
DC Power Output: It can control DC equipment with voltage DC 6V, 9V, 12V or 24V.
High Power: Each channel can work at maximum current 30A

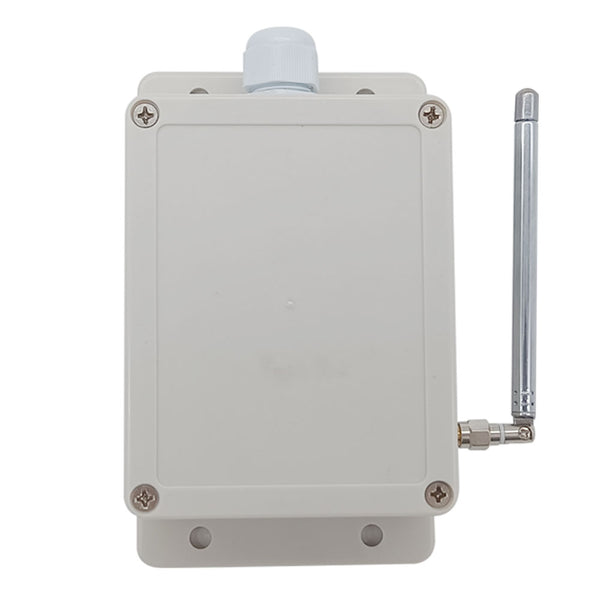

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model No.: S2PX-DC
Power Supply (Operating Voltage): DC6V (S2PX-DC06), DC12V±1V (S2PX-DC12), DC9V±1V (S2PX-DC09), DC24V±1V (S2PX-DC24), the operating voltage must be specified when ordering.
Output: DC6V (S2PX-DC06), DC12V (S2PX-DC12), DC9V (S2PX-DC09), DC24V (S2PX-DC24)
Channel: 2 Way
3 Control modes: Self-locking, Momentary, Interlocking
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 30A / each channel
Working Frequency: 433.92 MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C

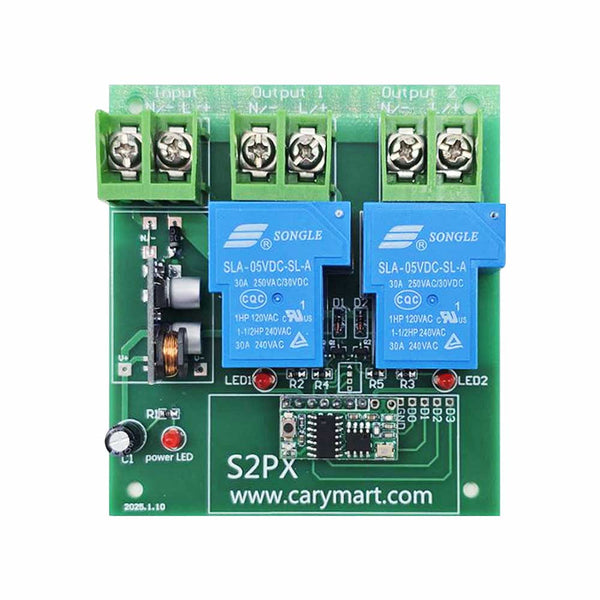

PCB size: 140mm x 73mm x 18mm

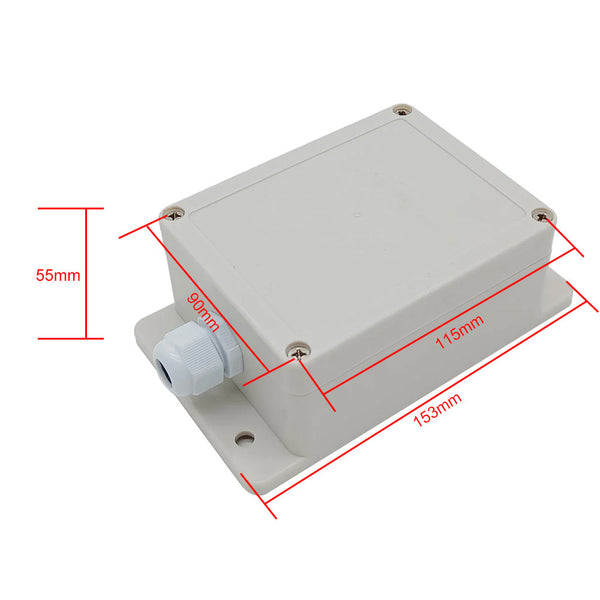

Case size: 192mm x 100mm x 45mm
Matching Transmitters:
The receiver can work with different transmitters, such as model C-2 (100 Meters / 300 ft range), CP-2 (500 Meters / 1500 ft range), CD-2 (Waterproof, 1000 Meters / 3000 ft range), or CB-2 (1000 Meters / 3000 ft range).
Working Range:
With a transmitter (such as C-2) to form a complete set, the maximum working distance can reach 100 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
IIf you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-2 transmitter.
Usage:
The receiver can be used to control DC 6V / 9V / 12V / 24V equipments. If the power supply of those equipments is DC 12V, you should choose the receiver with same DC 12V version; and if the power supply of those equipments is DC 24V, you should choose the receiver with same DC 24V version.
Wiring:
1) Connect the positive pole of DC device to output terminal "L/+" of receiver;
2) Connect the negative pole of DC device to output terminal "N/-" of receiver;
3) Connect the positive pole of DC power supply to input terminal "L/+" of receiver;
4) Connect the negative pole of DC power supply to input terminal "N/-" of receiver.
Setting different control modes:
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter C-2:
Press and hold the button A on the transmitter: The OUT1 terminals "A" and "B" on the receiver outputs DC power, and the connected lamp 1 is turned on.
Release the button A: The OUT1 terminals "A" and "B" on the receiver stops outputting, and the connected lamp 1 is turned off.
Press and hold the button B on the transmitter: The OUT2 terminals "A" and "B" on the receiver outputs DC power, and the connected lamp 2 is turned on.
Release the button B: The OUT2 terminals "A" and "B" on the receiver stops outputting, and the connected lamp 2 is turned off.
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter C-2:
Press the button A on the transmitter: The OUT1 terminals "A" and "B" on the receiver outputs DC power, and the connected lamp 1 is turned on.
Press the button A again: The OUT1 terminals "A" and "B" on the receiver stops outputting, and the connected lamp 1 is turned off.
Press the button B on the transmitter: The OUT2 terminals "A" and "B" on the receiver outputs DC power, and the connected lamp 2 is turned on.
Press the button B again: The OUT2 terminals "A" and "B" on the receiver stops outputting, and the connected lamp 2 is turned off.
3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
The operation of Interlocking mode with the transmitter C-2:
Press the button A on the transmitter: The OUT1 terminals "A" and "B" on the receiver outputs DC power, and the connected lamp 1 is turned on; The OUT2 terminals "A" and "B" on the receiver stops outputting, and the connected lamp 2 is turned off.
Press the button B on the transmitter: The OUT2 terminals "A" and "B" on the receiver outputs DC power, and the connected lamp 2 is turned on; The OUT1 terminals "A" and "B" on the receiver stops outputting, and the connected lamp 1 is turned off.
