Package Include:
1 x Receiver: S2PX-AC-ANT3
1 x Transmitter: CB-2 or CB-3
1 x User manual
Application:
For long range remote control AC electrical equipments, such as lamps, lights, LED lighting, motors, fans, pump, solenoid valves, etc.
Feature:
Wireless remote control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support 110V AC (100V~120V) used in US, CA, etc, and 220V AC (200V~240V) used in DE, UK, FR, etc.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model No.: S2PX-AC-ANT3
Operating Voltage: Compatible with AC 100~240V
Output Type: AC power output, same as input voltage.
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 30A / channel
Channel: 2 Way
3 Selectable Modes: Self-locking, Momentary, Interlocking
Working Frequency: 433MHz
Operating Temperature: -20°C ~ +70°C
PCB size: 88 x 80 x 18 mm
Case size: 153 x 90 x 55 mm
Transmitter Parameters:
Model No.: 0021024 (CB-2) / 0021025 (CB-3)
Channel/Button: 2 (CB-2) / 3 (CB-3)
Button Symbol: A, B (CB-2) / A, B, C (CB-3)
Operating Voltage: 9V (1 x 6F22 -9V battery)
Operating Current: 30mA
Operating Frequency: 433MHz
Transmitting Distance: 1000 meters / 3000ft (theoretically)
It has an on / off button on the side.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: Unit Size: 135 x 42 x 25 mm
Applicable Transmitters:
The receiver can work with different transmitters.
When you set the receiver in Self-locking mode or Momentary mode, it should work with two buttons transmitter, such as model C-2 (100 meters / 300 feet range), CP-2 (500 meters / 1500 feet range), CD-2 (Industrial, 1000 meters / 3000 feet range), and CB-2 (1000 meters / 3000 feet range).
When you set the receiver in Interlocking mode, it should work with three buttons transmitter, such as model C-3 (100 Meter / 300 feet range), and CB-3 (1000 Meter / 3000 feet range).
Working Range:
With a transmitter (such as CB-2) to form a complete set, the maximum working distance can reach 2000 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can replace external antenna of the receiver.
Usage:
The receiver can be used to control AC 110~240V (110V/120V/220V/240V) equipments.

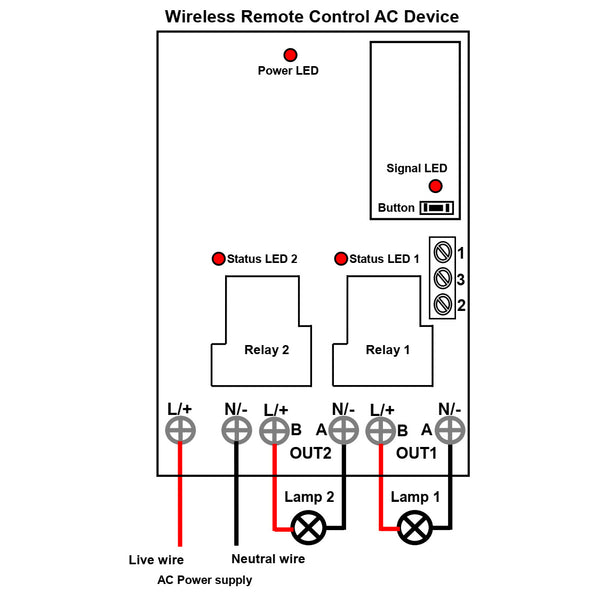

Wiring:
1) Connect the live wire of the AC device to the output terminal "L/+" of the receiver;
2) Connect the neutral wire of the AC device to the output terminal "N/-" of the receiver;
3) Connect the live wire of the AC power supply to the input terminal "L/+" of the receiver;
4) Connect the neutral wire of the AC power supply to the input terminal "N/-" of the receiver.
Setting different control modes:
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter CB-2:
Press and hold the button A on the transmitter: The output terminal "Output1" of the receiver outputs AC power, and the connected lamp 1 is turned on.
Release the button A: The output terminal "Output1" of the receiver stops outputting, and the connected lamp 1 is turned off.
Press and hold the button B on the transmitter: The output terminal "Output2" of the receiver outputs AC power, and the connected lamp 2 is turned on.
Release the button B: The output terminal "Output2" of the receiver stops outputting, and the connected lamp 2 is turned off.
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter CB-2:
Press the button A on the transmitter: The output terminal "Output1" of the receiver outputs AC power, and the connected lamp 1 is turned on.
Press the button A again: The output terminal "Output1" of the receiver stops outputting, and the connected lamp 1 is turned off
Press the button B on the transmitter: The output terminal "Output2" of the receiver outputs AC power, and the connected lamp 2 is turned on.
Press the button B again: The output terminal "Output2" of the receiver stops outputting, and the connected lamp 2 is turned off.
3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
The operation of Interlocking mode with the transmitter CB-3:
Press the button A on the transmitter: The output terminal "Output1" of the receiver outputs AC power, and the connected lamp 1 is turned on.
Press the button C on the transmitter: The output terminal "Output1" of the receiver stops outputting, and the connected lamp 1 is turned off.
Press the button B on the transmitter: The output terminal "Output2" of the receiver outputs AC power, and the connected lamp 2 is turned on.
Press the button C on the transmitter: The output terminal "Output2" of the receiver stops outputting, and the connected lamp 2 is turned off.
