Wireless Remote Control AC Solenoid Valve with RF Transmitter and Receiver (Model: 0020567)

Regular price $62.00

Shipping calculated at checkout.

Package Include:
1 x Receiver: S1X-AC
2 x Transmitter: C-2
1 x Electric solenoid valve
1 x AC power plug with cable
1 x User manual

Application:
This wireless remote control electric solenoid valve kit with AC power output radio receiver, RF transmitter, and 110V or 220V solenoid valve.
The kit can long range control garden watering, garden drip irrigation, agricultural irrigation, liquid, gas, air, water, diesel, gasoline, low viscosity fluids, etc.

Feature:
Wireless control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support voltage of AC110V (100V~120V), widely used in US, Canada... and voltage of AC220V (200V~240V), used in UK, France...
AC Power Output: It can control AC equipment with voltage 110V / 120V / 220V / 240V AC.
You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With reverse power protection and over current protection.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

Receiver Parameters:
Model No.: S1X-AC
Operating Voltage: 100~240VAC (110V/120V/220V/240V)
Output Type: 100~240VAC (110V/120V/220V/240V)
Channel: 1 Way
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 10A
3 Control modes: Self-locking, Momentary, and Interlocking
Working Frequency: 433.92 MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C
PCB size: 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches)
Case size: 115 x 90 x 55 mm (4.5 x 3.6 x 2.2 inches)

Transmitter Parameters:
Model No.: 0021001 (C-2)
With Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide down the button will appear.
Channel/Button: 2
Button Symbol: A, B
Operating Voltage: 12V (1 x 23A -12V battery)
Operating Current: 6mA
Operating Frequency: 433 MHz
Transmitting Distance: 100 meters / 300ft (theoretically)
Modulation Mode: ASK
Unit Size: 58mm x 39mm x 16mm

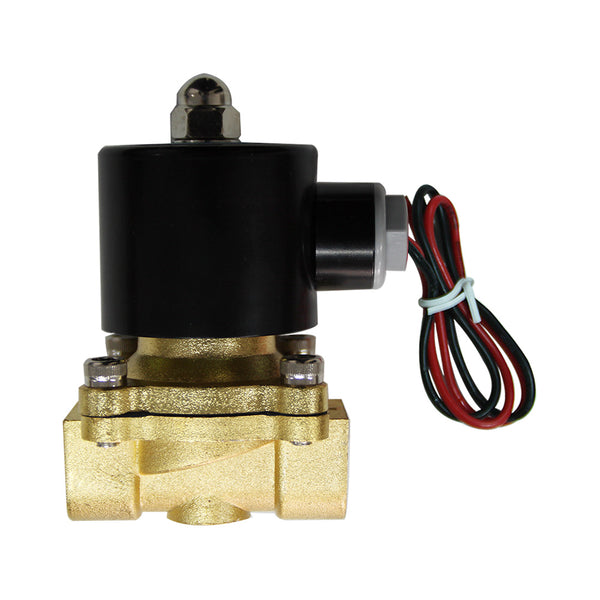

Solenoid Valve Parameters:
Working Voltage: AC 110V, 220V optional
Power: 24W
Pipe size: 1/8 ",1/4 ", 3/8 ",1/2", 3/4 ", 1", 1.2", 1.5", 2" optional
Thread type: G1/8 ", G1/4 ", G3/8 ", G1/2", G3/4 ", G1", G1.2", G1.5", G2", optional
Internal diameter: 9MM, 12MM, 15MM, 20MM, 25MM, 32MM, 40MM, 45MM, 58MM optional
Solenoid valve type: Normally Closed (power on, solenoid valve open; power off, solenoid valve close)
Working Temperature: -10°C to +100°C
Operating Pressure: 0~1.0Mpa (0~10kg/cm²)
Material of valve body and coil: 100% Brass

Matching Transmitters:
The receiver can work with different transmitters, such as model C-2 (100 meters / 300 feet range)CP-2 (500 meters / 1500 feet range)CD-2 (Industrial, 1000 meters / 3000 feet range), or CB-2 (1000 meters / 3000 feet range).

Working Range:
With a transmitter (such as C-2) to form a complete set, the maximum working distance can reach 100 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-2 transmitter.

Setting different control modes:
1) Setting Interlocking mode (work with transmitter C-2): Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
Press button A of the transmitter: The terminals "OUT1" on the receiver outputs AC power, and the connected solenoid valve works.
Press button B of the transmitter: The terminals "OUT1" on the receiver stops outputting AC power, and the connected solenoid valve stops working.

2) Setting Self-locking mode (work with transmitter C-2): Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
Press button A of the transmitter: The terminals "OUT1" on the receiver outputs AC power, and the connected solenoid valve works.
Press button A of the transmitter again: The terminals "OUT1" on the receiver stops outputting AC power, and the connected solenoid valve stops working.

3) Setting Momentary mode (work with transmitter C-2): Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
Press and hold button A of the transmitter: The terminals "OUT1" on the receiver outputs AC power, and the connected solenoid valve works.
Release button A of the transmitter: The terminals "OUT1" on the receiver stops outputting AC power, and the connected solenoid valve stops working.
