Note:

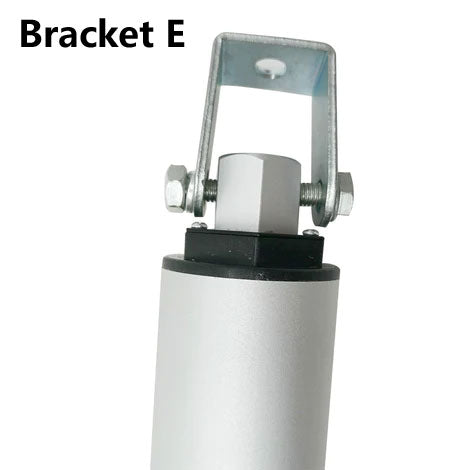

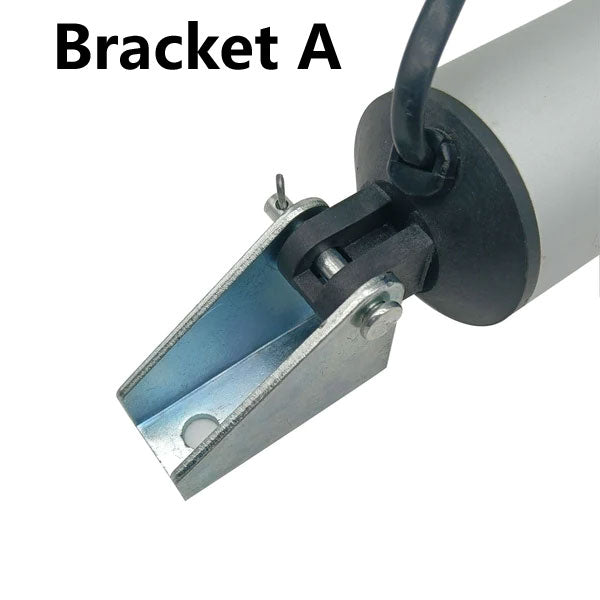

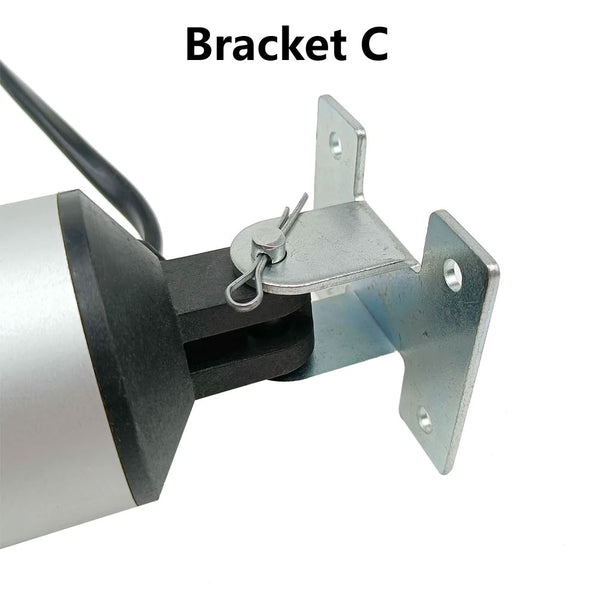

1) This product does not contain a mounting brackets. It compatible Bracket E for the head and bracket A or bracket C for the bottom, please click here to choose and buy.
2) If you need DC power supply for linear actuator, please click here to choose and buy.
3) If you need external limit switch for linear actuator, please click here to choose and buy.
4) If you need manual control switch for linear actuator, please click here to choose and buy.
5) If you need wireless remote control switch kit for linear actuator, please click here to choose and buy.
Feature:
Mainly used for doors, windows, cellars, trapdoors, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs and other electrical equipment. It can open, close, push, pull, lift and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.
Feature:
High-quality products and high-quality services
Metal housing, able to work in very harsh environments
High strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Automatically lock after stopping, and no power supply is required.
Maintenance-free
Specifications:
Optional working voltage: DC 12V or DC 24V
Stroke: 2 inches or 50 mm
Optional speed: 45±5mm/s, 80±10mm/s, 140±15mm/s, 230±25mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max Load capacity: 200N / 20 Kgs / 40 lbs at 45mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: about 1.5A
Max load current: about 3-6A
Please use a 12V/10A or 24V/5A power supply to power a linear actuator, or use a 12V/20A or 24V/10A power supply to power two linear actuators, or use a 12V/50A or 24V/25A power supply to power four linear actuators.

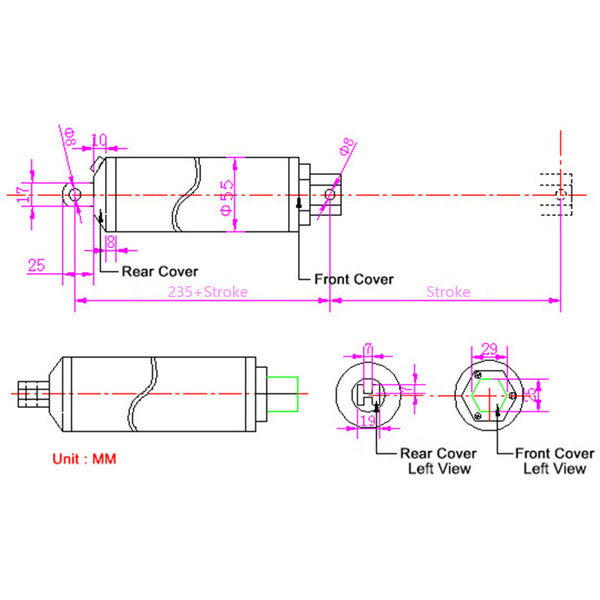

Outer tube diameter: 55mm
Shaft diameter: 28mm
Mounting holes diameter: 8mm
Housing Material: Aluminum Alloy
Stroke Rod Material: Aluminum Alloy
Gear Material: Polymer Plastic
Motor Type: Brushed DC Motor
Duty Cycle: 20%, Max 2mins continuous use
Plug Standard: Ordinary Two-core Wire
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating Noise: about 46dB~52dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP54, not suitable for outdoor use.
Operation:
When linear actuator is connected to DC power supply, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.
The direction of movement of the stroke rod can be changed by switching the polarity of DC power supply.
| Different no-load speeds and corresponding maximum thrust | ||||
| No-load Speed | 45mm/s | 80mm/s | 140mm/s | 230mm/s |
| Maximum Thrust | 200N / 40 lbs / 20kg | 100N / 20 lbs / 10kg | 70N / 14 lbs / 7 kg | 50N / 10 lbs / 5 kg |
Production time:
The linear actuators are the customized products, and these products are not in stock, we need to spend 9~12 working days to produce them according to the specified parameters in your order.
Return or Exchange:
The Linear Actuators are the customized products, we need to produce them according to the specified parameters in your order, so that we do not accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.
