DC 12V 24V Remote Control Switch Kit with 16 Channel Relay Output (Model: 0020089)

Regular price $75.00

Shipping calculated at checkout.

Application:
This wireless switch or radio receiver is an electric device with 16 channels dry relay output (Normally open and normally closed), it and the transmitter form a receiver transmitter system. This kit may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, aerial vehicle, etc. It can remote control equipment on land, water and air, such as remote control of lights, sirens, locks, motors, pumps, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, and business signs. The applications are endless.

Feature:
Wireless control, easy to install.
Power Supply: 2 working voltage versions, DC 12V, 24V.
Relay Output: This receiver is dry relay output, it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

Receiver Parameters:
Model No.: S16C-DC12-ANT3 / S16C-DC24-ANT3
Power Supply (Operating Voltage): DC12V±1V (S16C-DC12-ANT3), DC24V±2V (S16C-DC24-ANT3)
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Wire range for the terminals: 22-18 AWG
Working Frequency: 433.92MHz
Channel: 16 way
Control Modes: Self-locking, Momentary, Interlocking and mixed modes
Static Current: ≤6mA
Maximum Working Current: 5A / each channel
Operating Temperature: -20 ° C to +70 ° C
PCB size: 120mm x 73mm x 16mm
Case size: 142mm x 80mm x 30mm

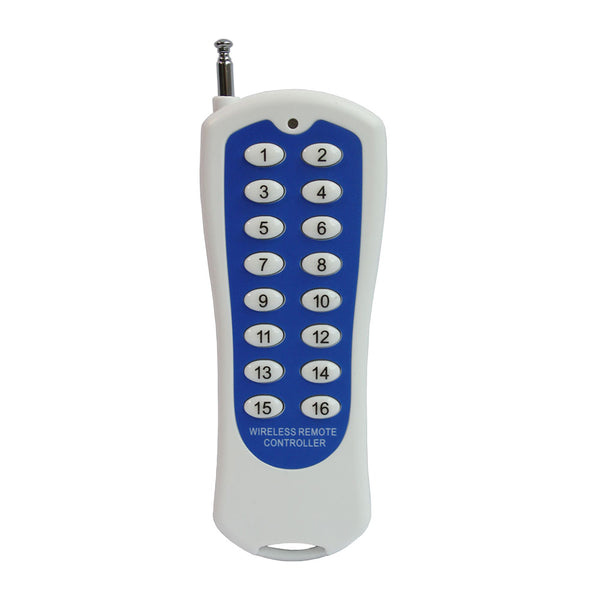

Transmitter Parameters:
Model No.: CV-16
Channel/Button: 16
Button Symbol: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Operating Frequency: 433MHz
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm

Working Range:
With a transmitter (such as CV-16) to form a complete set, the maximum working distance can reach 500 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can replace external antenna of the receiver.

Setting different control modes:
1) Setting Self-locking mode: When the receiver is in the status of LEARNING, press button 1 of the transmitter.
Control mode Self-locking (working with transmitter CV-16): Press -> On; Press again -> Off.
Press the button 1 on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on.
Press the button 1 again: The relay 1 is deactivated, and the connected lamp 1 is turned off.
Press the button 2 on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on.
Press the button 2 again: The relay 2 is deactivated, and the connected lamp 2 is turned off.
...
Press the button 16 on the transmitter: The relay 16 in the receiver is activated, and the connected lamp 16 is turned on.
Press the button 16 again: The relay 16 is deactivated, and the connected lamp 16 is turned off.

2) Setting Momentary mode: When the receiver is in the status of LEARNING, press button 2 of the transmitter.
Control mode Momentary (working with transmitter CV-16): Press and hold -> On; Release -> Off.
Press and hold the button 1 on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on.
Release the button 1: The relay 1 is deactivated, and the connected lamp 1 is turned off.
Press and hold the button 2 on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on.
Release the button 2: The relay 2 is deactivated, and the connected lamp 2 is turned off.
...
Press and hold the button 16 on the transmitter: The relay 16 in the receiver is activated, and the connected lamp 16 is turned on.
Release the button 16: The relay 16 is deactivated, and the connected lamp 16 is turned off.

3) Setting Interlocking mode: When the receiver is in the status of LEARNING, press button 3 of the transmitter.
Control mode Interlocking (working with transmitter CV-16): Press -> On, Press another button -> Off.
Press the button 1 on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on; Other 15 relay are deactivated, and connected lamps are turned off.
Press the button 2 on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on; Other 15 relay are deactivated, and connected lamps are turned off.
...
Press the button 16 on the transmitter: The relay 16 in the receiver is activated, and the connected lamp 16 is turned on; Other 15 relay are deactivated, and connected lamps are turned off.

4) Learning Self-locking (Channel 1~8) + Momentary (Channel 9~16) control mode: When the receiver is in the status of LEARNING, press button 4 of the remote control.

Package Include:
1 x Receiver: S16C-DC-ANT3
1 x Transmitter: CV-16
1 x User manual
