Long Range 5 km Wireless Remote Triggered by Two NO Relay Contacts (Model: 0021049)

Regular price $80.00

Shipping calculated at checkout.

Note:
1. This product does not include a wireless switch/receiver, if you need it, please click the link of the wireless switch/receiver in the description below to select and buy.
2. This product (remote control/transmitter) must be used with our long range 5000 meters 1 channel receiver.

Package Include:
1 x Transmitter: CC-2N-2
1 x User manual

Working Principle:
Transmitter CC-2N-2 is a special remote control with normally open contact trigger. It has 3 input terminals (COM, Signal 1, Signal 2) for connecting two devices with normally open contact, such as warning host, detectors, sensors, limit switches, Programmable Logic Controllers and so on.
This transmitter can be combined with different types of long range 5000 meters receivers to form a wireless control system, and this system is used to wirelessly control the device A through the device B with normally open contact.

This transmitter only works with the following radio receivers or wireless switches
Model: 0020684
S1UW-DC-ANT3
Model: 0020688
S1UW-AC-ANT3
Model: 0020090
S1PUW-DC-ANT3
Model: 0020091
S1PUW-AC-ANT3
Model: 0020112
S1PXW-DC-ANT3
Model: 0020134
S1PXW-AC-ANT3
DC Power Input
6V 9V 12V 24V
AC Power Input
110V 220V
DC Power Input
6V 9V 12V 24V
AC Power Input
110V 220V
DC Power Input
6V 9V 12V 24V
AC Power Input
110V 220V
Relay output
Normally open, Normally closed
DC Power Output
6V 9V 12V 24V
AC Power Output
110V 220V
Maximum Load Current of Relay
10A
Maximum Load Current of Relay
30A
Wireless remote control
DC or AC equipments
Only wireless remote control
DC equipments
Only wireless remote control
AC equipments
Case size
115mm x 90mm x 55mm
Case size
100mm x 86mm x 50mm
Case size
192mm x 100mm x 45mm

Application:

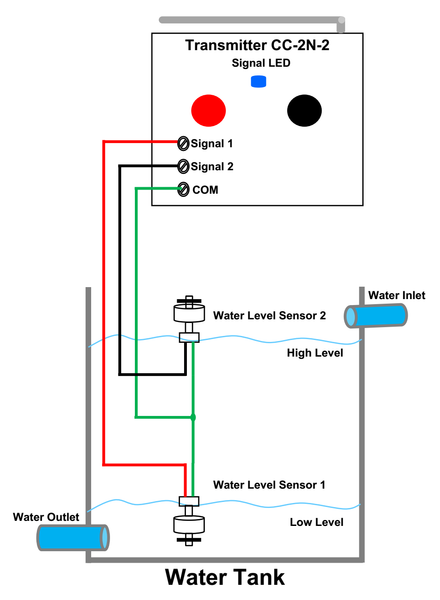

You can use this transmitter and the receiver to remotely control the AC or DC devices by the normally open contact of another device. Such as water pump automatic control system for tank (see attached diagram). You can connect two water level sensors to this transmitter, and connect the water pump to the receiver, then the pump will automatically work according to the water level.
When the water reaches the low water level, the water level sensor 1 is triggered, the transmitter automatically emits a wireless signal "ON". When the receiver receives this wireless signal, it will turn on the pump motor to pump water into the tank.
When the water reaches the high water level, the water level sensor 2 is triggered, the transmitter automatically emits a wireless signal "OFF". When the receiver receives this wireless signal, it will turn off the pump motor to stop pumping water.

Feature:
Wireless control, easy to install.
Triggered By Two Normally Open Dry Contacts.
Wireless RF signal can pass through walls, floors, doors or windows.
Reliable control: The signal has thousands of different combinations, and the receiver only works with the transmitter which use the same code.
Waterproof: The transmitter has waterproof case and waterproof connector, it can be installed outdoors.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

Transmitter Parameters:
Model No.: CC-2N-2
With 3 trigger terminals (COM, Signal 1 and Signal 2)
Triggering method: When terminal “Signal 1” and terminal “COM” are connected, it will send wireless signal "ON". When terminal “Signal 2” and terminal “COM” are connected, it will send wireless signal "OFF".
With two buttons: red button and black button
Operating Voltage: 12V (12V Rechargeable Lithium Battery)
Static Current: 3mA
Operating Current: 50~80mA
Operating Frequency: 433.92MHz
Transmitting Distance: 5000m / 15000ft (theoretically)
It has a power switch on the side.
Unit Size: 178mm x 120mm x 60mm

Working Range:
With a receiver (such as S1PUW-AC-ANT3 or S1PUW-DC-ANT3) to form a complete set, the maximum working distance can reach 5000M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.

Usage:
If you want to control the device A by two normally open contacts of the device B, do as following:
1. Connect the device A to the receiver.
2. Connect the normally open contact 1 from the device B to the transmitter's terminal “Signal 1” and “COM”
3. Connect the normally open contact 2 from the device B to the transmitter's terminal “Signal 2” and “COM”
4. When the normally open contact 1 is connected, the transmitter's terminal “Signal 1” and “COM” is also connected; the transmitter automatically emits a wireless signal "ON", which is equivalent to the function of the red button on the transmitter. When the receiver receives this wireless signal, it will activate its relay to turn on the device A.
5. When the normally open contact 2 is connected, the transmitter's terminal “Signal 2” and “COM” is also connected; the transmitter automatically emits a wireless signal "OFF", which is equivalent to the function of the black button on the transmitter. When the receiver receives this wireless signal, it will deactivate its relay to turn off the device A.
6. You also can press red button or black button on the transmitter to turn on / off the device A.
