Package Include:
1 x Push Button Switch
1 x User Manual
Introduction:

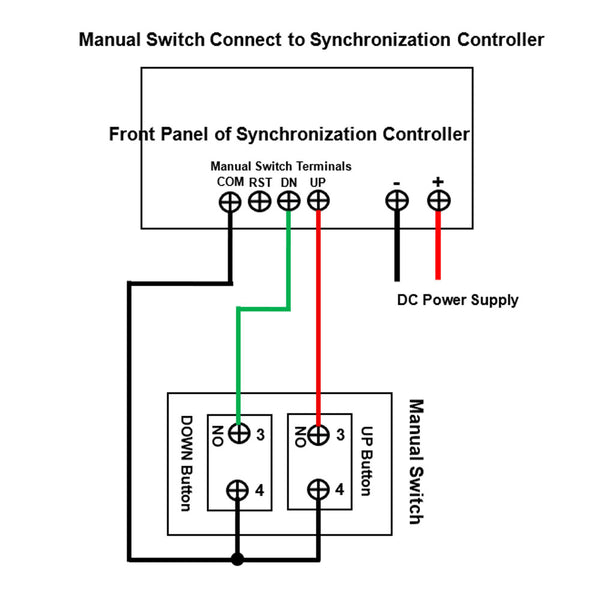

This push button switch has two pushbuttons UP and DOWN. Each button has a set of normally open contacts. You can connect this manual switch to wired control terminals of the receiver, or connect to push button switch terminals of linear actuator synchronization controller, and then use it to control the DC motor or the linear actuator.
Product Description:
Two buttons: UP, DOWN
Work Mode: Momentary
Button diameter: 30 MM
Hole diameter: 22 MM
Each button is equipped with a set NO contacts
Contact material: silver contacts
Contact rated current: 10A
Operating Temperature: -20°C to +70°C
Waterproof case and waterproof connector
Impact-resistant plastic case
IP rating: IP65
Case size: 105 x 68 x 50 mm (4.1 x 2.7 x 2.0 inches)
Suitable for our receivers with wired control terminals, such as S1FC-DC (Model: 0020323), S1PF-DC (Model: 0020511), and S1FC-AC (Model: 0020324). Â
Wiring:

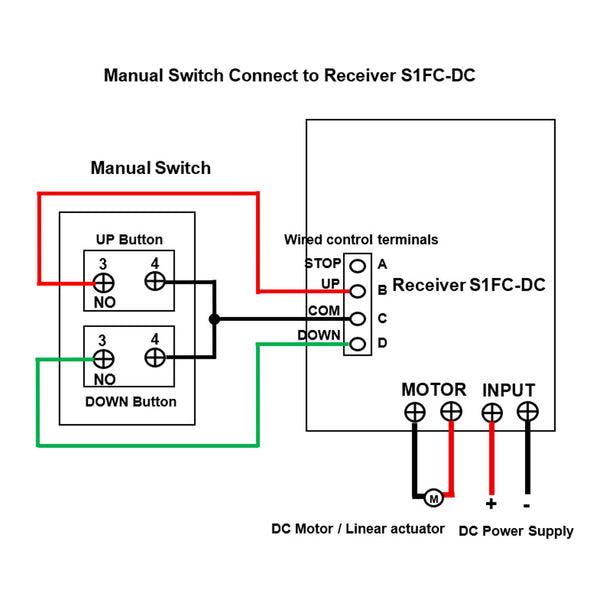

Connect to the receiver S1FC-DC:
1. Connect the positive pole of DC power supply to terminal <+> of the receiver's input, and connect the negative pole of DC power supply to terminal <-> of the receiver's input.
2. Connect the manual switch to the receiver's wired control terminals as follows:
1) Terminal 3 of UP button to <UP> terminal
2) Terminal 3 of DOWN button to <DOWN> terminal
3) Terminal 4 of both the UP and DOWN buttons to <COM> terminal
3. Connect two wires of the motor or the linear actuator to terminals <Motor> of the receiver, and you can exchange these two wires to change the rotating direction of the motor or the moving direction of the linear actuator.
Connect to the receiver S1PF-DC:
1. Connect the positive pole of DC power supply to terminal <+> of the receiver's input, and connect the negative pole of DC power supply to terminal <-> of the receiver's input.
2. Connect the manual switch to the receiver's wired control terminals as follows:
1) Terminal 3 of UP button to <S1> terminal
2) Terminal 3 of DOWN button to <S2> terminal
3) Terminal 4 of both the UP and DOWN buttons to <GND> terminal
3. Connect two wires of the motor or the linear actuator to terminals <Motor> of the receiver, and you can exchange these two wires to change the rotating direction of the motor or the moving direction of the linear actuator.
Operation:
1) Press and hold the UP button, motor rotates in positive direction, or linear actuator extends outward; Release the button, motor or linear actuator stops.
2) Press and hold the DOWN button, motor rotates in reversal direction, or linear actuator inward retracts; Release the button, motor or linear actuator stops.
