Package Include:
1 x Receiver: S1UC-DC(5~12V)
1 x User manual
Application:
The small size DC 5V`12V radio receiver is a 1 channel relay output wireless RF switch, it and the transmitter form a remote control switch kit. It can long range remote control DC or AC equipments, such as lamp, light, motor, solenoid valve, pump, electric lock, etc.
Feature:
Wireless control, easy to install.
Wide voltage input: DC 5V~12V.
Relay Output: This receiver is dry relay output, it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver:
Model No.: S1UC-DC(5~12V)
Power Supply (Operating Voltage): DC 5~12V
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Channel: 1 CH
Control Modes: Self-locking, Momentary, Interlocking
Coding Setting: By learning
Static Current: ≤7mA
Maximum Working Current of Relay: 5A
Receiver Working Current: 30mA

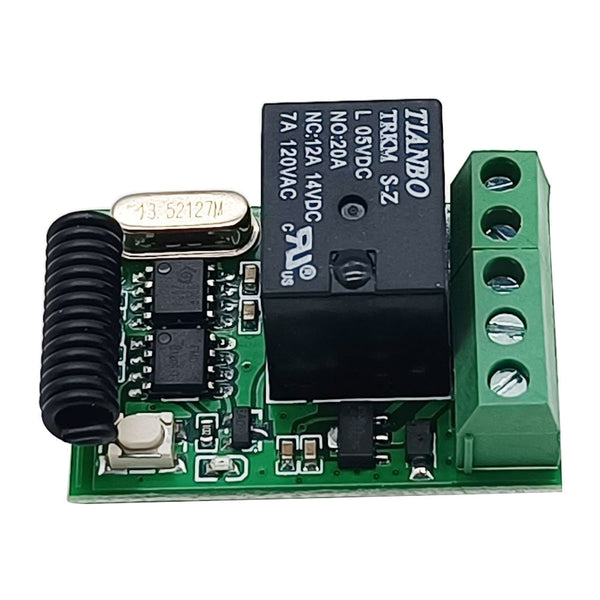

PCB Size: 34mm x 23mm x 17mm
Matching Transmitters:
The receiver can work with different transmitters, such as model C-2 (100 meters / 300 feet range), CP-2 (500 meters / 1500 feet range), CD-2 (Industrial, 1000 meters / 3000 feet range), or CB-2 (1000 meters / 3000 feet range).
Working Range:
With a transmitter (such as C-2) to form a complete set, the maximum working distance can reach 100 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CD-2 or CB-2 transmitter.
Usage:
The receiver can be used to control both DC 0~28V and AC 110~240V equipments.

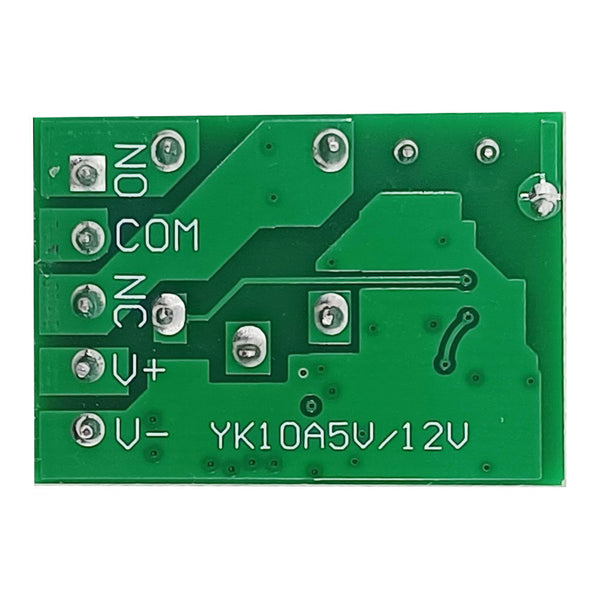

Notice: The receiver is relay output, not DC/AC power output. Initial state of relay output terminals: Terminals NO and COM are Normally Open; Terminals NC and COM are Normally Closed.
1. Wiring:
I) If you want to control a DC lamp, do as following:
1) Connect the positive pole of DC power supply 1 to terminal "V+" of the receiver;
2) Connect the negative pole of DC power supply 1 to terminal "V-" of the receiver;
3) Connect the positive pole of DC power supply 2 to terminal "NO" of the receiver;
4) Connect the negative pole of DC power supply 2 to the negative pole of DC lamp;
5) Connect the positive pole of DC lamp to terminal "COM" of the receiver.

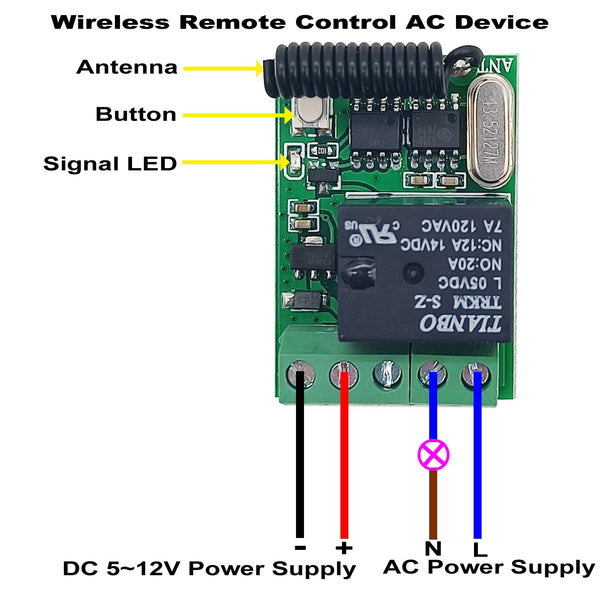

II) If you want to control an AC 120V / 220V lamp, do as following:
1) Connect the positive pole of DC power supply 1 to terminal "V+" of the receiver;
2) Connect the negative pole of DC power supply 1 to terminal "V-" of the receiver;
3) Connect the live wire of AC power supply to terminal "NO" of the receiver;
4) Connect the neutral wire of AC power supply to the one side of AC lamp;
5) Connect another side of AC lamp to terminal "COM" of the receiver.
Setting different control modes:
1) Setting Interlocking mode (with transmitter C-2): Press and hold the button of receiver until signal LED flashes 1 time, then release button.
Press the button A on the transmitter: The relay is activated (connect terminals NO and COM, disconnect terminals NC and COM), and the connected lamp is turned on.
Press the button B on the transmitter: The relay is deactivated (connect terminals NC and COM, disconnect terminals NO and COM), and the connected lamp is turned off.
2) Setting Momentary mode (with transmitter C-2): Press and hold the button of receiver until signal LED flashes 2 times, then release button.
Press and hold the button A on the transmitter: The relay is activated (connect terminals NO and COM, disconnect terminals NC and COM), and the connected lamp is turned on.
Release button A: The relay is deactivated (connect terminals NC and COM, disconnect terminals NO and COM), and the connected lamp is turned off.
3) Setting Self-locking mode (with transmitter C-2): Press and hold the button of receiver until signal LED flashes 3 times, then release button.
Press the button 1 on the transmitter: The relay is activated (connect terminals NO and COM, disconnect terminals NC and COM), and the connected lamp is turned on.
Press button A again: The relay is deactivated (connect terminals NC and COM, disconnect terminals NO and COM), and the connected lamp is turned off.
