1 x Receiver: S1FM-DC
1 x Transmitter: CV-2-2
1 x Electric Linear Actuator

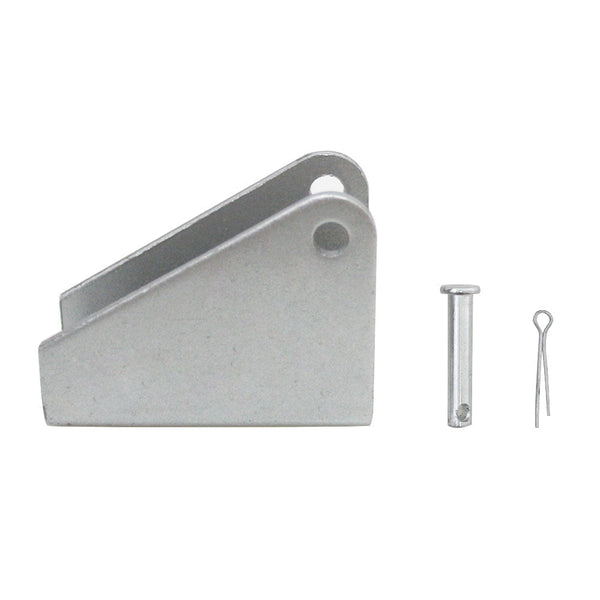

2 x Mounting Brackets A
1 x User manual
For long range wireless remote control the extension and retraction of electric linear actuator.
The DC 12V 24V 200kg 2000N 450 lbs Electric Linear Actuator can open, close, push, pull, lift and descend other devices. Such as doors, windows, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, etc.
It can replace hydraulic and pneumatic products to save power consumption.

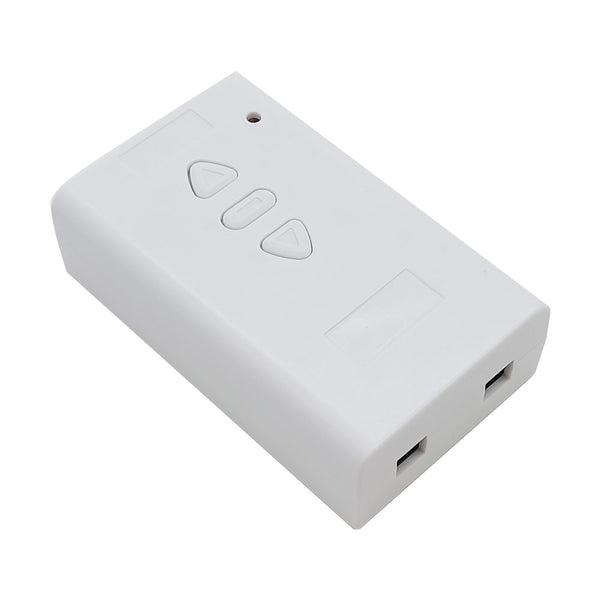

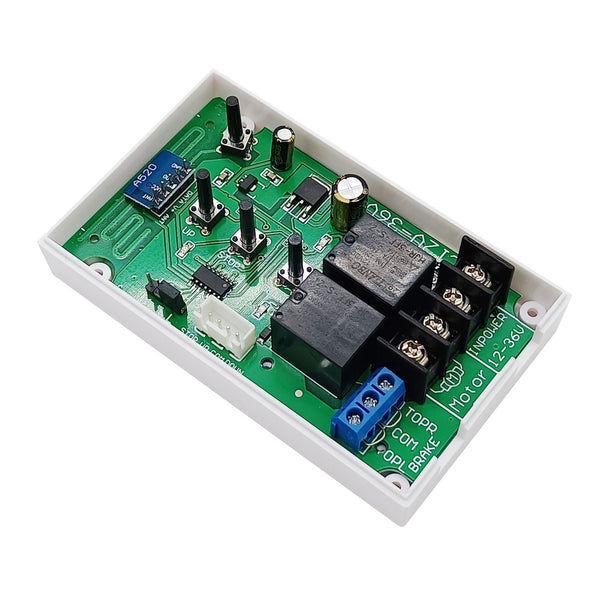

Model No: S1FM-DC12
Power Supply (Operating Voltage): DC12V~36V
Channel: 1 Way
Control Mode: Momentary
Static Current: ≤6mA
Maximum Working Current: 10A / each channel, so Linear Actuator's maximum starting current can not exceed 10A.
Working Frequency: 433MHz
PCB Size: 94mm x 56mm x 24mm
Case Size: 100mm x 60.5mm x 30mm

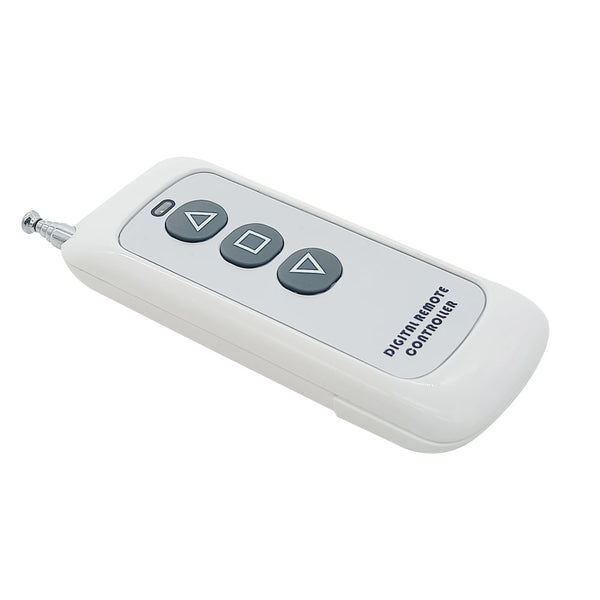

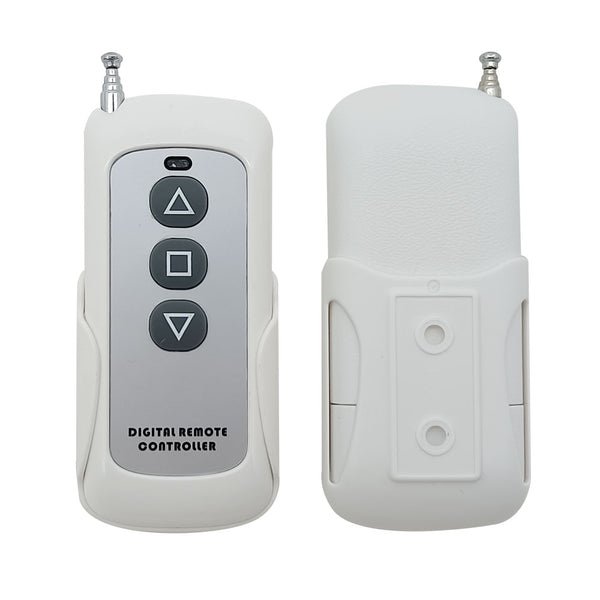

Model No.: 0021050 (CV-2-2)
Button Symbol: ▲, ▼
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Operating Frequency: 433MHz
Transmitting Distance: 500 meters / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm

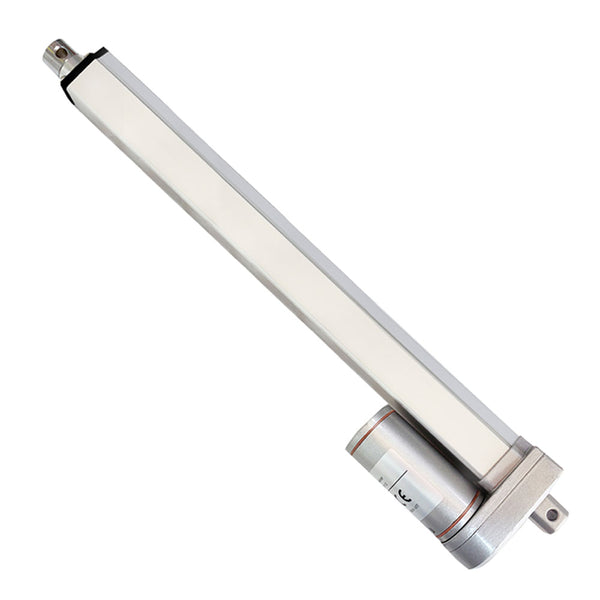

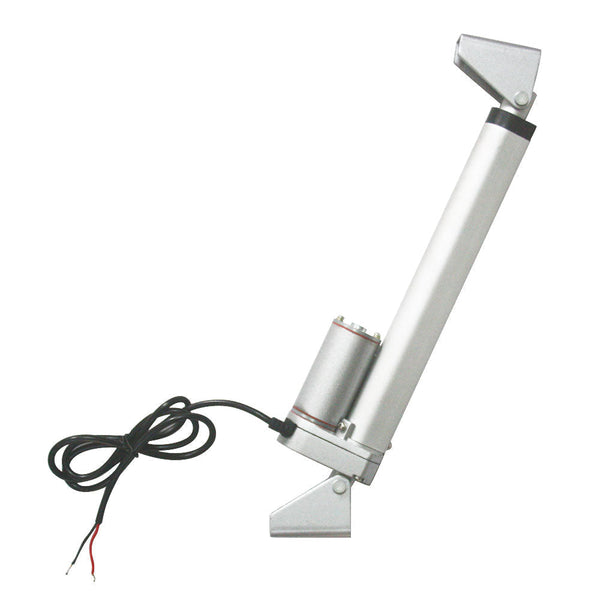

Linear Actuator Parameters:
Optional working voltage: DC 12V or DC 24V
Stroke range: 20 inches or 500 mm
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 30±5mm/s, 50±10mm/s, 100±15mm/s, 160±20mm/s
When the load increases, the speed of linear actuator will slow down.
Max Load capacity: 2000N / 200 Kgs / 450 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: 1A
Max load current: 3A
Please use a 12V/6A or 24V/5A power supply to power a linear actuator or use a 12V/10A or 24V/10A power supply to power two linear actuators.

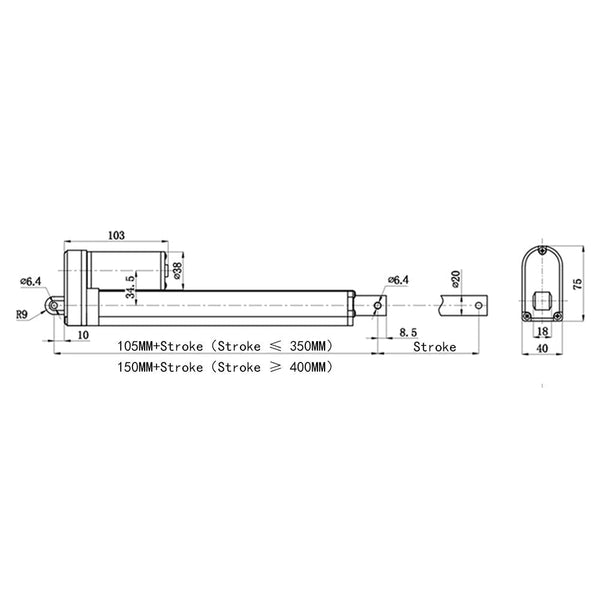

Shaft diameter: 20mm
Mounting holes diameter: 6mm
Housing Material: Aluminum Alloy
Stroke Rod Material: Aluminum Alloy
Gear Material: Steel Alloy
Motor Type: Brushed DC Motor
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Automatically lock after stopping, and no power supply is required.
Environment temperature: -26℃ to 85℃
Operating Noise: about 46dB~56dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP65
Thrust and speed sheet
|5mm/s||2000N / 200 kg / 450 lbs|
|10mm/s||1000N / 100 kg / 200 lbs|
|15mm/s||800N / 80 kg / 180 lbs|
|20mm/s||700N / 70 kg / 160 lbs|
|30mm/s||500N / 50 kg / 110 lbs|
|50mm/s||300N / 30 kg / 60 lbs|
|100mm/s||150N / 15 kg / 30 lbs|
|160mm/s||100N / 10 kg / 20 lbs|
1) Manual control linear actuator by the button on the receiver
Press and hold button “UP” of receiver: The electric linear actuator extends. Release button “UP” of receiver: The electric linear actuator stops.
Press and hold button “DOWN” of receiver: The electric linear actuator retracts. Release button “DOWN” of receiver: The electric linear actuator stops.
2) Wireless remote control linear actuator by the transmitter CV-2-2
Press and hold button ▲ of transmitter: The electric linear actuator extends. Release button ▲ of transmitter: The electric linear actuator stops.
Press and hold button ▼ of transmitter: The electric linear actuator retracts. Release button ▼ of transmitter: The electric linear actuator stops

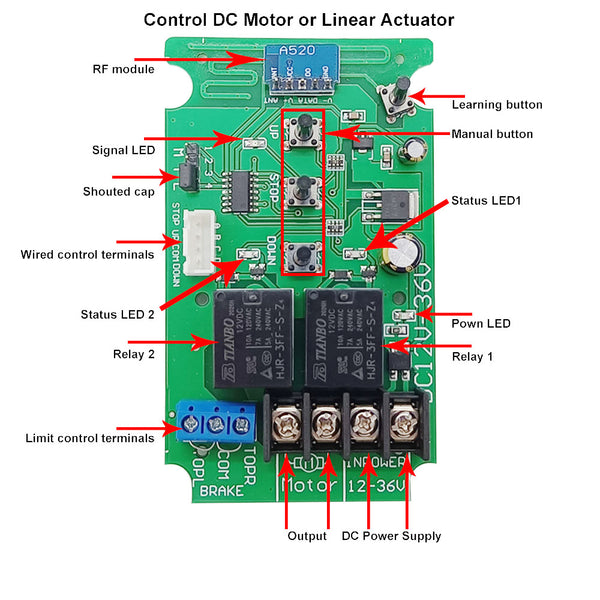

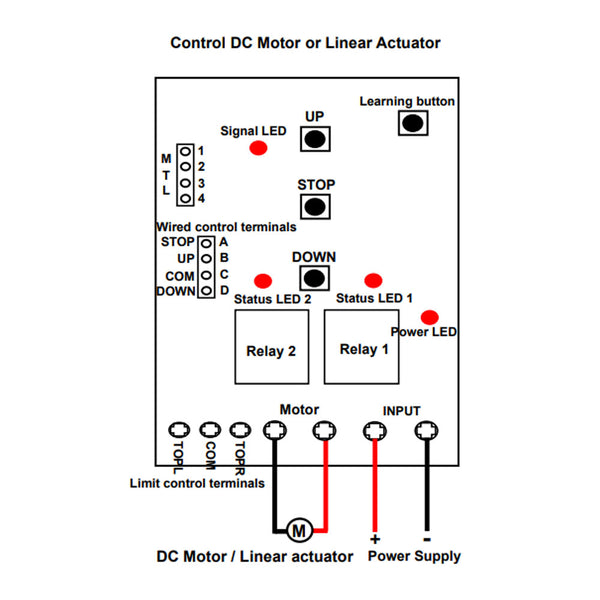

Limit control terminals:
Limit control terminals TOPR, COM and TOPL are normally close, you can connect limit switches or sensors (normally close type) to TOPR, COM and TOPL, and then you can use limit switches or sensors to restrict Linear Actuator Stroke.
When the electric linear actuator extends, if the actuator collides with the external limit switch, the electric linear actuator will stop automatically.
When the electric linear actuator retracts, if the actuator collides with the external limit switch, the electric linear actuator will stop automatically.
Wired control terminals:
You can connect manual switches to terminals “COM”, “UP”, “DOWN”, “STOP”, then you can use manual switches to control the electric linear actuator extension and retraction.
1) Control mode Interlocking
When connect terminals “UP” and “COM”, the electric linear actuator extends. And when connect “STOP” and “COM”, the electric linear actuator stops.
When connect terminals “DOWN” and “COM”, the electric linear actuator retracts. And when connect “STOP” and “COM”, the electric linear actuator stops.
2) Control mode Momentary
When connect terminals “UP” and “COM”, the electric linear actuator extends. And when disconnect “UP” and “COM”, the electric linear actuator stops.
When connect terminals “DOWN” and “COM”, the electric linear actuator retracts. And when disconnect “DOWN” and “COM”, the electric linear actuator stops.
