UP STOP DOWN Pushbutton Manual Switch (Model 0040024)

Regular price $12.00

Shipping calculated at checkout.

Package Include:
1 x Manual Switch
1 x User Manual

Introduction:

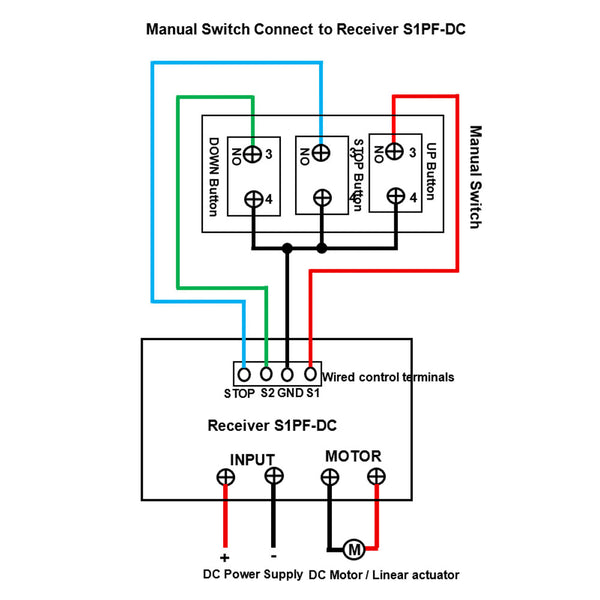

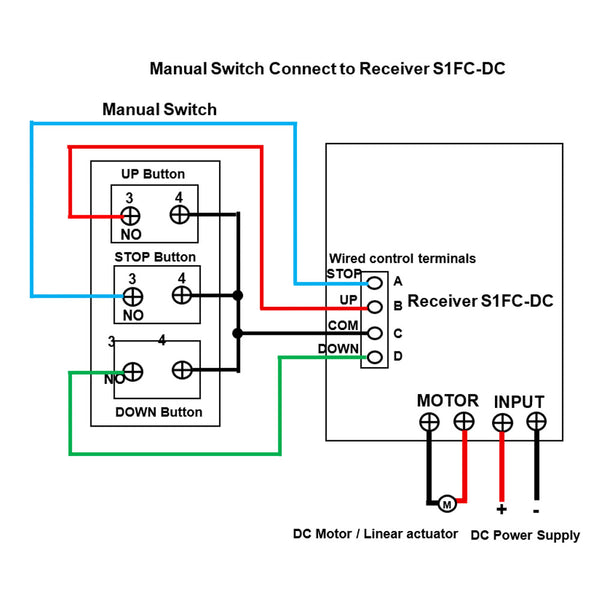

This manual switch has three pushbuttons UP-STOP-DOWN. Each button has two normally open contacts. You also can connect this manual switch to the receiver and use them to control the motor or the linear actuator.

Product Description:
Three buttons: UP, STOP, DOWN
Button type: momentary
Button diameter: 30 MM
Hole diameter: 22 MM
Each button is equipped with a NO contact
Contact material: silver contacts
Contact rated current: 10A
Operating Temperature: -20°C to +70°C
Waterproof case and waterproof connector
Impact-resistant plastic case
IP rating: IP65
Case size: 134 x 68 x 50 mm (5.3 x 2.7 x 2.0 inches)

Suitable for the following wireless receivers
Model 0020323
S1FC-DC
0020602
S1F2-DC
0020600
S1PF3-DC
0020511
S1PF-DC
0020324
S1FC-AC
