Application:

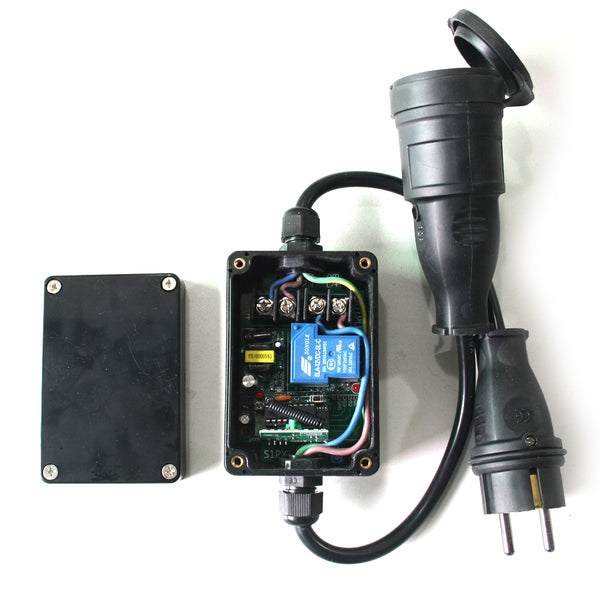

The Waterproof wireless remote control switch kit (radio receiver and RF transmitter) with with IP44 rated 16A European standard plug and socket.
It can be used for long range remote control of lights, pumps, fans, motors, heaters, electric solenoid valves, alarms, and other AC equipment.
Feature:
Wireless control, easy to install.
Waterproof: The switch has waterproof case and waterproof connector; it can be installed outdoors.
Universal input: Support 110V AC (110V~120V) used in US, Canada, etc, and 220V AC (220V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
High Power: It can work at maximum current 16A, such as 3500W/220V.
The transmitter / remote can control the wireless switch from any place within a reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
With overcurrent protection.
The wireless switch can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several wireless switches simultaneously.
Two or more wireless switches may be used in the same area.
Wireless Socket Parameters:
Model: S1PX-EU-AC220

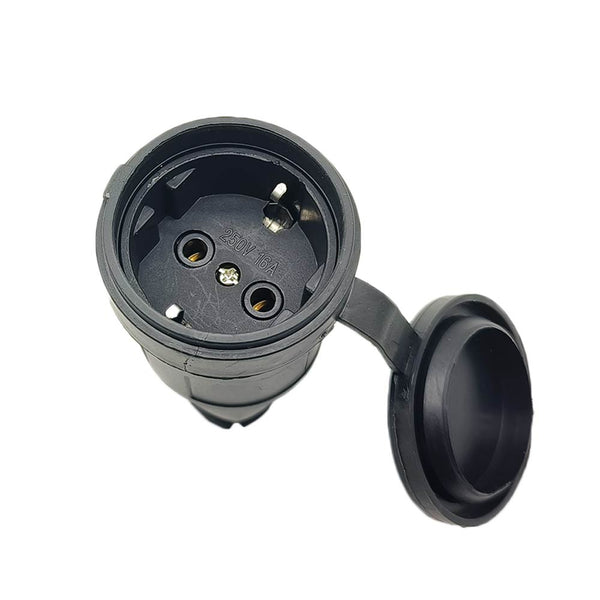

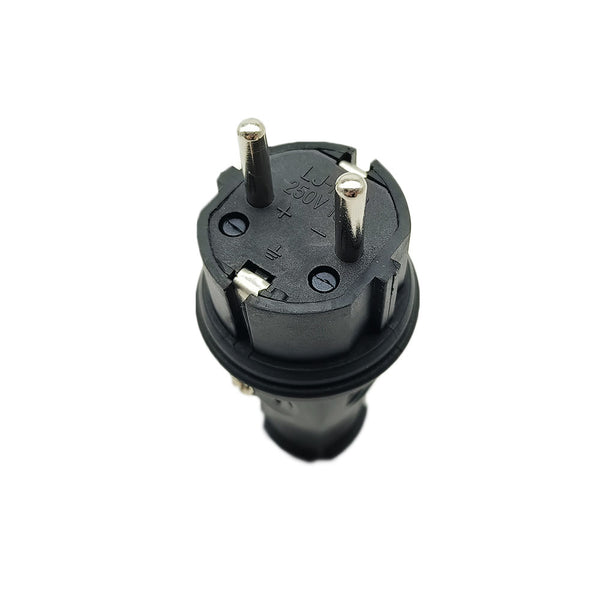

With European Standards Plug and Socket.

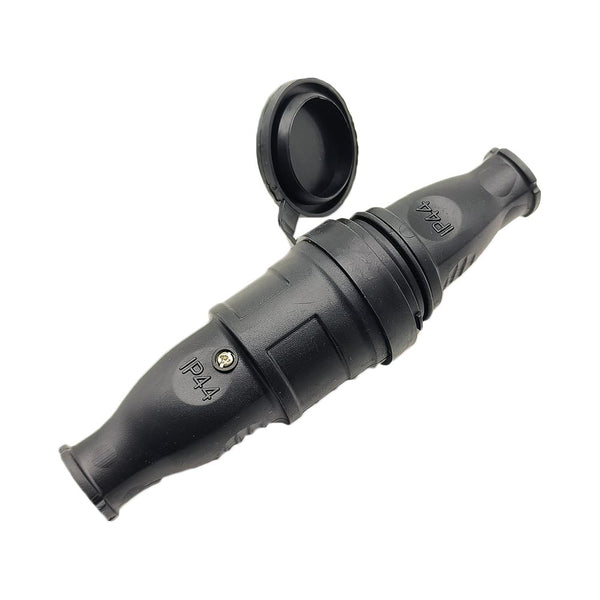

IP rating of plug and socket: IP44
Cable standard: three cores, 1.5 square millimeters
Input / Output: AC110~240V (110V/120V/220V/240V)
Working Frequency: 433.92MHz
Static Current: ≤6mA
Maximum Load Current of Relay: 16A
3 Selectable Working Modes: Self-locking, Momentary, Interlocking
Operating Temperature: -20 °C ~ +70 °C

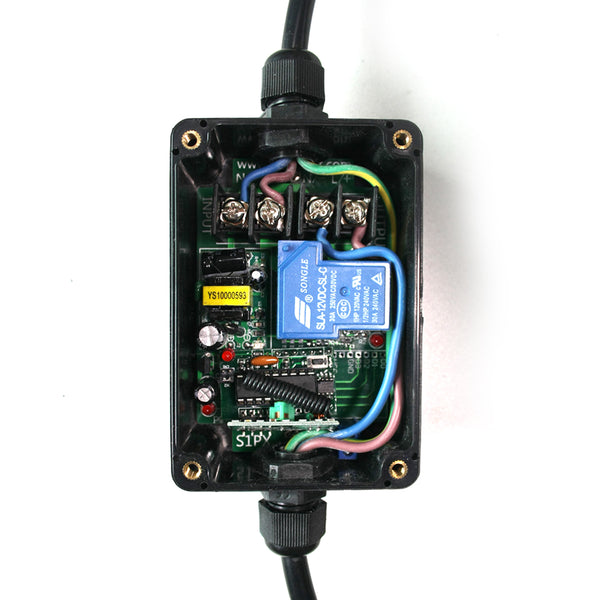

PCB size: 90 x 59 x 18 mm (3.5 x 2.3 x 0.7 inches)
Case size: 100 x 68 x 50 mm (3.9 x 2.7 x 2.0 inches)

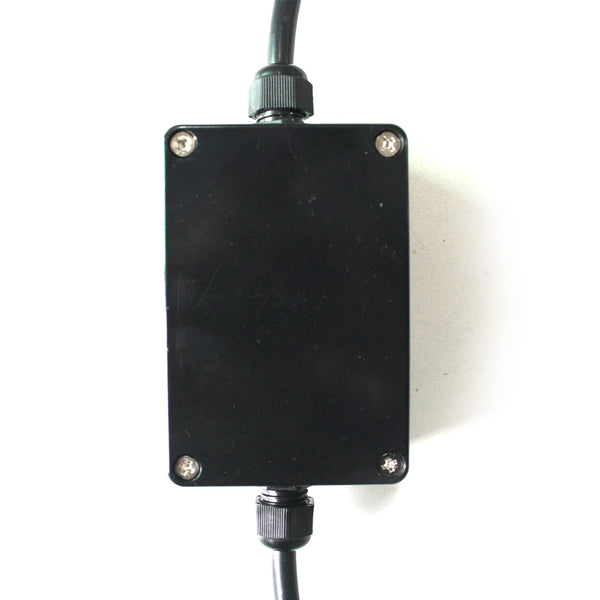

IP rating of waterproof case: IP65
Transmitter Parameters:

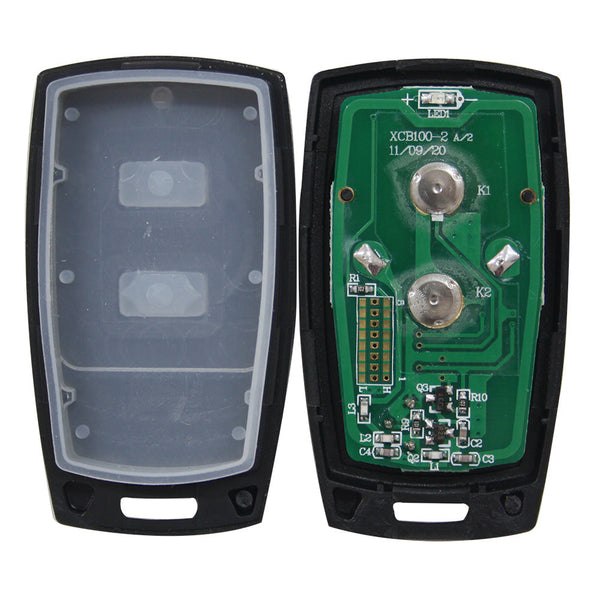

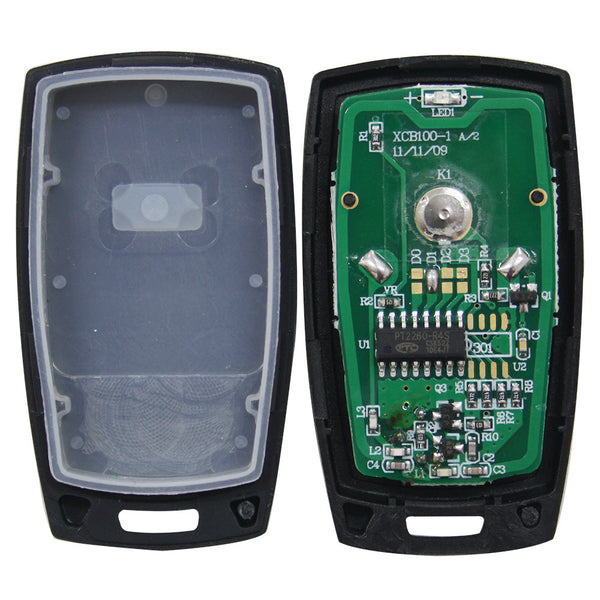

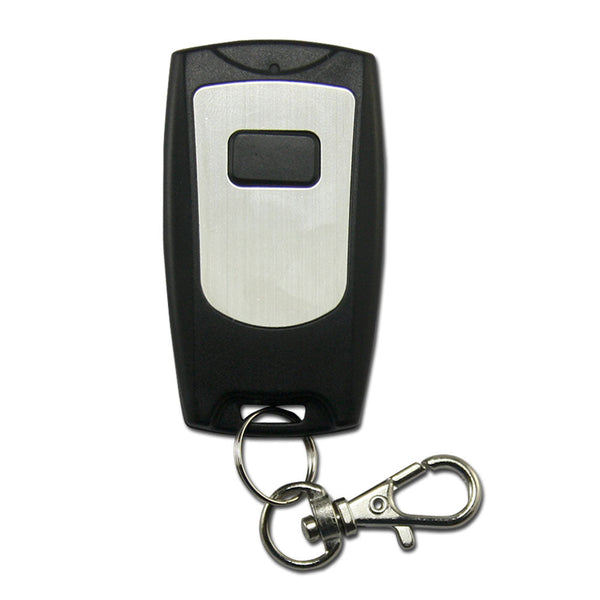

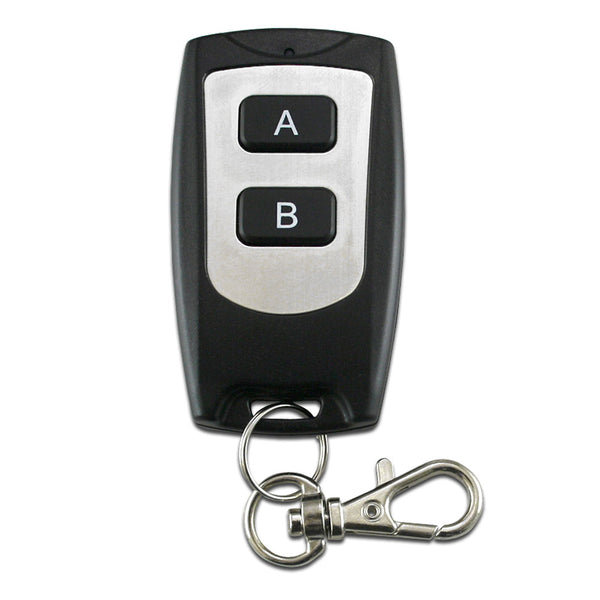

Model No.: CWB-1 / CWB-2
Waterproof
Channel/Button: 1 (CWB-1) / 2 (CWB-2)
Button Symbol: No symbol (CWB-1) / A, B (CWB-2)
Operating Voltage: 6V (2 x CR2016 -3V button cell batteries)
Operating Current: 5mA
Operating Frequency: 433.92MHz
Transmitting Distance: 50m / 150ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 56mm x 32mm x 12mm
Suitable transmitters for the receiver:
The receiver can work with different transmitters.
When you set the receiver in Self-locking mode or Momentary mode, it should work with single button transmitter, such as model CWB-1 (50 Meter / 150 feet range), C-1 (100 Meter / 300 feet range), CP-1 (500 Meter / 1500 feet range), or CB-1 (1000 Meter / 3000 feet range).
When you set the receiver in Interlocking mode, it should work with two buttons transmitter, such as model CWB-2 (50 Meter / 150 feet range), C-2 (100 Meter / 300 feet range), CP-2 (500 Meter / 1500 feet range), CD-2 (Waterproof, 1000 Meters / 3000 ft range), or CB-2 (1000 Meter / 3000 feet range).
Working Range:
With a transmitter (such as CWB-2) to form a complete set, the maximum working distance can reach 50M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to wireless socket, and you also can use a powerful transmitter, such as CB series transmitters.
Usage:
Wireless remote control sockets can be used to control AC 110~240V equipments.
Setting different control modes:
1) Setting Self-locking mode: Only short pin 2.
The operation of Self-locking mode with the transmitter CWB-1:
Press the button on the transmitter: The wireless switch output AC power, and the exhaust fan works.
Press the button again: The wireless switch stop outputting, and the exhaust fan stops.
2) Setting Momentary mode: Only short pin 1.
The operation of Momentary mode with the transmitter CWB-1:
Press and hold the button on the transmitter: The wireless switch output AC power, and the exhaust fan works.
Release the button: The wireless switch stop outputting, and the exhaust fan stops.
3) Setting Interlocking mode: Do not short two pins.
The operation of Interlocking mode with the transmitter CWB-2:
Press the button A on the transmitter: The wireless switch output AC power, and the exhaust fan works.
Press the button B on the transmitter: The wireless switch stop outputting, and the exhaust fan stops.
