Package Include:
1 x Receiver: S2X-AC12
1 x User manual
Application:
For long range remote control AC 12V 24V electrical devices, such as lamps, lights, LED lighting, motors, fans, pump, solenoid valves, etc.
Feature:
Wireless remote control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Compatible with AC 12V~24V input
AC Power Output: It can control AC equipment with voltage AC 12V, 24V.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model No.: S2X-AC12
Operating Voltage: AC 12V~24V
Output Type: AC 12V~24V, same as input voltage
Channel: 2 Way
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 10A / each channel
3 Control modes: Self-locking, Momentary, and Interlocking
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C

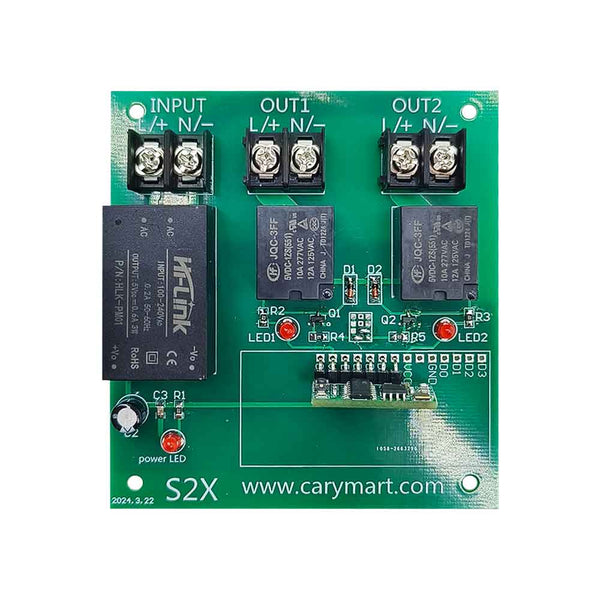

PCB size: 88 x 80 x 18 mm

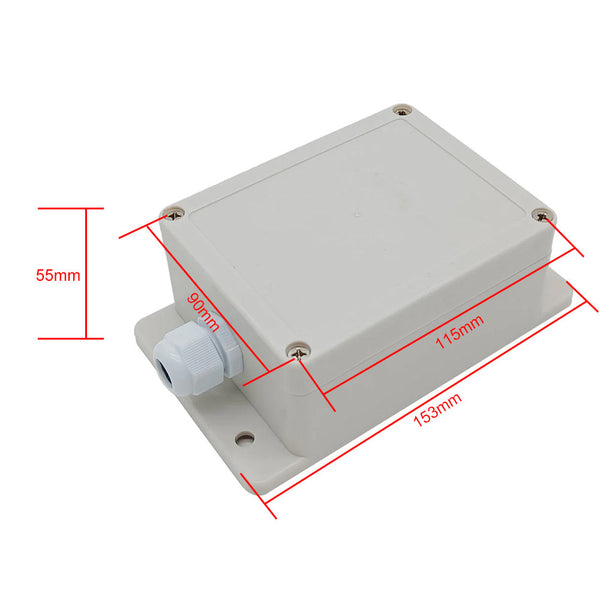

Case size: 153 x 90 x 55 mm
Applicable Transmitter:
The receiver can work with different transmitters, such as model CWB-2 (waterproof, 50 meters / 150 feet range), C-2 (100 meters / 300 feet range), CP-2 (500 meters / 1500 feet range), CD-2 (Industrial, waterproof, 1000 meters / 3000 feet range), and CB-2 (1000 meters / 3000 feet range).
Working Range:
With a transmitter (such as CWB-2) to form a complete set, the maximum working distance can reach 50 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
IIf you need a longer working distance, you can replace the antenna on the receiver, or use a powerful transmitter, such as a CB-2 transmitter.

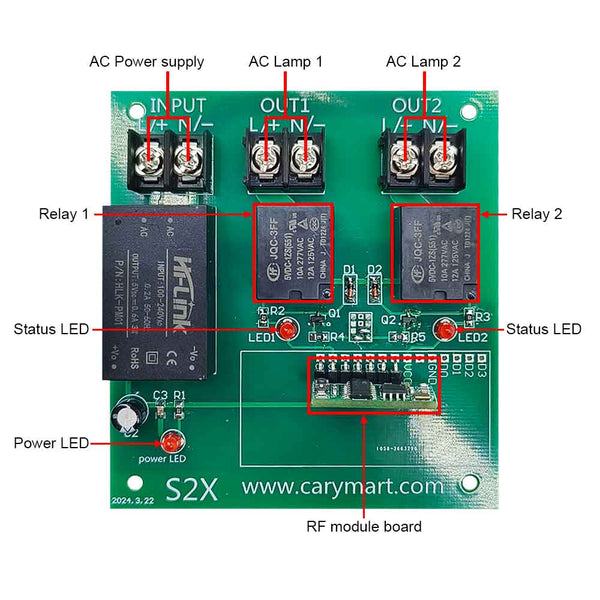

Usage:
The receiver can be used to control AC 12V~24V equipments.
Setting different control modes:
1) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
The operation of Interlocking mode with the transmitter CWB-2:
Press the button A of the transmitter: The terminals “OUT1” of the receiver outputs AC power, and the device 1 connected to the receiver works; The terminals “OUT2” of the receiver stops outputting, and the device 2 connected to the receiver stops working.
Press the button B of the transmitter: The terminals “OUT2” of the receiver outputs AC power, and the device 2 connected to the receiver works; The terminals “OUT1” of the receiver stops outputting, and the device 1 connected to the receiver stops working.
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter CWB-2:
Press the button A of the transmitter: The terminals “OUT1” of the receiver outputs AC power, and the device 1 connected to the receiver works.
Press the button A of the transmitter again: The terminals “OUT1” of the receiver stops outputting, and the device 1 connected to the receiver stops working.
Press the button B of the transmitter: The terminals “OUT2” of the receiver outputs AC power, and the device 2 connected to the receiver works.
Press the button B of the transmitter again: The terminals “OUT2” of the receiver stops outputting, and the device 2 connected to the receiver stops working.
3) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter CWB-2:
Press and hold the button A of the transmitter: The terminals “OUT1” of the receiver outputs AC power, and the device 1 connected to the receiver works.
Release the button A of the transmitter: The terminals “OUT1” of the receiver stops outputting, and the device 1 connected to the receiver stops working.
Press and hold the button B of the transmitter: The terminals “OUT2” of the receiver outputs AC power, and the device 2 connected to the receiver works.
Release the button B of the transmitter: The terminals “OUT2” of the receiver stops outputting, and the device 2 connected to the receiver stops working.
