Package Include:
1 x Receiver: S1PX-US-WP2-AC (with US Standard Plug and IP66 Waterproof Socket)

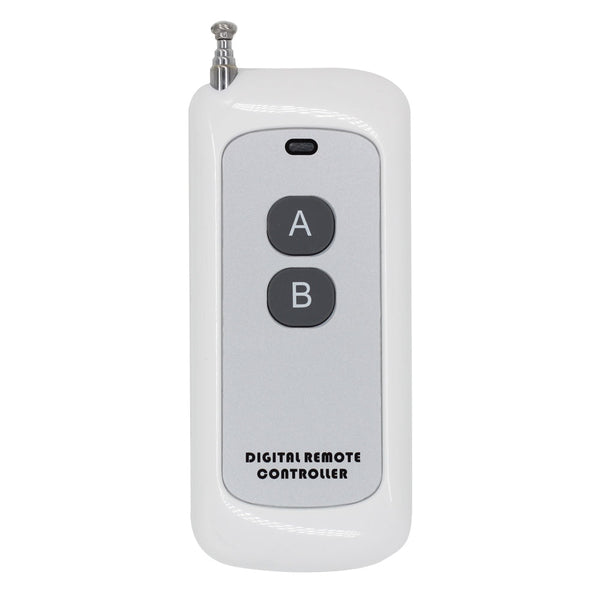

1 x Transmitter: CP-2
1 x User manual
Application:
This is a 110V wireless remote control outdoor electrical outlet kit, with 1 way AC power input output radio receiver, RF transmitter, US standard plug and IP66 weatherproof socket.
It can long range control AC electrical equipments, such as light, pump, fan, motor, heater, solenoid valve, etc.
Feature:
Wireless control, easy to install.
Waterproof: The switch has waterproof case and waterproof connector; it can be installed outdoors.
Universal input: Support 110V AC (100V~120V) used in US, Canada, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V.
High Power: It can work at maximum current 15A.
The transmitter / remote can control the wireless switch from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The wireless switch has reverse voltage protection and overcurrent protection.
The wireless switch can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several wireless switches simultaneously.
Two or more wireless switches may be used in the same area.

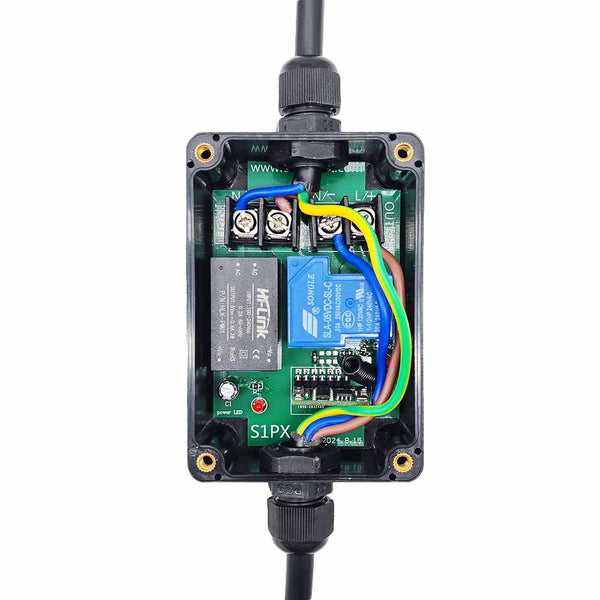

Wireless Switch Parameters:
Model: S1PX-US-WP2-AC120

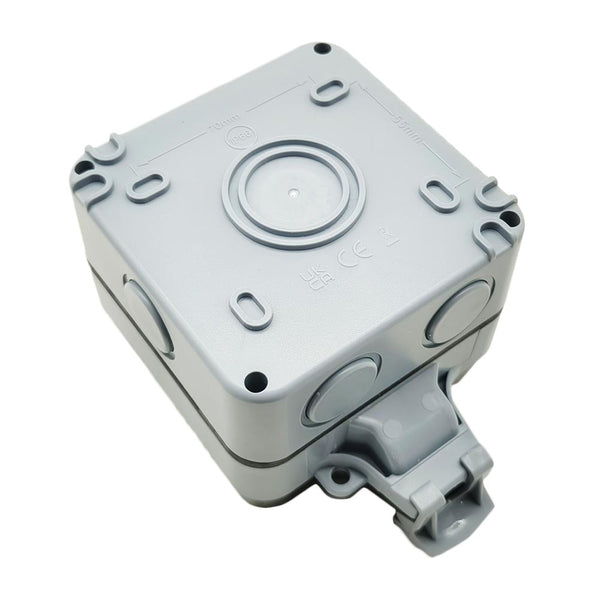

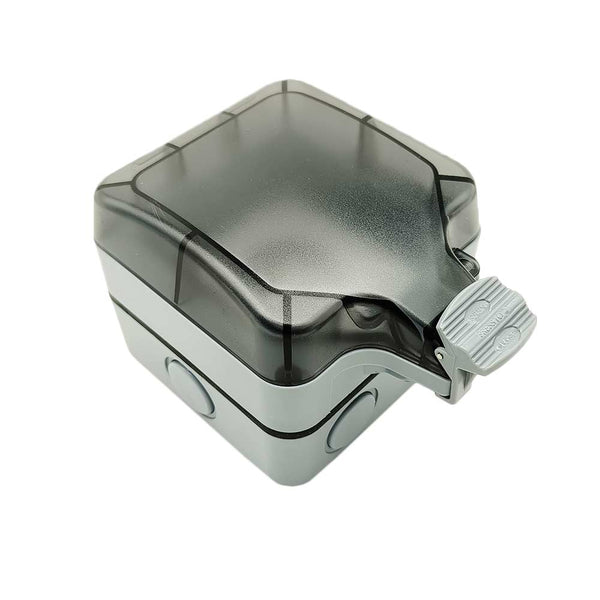

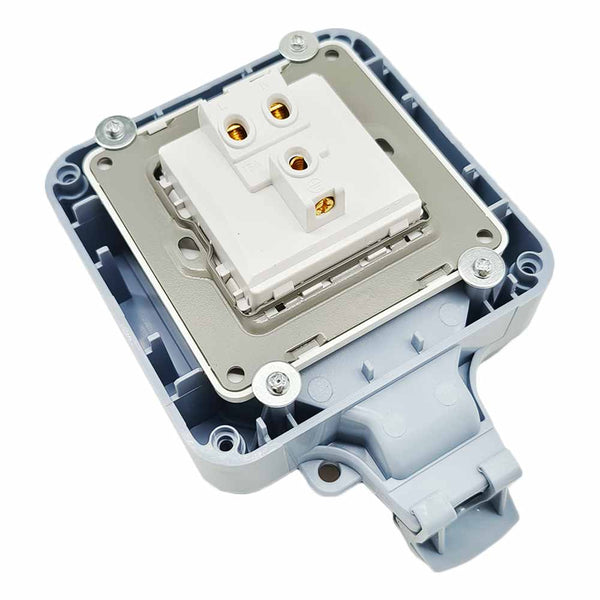

With Unite States Standards Plug and Waterproof Socket.
IP rating of socket: IP66
Cable standard: three cores, 1.5 square millimeters
Input / Output: AC100~120V (110V/120V)
Working Frequency: 433.92MHz
Static Current: ≤6mA
Maximum Load Current of Relay: 15A
Suitable Wires for Connecting Terminals: 22-12 AWG
3 Selectable Working Modes: Self-locking, Momentary, Interlocking
Operating Temperature: -20 °C ~ +70 °C
PCB size: 90 x 59 x 18 mm
Case size: 100 x 68 x 50 mm

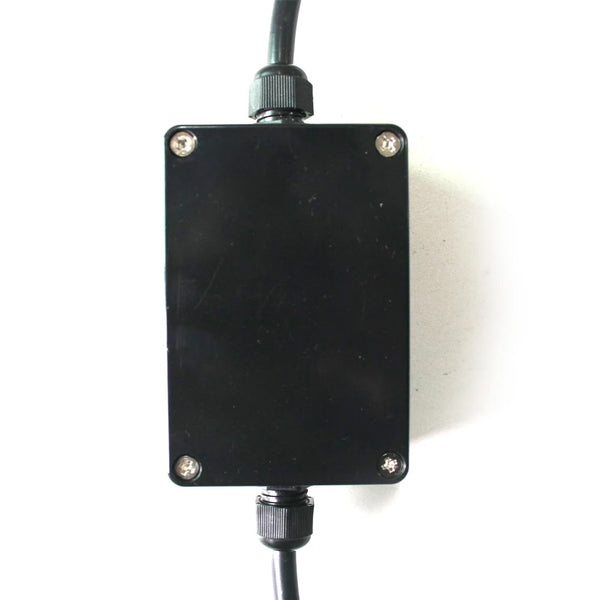

IP rating of waterproof case: IP65
Transmitter Parameters:
Model: 0021011 (CP-2)
Channel/Button: 2
Button Symbol: A, B

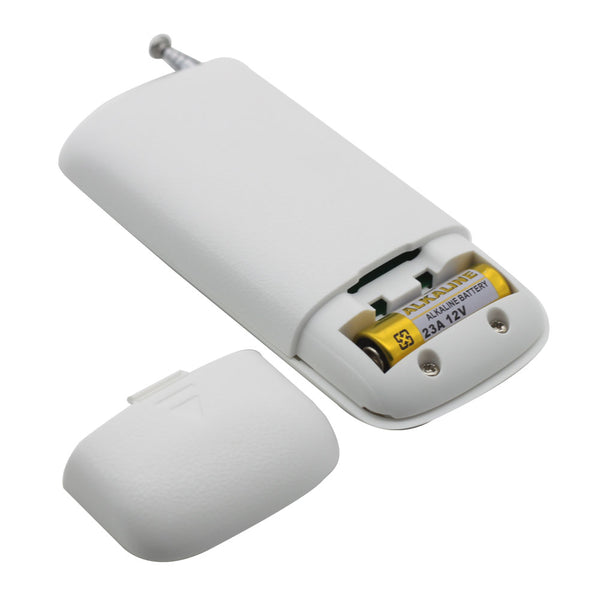

Operating Voltage: 12V (1 x 23A -12V battery)
Operating Current: 8mA
Operating Frequency: 433Mhz
Encoding Chip: PT2262/ PT2264/ SC2262
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 85 x 36 x 16 mm
Suitable transmitters：
The receiver can work with different transmitters.
When you set the receiver in Self-locking mode or Momentary mode, it should work with single button transmitter, such as model C-1 (100 meters / 300 feet range), CP-1 (500 meters / 1500 feet range), and CB-1 (1000 meters / 3000 feet range).
When you set the receiver in Interlocking mode, it should work with two buttons transmitter, such as model C-2 (100 meters / 300 feet range), CP-2 (500 meters / 1500 feet range), CD-2 (Industrial, 1000 meters / 3000 feet range), and CB-2 (1000 meters / 3000 feet range).
Working Range:
With a transmitter (such as CP-2) to form a complete set, the maximum working distance may reach 1500 feet or 500 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no interference. But in the practice, it will be hindered by trees, walls, or other construction, and will be interfered by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-2 transmitter.
Usage:
Wireless switch can be used to control AC 100~120V (110V/120V) equipment.
Wiring:
If you want to control an AC 120V exhaust fan, do as following:
Plug the exhaust fan into the socket of this switch, and connect the plug of this switch to the AC 120V power supply.
Setting different working modes:
1) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
The operation of Interlocking mode with the transmitter CP-2:
Press the button A on the transmitter: The socket outputs AC power, and the device connected to this socket works.
Press the button B on the transmitter: The socket stops outputting, and the device connected to this socket stops working.
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter CP-1:
Press the button on the transmitter: The socket outputs AC power, and the device connected to this socket works.
Press the button again: The socket stops outputting, and the device connected to this socket stops working.
3) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter CP-1:
Press and hold the button on the transmitter: The socket outputs AC power, and the device connected to this socket works.
Release the button: The socket stops outputting, and the device connected to this socket stops working.
How to pair the transmitter to the receiver:
1) Press the learning button once in the receiver, signal LED on the receiver flashes one time and then stays on, this indicates that the receiver enters the learning status.
2) Pair the CP-1 transmitter: Press the button on transmitter, if the signal LED flashes one time, this indicates that the pairing is successful.
Pair the CP-2 transmitter: Press button A on transmitter, if the signal LED flashes one time, this indicates that the pairing with button A is successful. Then press button B on transmitter, if the signal LED flashes one time, this indicates that the pairing with button B is successful.
3) Press the learning button in the receiver again for 1-2 seconds, signal LED turns off, this indicates that the receiver exits the learning status.
4) The receiver can learn several transmitters with different codes.
How to delete all transmitters codes stored in the receiver:
Press the learning button in the receiver 10 times and then release the learning button, signal LED flashes 10 times quickly and then goes off, this indicates that all stored codes have been deleted successfully.
