2 Way Remote Control Switch Kit for Wireless Control AC Motor Positive Reverse Rotation (Model: 0020681)

Regular price $114.00

Shipping calculated at checkout.

Application:
This 120V 220V wireless remote control switch kit, with 2 channels high power 30A radio receiver and a 500 meters RF transmitter with 6 buttons. For long range remote control single phase motor positive rotation, reverse rotation or stop rotation.
Widely used in equipments with AC single phase motor, such as rolling blinds, rolling doors, projection screens, awnings, winches, conveyors.

Features:
Wireless remote control, easy to install.
Universal input: support voltage of AC110V (100V~120V), widely used in US, Canada... and voltage of AC220V (200V~240V), used in UK, France...
High Power: Each channel can work at maximum current 30A.
With limit control terminals: You can connect limit switches or sensors to stop the motor.
With wired control terminals: You can connect manual switches or external devices (with low level output signal, such as sensors) to control the motor.
You can rotate a motor in the positive or reversal direction with the transmitter (remote control) from any place within a reliable distance.
You also can control AC motor positive rotation, reverse rotation or stop rotation by button on the receiver.
With reverse power protection and over current protection.
Wireless RF signal can pass through walls, floors, doors or windows.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

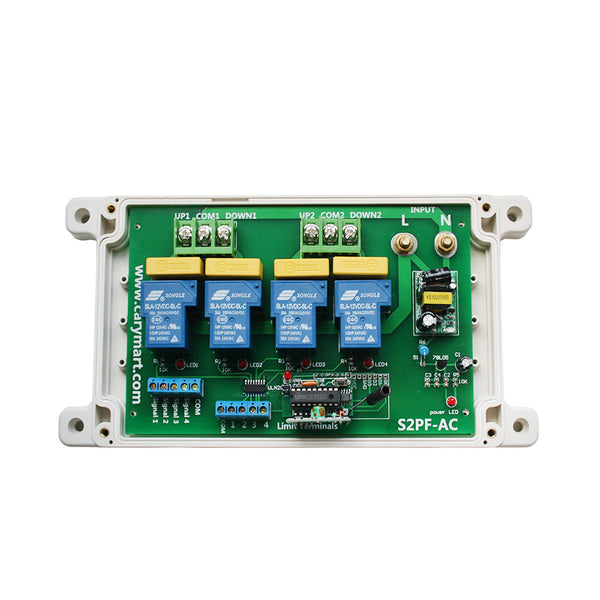

Receiver Parameters:
Model No.: S2PF-AC220
Power Supply (Operating Voltage): AC100~240V (110V/120V/220V/240V)
Output: AC100~240V (110V/120V/220V/240V)
Channel: 2 Way
Control Mode: Momentary and Interlocking
Static Current: ≤6mA
Maximum Working Current: 30A / each channel, so motor's maximum starting current can’t exceed 30A.
Working Frequency: 433MHz
PCB Size: 140mm x 73mm x 18mm
Case Size: 192mm x 100mm x 45mm

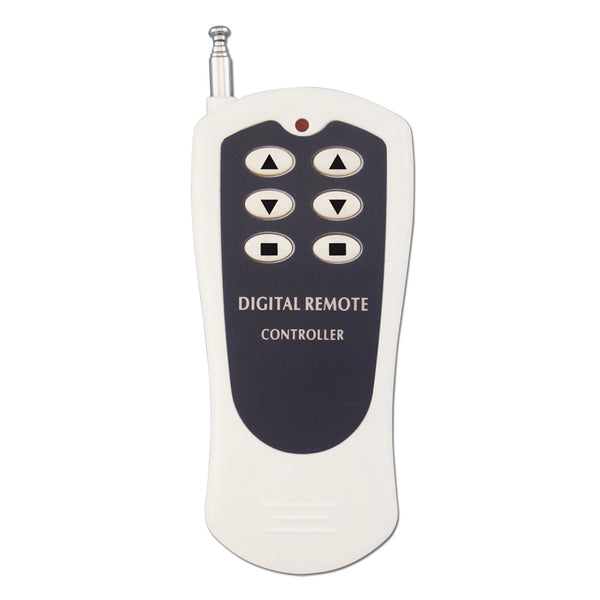

Transmitter Parameters:
Model No.: 0021052 (CV-6-2)
Channel/Button: 6
Button Symbol: Two▲, Two▼, Two■
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Operating Frequency: 433MHz
Transmitting Distance: 500 meters / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm

Working Range:
With a transmitter (such as CV-6-2) to form a complete set, the maximum working distance can reach 500 meters in an open ground.
The maximum working distance is a theoretical data; it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.

Setting different control modes:
1) Setting control mode Interlocking (with transmitter CV-6-2):Do not connect Jumper-1 (CN1) or Jumper-2 (CN2)
Press button ▲ on the left of the transmitter: motor 1 rotates in positive direction.
Press button ■ on the left of the transmitter: motor 1 stops.
Press button ▼ on the left of the transmitter: motor 1 rotates in reversal direction.
Press button ■ on the left of the transmitter: motor 1 stops.

Press button ▲ on the right of the transmitter: motor 2 rotates in positive direction.
Press button ■ on the right of the transmitter: motor 2 stops.
Press button ▼ on the right of the transmitter: motor 2 rotates in reversal direction.
Press button ■ on the right of the transmitter: motor 2 stops.

2) Setting control mode Momentary (with transmitter CV-6-2): Only connect Jumper-1 (CN1).
Press and hold button ▲ on the left of the transmitter: motor 1 rotates in positive direction.
Release button ▲ on the left: motor 1 stops.
Press and hold button▼ on the left of the transmitter: motor 1 rotates in reversal direction.
Release button ▼ on the left: motor 1 stops .

Press and hold button ▲ on the right of the transmitter: motor 2 rotates in positive direction.
Release button▲ on the right: motor 2 stops.
Press and hold button▼ on the right of the transmitter: motor 2 rotates in reversal direction.
Release button ▼ on the right: motor 2 stops.

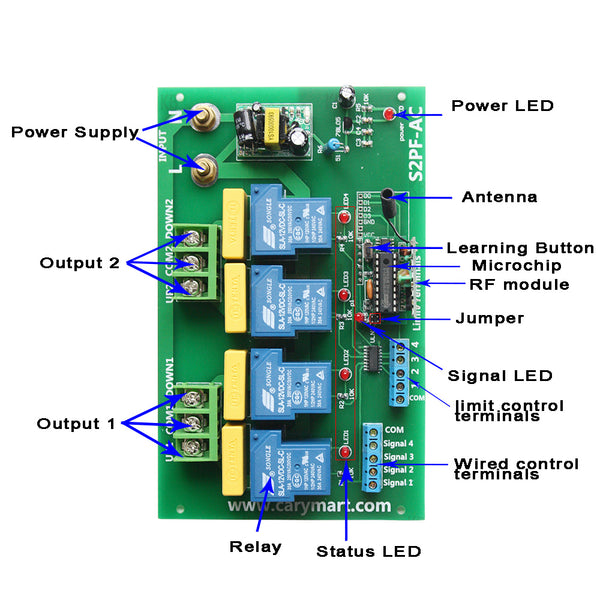

Limit control terminal:
You can connect a limit switch to the receiver to stop the motor when the limit is tripped. Or you can also connect a manual switch or a sensor to stop the motor.
When motor 1 rotates forward, if connect two limit terminals COM and 1, relay 1 stop working, the motor 1 will stop automatically.
When motor 1 rotates reversal, if connect two limit terminals COM and 2, relay 2 stop working, the motor 1 will stop automatically.
When motor 2 rotates forward, if connect two limit terminals COM and 3, relay 3 stop working, the motor 2 will stop automatically.
When motor 2 rotates reversal, if connect two limit terminals COM and 4, relay 4 stop working, the motor 2 will stop automatically.

Package Include:
1 x Receiver: S2PF-AC220
1 x transmitter: CV-6-2
1 x User manual
