This AC wireless remote control receiver kit provides long-range radio control for DC and AC equipment up to 1000 meters in open areas. The waterproof receiver supports 4 channels with 30A relay outputs, three selectable control modes (self-locking, momentary, and interlocking), and AC 100–240V input. It is suitable for lamps, motors, linear actuators, pumps, electric locks, fans, heaters, and other equipment. An external antenna and included 4-button transmitter help provide reliable operation through walls, floors, doors, and windows.
Package Include

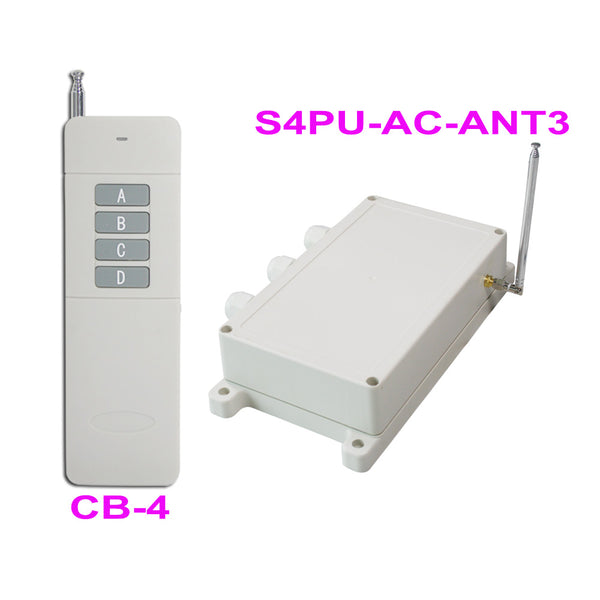

1 x Receiver: S4PU-AC-ANT3
1 x Transmitter: CB-4
1 x User manual
Application
For long range wireless remote control DC and AC equipments, such as lamp, LED lighting, motor, linear actuator, solenoid valve, pump, electric lock, fan, heater, etc.
Feature
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Relay Output: This receiver is dry contact output, it can be used to operate both DC and AC equipments. With three output terminals: NO, COM, NC, which serves as a switch. That means you should also connect a separate power supply to equipments.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
Receiver
Model: S4PU-AC-ANT3
Operating Voltage: Compatible with AC 100~240V
Output Type: Relay Output. Three output terminals (NO, NC, COM) each channel
Channel: 4 Way
3 Selectable Modes: Self-locking, Momentary, Interlocking
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 30A / Channel
Working Frequency: 433MHz
Operating Temperature: -20°C ~ +70°C
PCB size: 170 x 100 x 18 mm
Case size: 200 x 120 x 53 mm
Transmitter
Model: 0021026 (CB-4)
Channel/Button: 4
Button Symbol: A, B, C, D
Operating Voltage: 9V (1 x 6F22 -9V battery)
Operating Frequency: 433MHz
Transmitting Distance: 1000 meters / 3000ft (theoretically)
Modulation Mode: ASK
Unit Size: Unit Size: 135 x 42 x 25 mm
Working Range
This receiver and transmitter (CB-4) form a complete set, the maximum working distance may reach 3000ft or 1000 meters in an open area.
The maximum working distance is based on theoretical data without obstacles and any RF interference. In practice, it will be hindered by trees, walls, or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
Suitable Transmitters
The receiver can work with different transmitters, such as model 0021003 C-4 (100 meters), 0021012 CP-4 (500 meters), 0021087 CD-4 (1000 meters, waterproof, industrial), and 0021026 CB-4 (1000 meters).
Usage:
This receiver has three output terminals for each channel, C for the NC terminal, B for the NO terminal, and A for the COM terminal.
Initial state of relay output terminals: Terminals “A” and “B” are Normally Open; Terminals “A” and “C” are Normally Closed.
Wiring for Wireless Switch Receiver, click here to learn more.
Setting and Operation of the 3 Control Modes for Wireless Switch Receiver, click here to learn more.
Pairing and Deleting for Receiver and Transmitter, click here to learn more.
