Description:
Maximum Load: 500W for 12VDC or 24VDC, 1000W for 36VDC or 48VDC
Size: 148mm x 65mm x 70mm

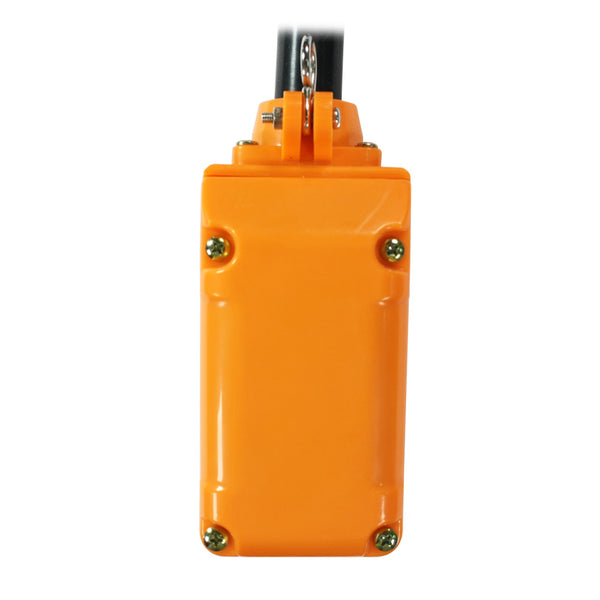

ABS engineering plastic shell.

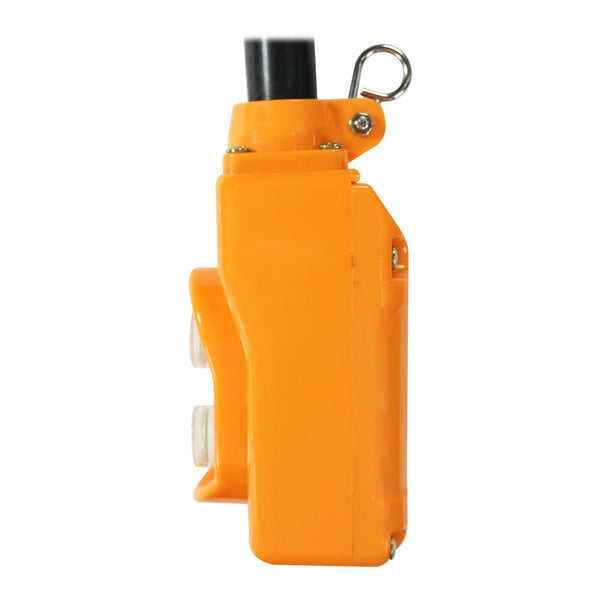

Equipped with cable protector and waterproof sealing strip, it has good dustproof and rainproof properties.

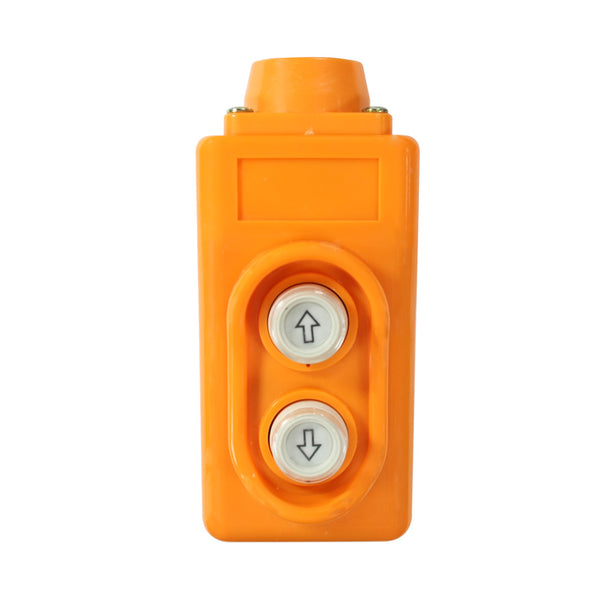

Equipped with two buttons (Up and Down), momentary work mode.
Suitable for manual control DC electric motor positive rotation and reverse rotation.
Wiring:
1) Connect the two wires of the DC electric motor to the two output wires of handheld manual controller or transfer switch;
2) Connect DC power supply to the input wires of handheld manual controller or transfer switch.
Used to control DC electric motor:
1) Press and hold the button éof handheld manual controller or transfer switch, DC motor rotates in positive direction; Release the button é, DC motor stops.
2) Press and hold the button ê of handheld manual controller or transfer switch, DC motor rotates in reversal direction; Release the button ê , DC motor stops.
