Package Include:
1 x Receiver: S1X-DC12 / S1X-DC24
2 x Transmitter: C-2
1 x Electric solenoid valve

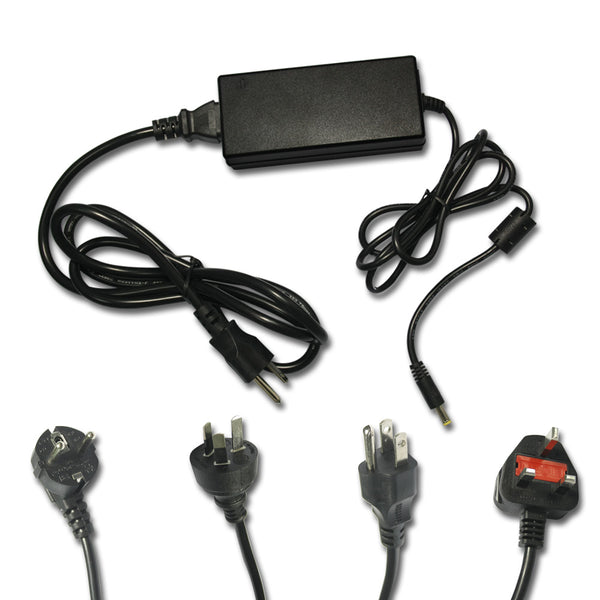

1 x Power adapter: DC12V/3A or DC24V/3A
1 x User manual
Application:
This wireless remote control electric solenoid valve kit with DC power output radio receiver, RF transmitter, solenoid valve, and 12V/3A or 24V/3A power adapter.
The kit can long range control garden watering, garden drip irrigation, agricultural irrigation, liquid, gas, air, water, diesel, gasoline, low viscosity fluids, etc.
Feature:
Wireless control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
DC Power Output: It can control DC equipment with voltage12V / 24V.
You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With reverse power protection and over current protection.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

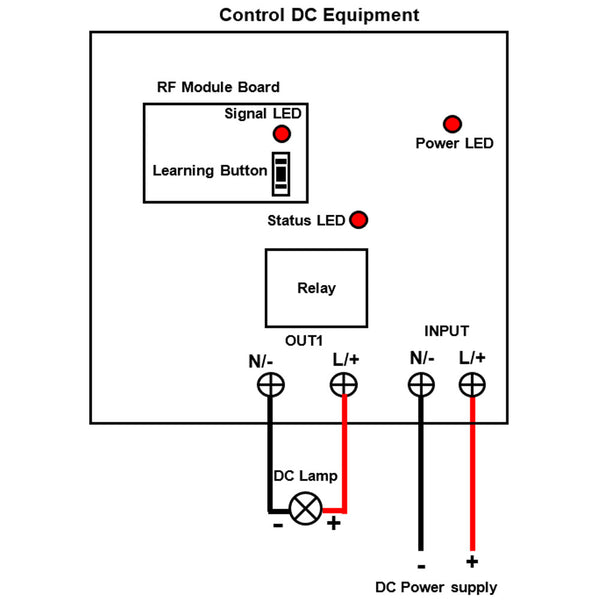

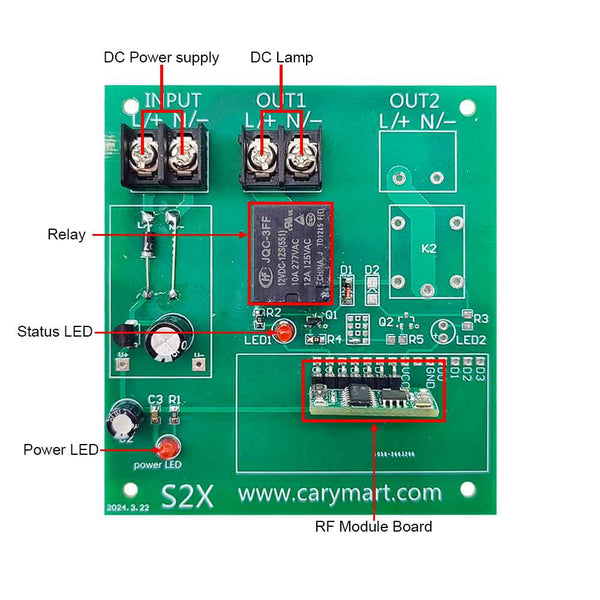

Receiver Parameters:
Model No.: S1X-DC
Power Supply (Operating Voltage): DC12V±1V (S1X-DC12), DC24V±1V (S1X-DC24), the operating voltage must be specified when ordering.
Output: DC12V (S1X-DC12), DC24V (S1X-DC24)
Channel: 1 CH
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 10A
3 Control modes: Self-locking, Momentary, Interlocking
Working Frequency: 433.92 MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C
PCB size: 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches)
Case size: 115 x 90 x 55 mm (4.5 x 3.6 x 2.2 inches)

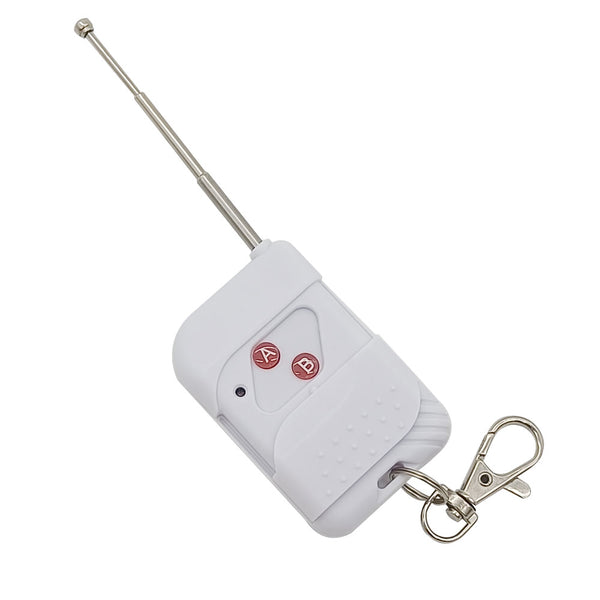

Transmitter Parameters:
Model No.: 0021001 (C-2)
With Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide down the button will appear.
Channel/Button: 2
Button Symbol: A, B
Operating Voltage: 12V (1 x 23A -12V battery)
Operating Current: 6mA
Operating Frequency: 433 MHz
Transmitting Distance: 100 meters / 300ft (theoretically)
Modulation Mode: ASK
Unit Size: 58mm x 39mm x 16mm

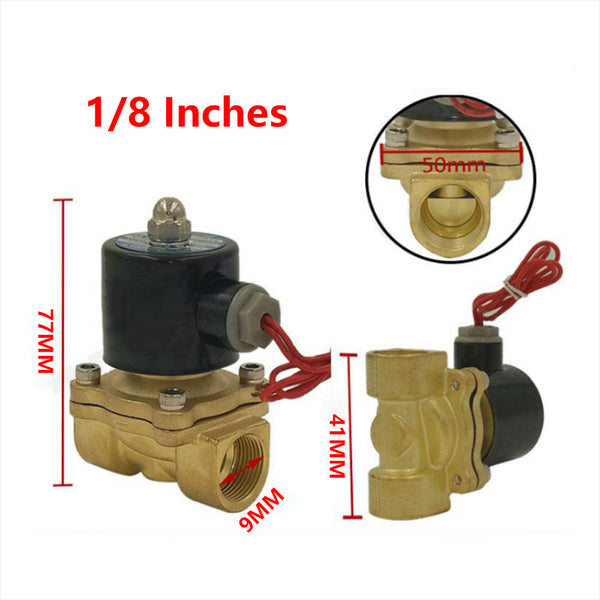

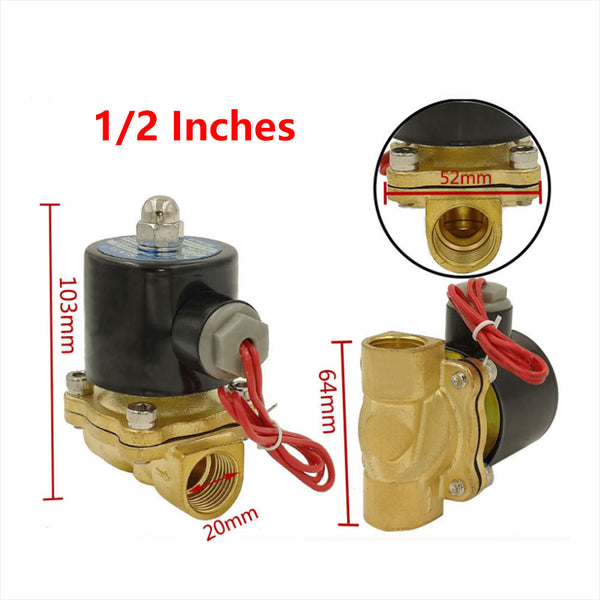

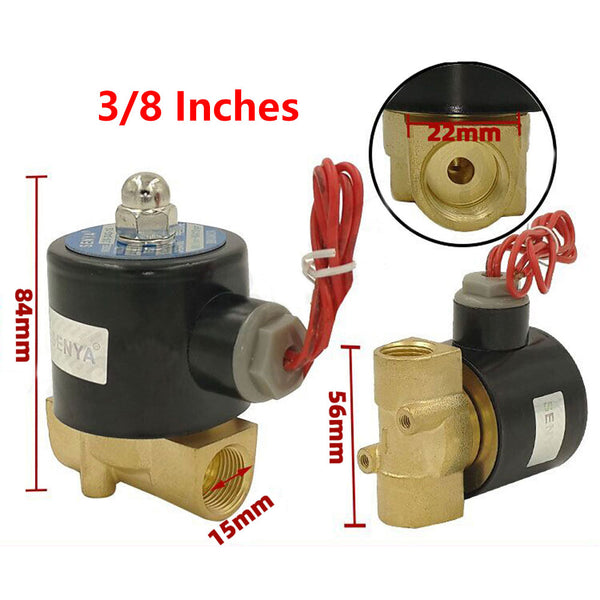

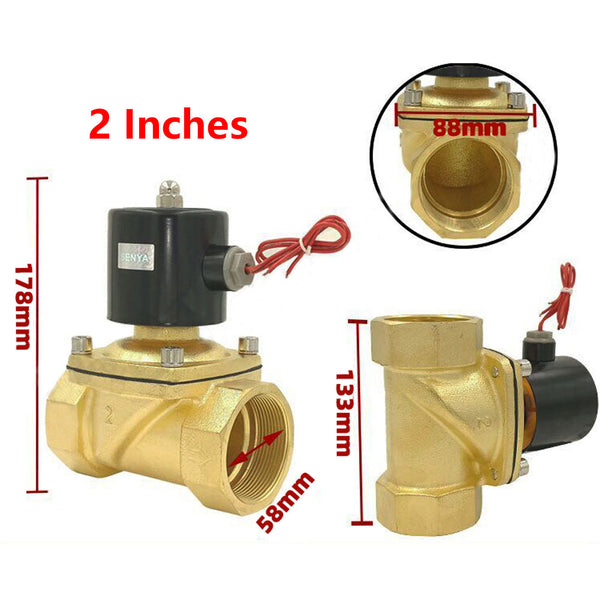

Solenoid Valve Parameters:
Working Voltage: DC 12V, DC 24V optional
Power: 24W

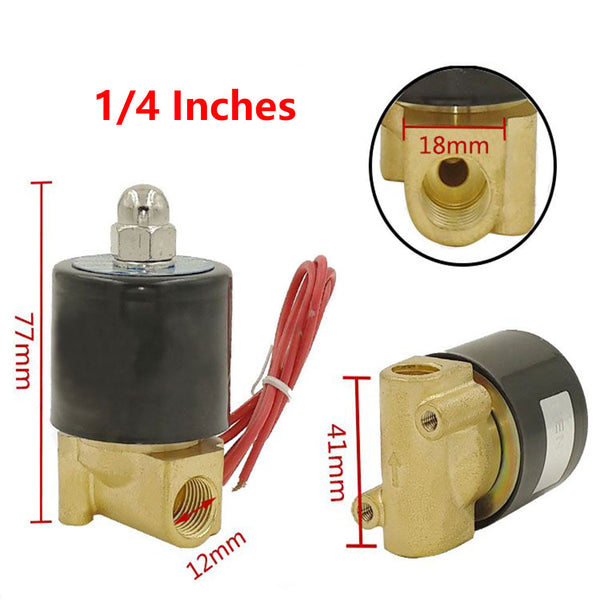

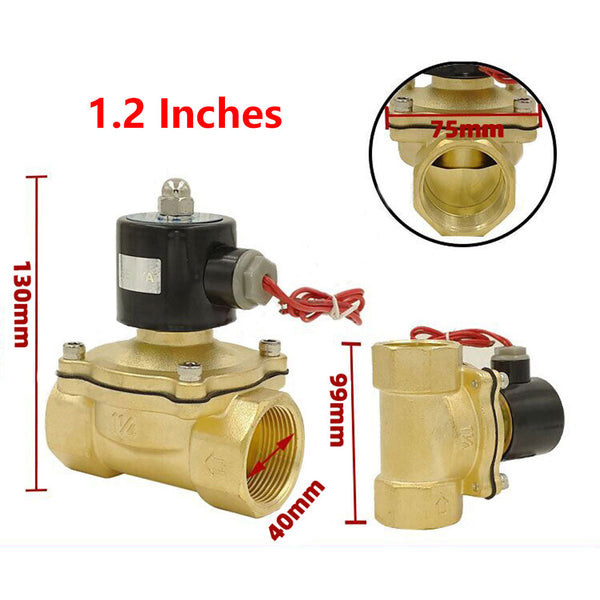

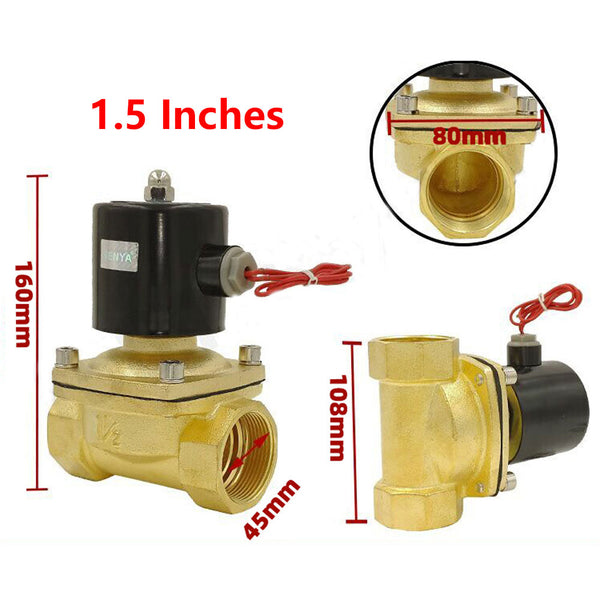

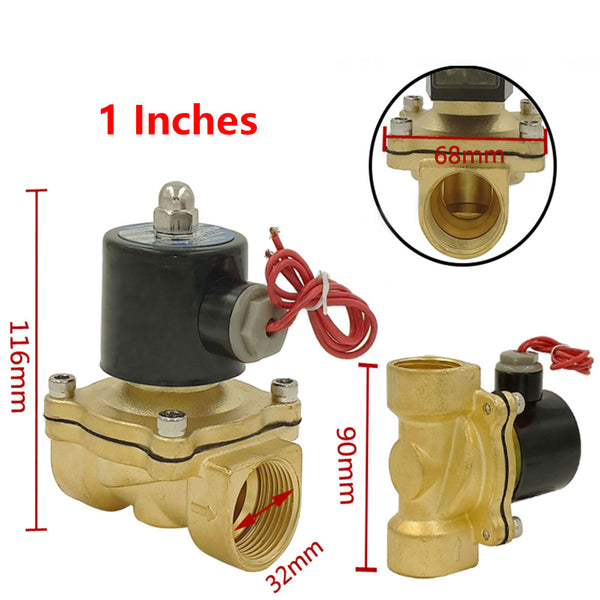

Pipe size: 1/8 ",1/4 ", 3/8 ",1/2", 3/4 ", 1", 1.2", 1.5", 2" optional
Thread type: G1/8 ", G1/4 ", G3/8 ", G1/2", G3/4 ", G1", G1.2", G1.5", G2", optional
Internal diameter: 9MM, 12MM, 15MM, 20MM, 25MM, 32MM, 40MM, 45MM, 58MM optional
Solenoid valve type: Normally Closed (power on, solenoid valve open; power off, solenoid valve close)
Working Temperature: -10°C to +100°C
Operating Pressure: 0~1.0Mpa (0~10kg/cm²)
Material of valve body and coil: 100% Brass
Matching Transmitters:
The receiver can work with different transmitters, such as model C-2 (100 meters / 300 feet range), CP-2 (500 meters / 1500 feet range), CD-2 (Industrial, 1000 meters / 3000 feet range), or CB-2 (1000 meters / 3000 feet range).
Working Range:
With a transmitter (such as C-2) to form a complete set, the maximum working distance can reach 100 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-2 transmitter.
Setting different control modes:
1) Setting Self-locking mode: Connect to the two setting ports on the receiver until signal LED flashes 3 times, then disconnect.
Press button A of the transmitter: The terminals "OUT1" on the receiver outputs DC power, and the connected solenoid valve works.
Press button A of the transmitter again: The terminals "OUT1" on the receiver stops outputting DC power, and the connected solenoid valve stops working.
2) Setting Momentary mode: Connect to the two setting ports on the receiver until signal LED flashes 2 times, then disconnect.
Press and hold button A of the transmitter: The terminals "OUT1" on the receiver outputs DC power, and the connected solenoid valve works.
Release button A of the transmitter: The terminals "OUT1" on the receiver stops outputting DC power, and the connected solenoid valve stops working.
3) Setting Interlocking mode: Connect to the two setting ports on the receiver until signal LED flashes 1 time, then disconnect.
Press button A of the transmitter: The terminals "OUT1" on the receiver outputs DC power, and the connected solenoid valve works.
Press button B of the transmitter: The terminals "OUT1" on the receiver stops outputting DC power, and the connected solenoid valve stops working.
