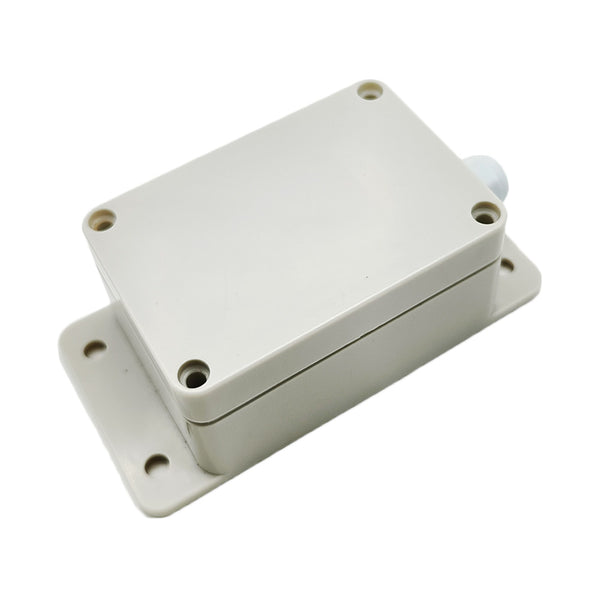

120V 220V 30A Wireless RF Switch 1 Way AC Input Output Radio Receiver (Model: 0020053)

Regular price $45.00

Shipping calculated at checkout.

Package Include:
1 x Receiver: S1PX-AC
1 x User manual

Application:
This is single phase 120V 220V high power 30A waterproof wireless RF switch radio receiver, with 1 channel AC input output.
For long range remote control AC electrical equipments, such as lamp, lights, LED lighting, motor, fan, pump, solenoid valves, door lock, heater, etc.

Feature:
Wireless remote control, easy to install.

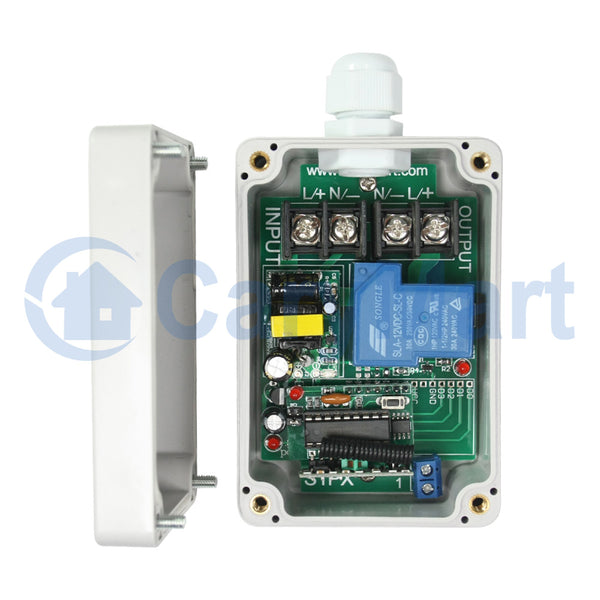

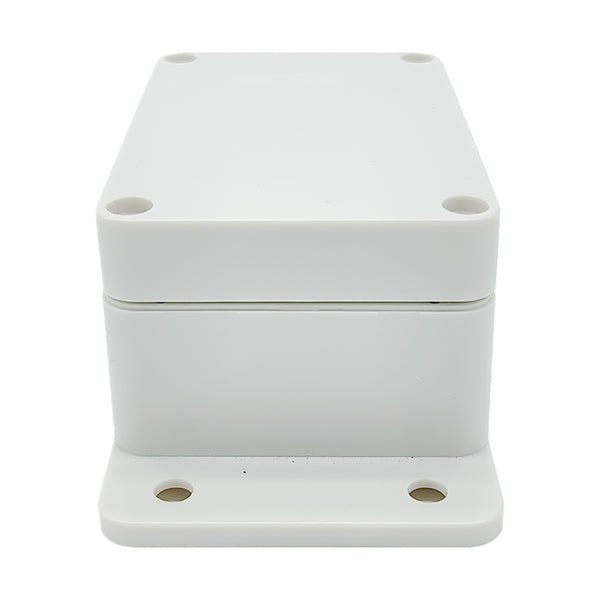

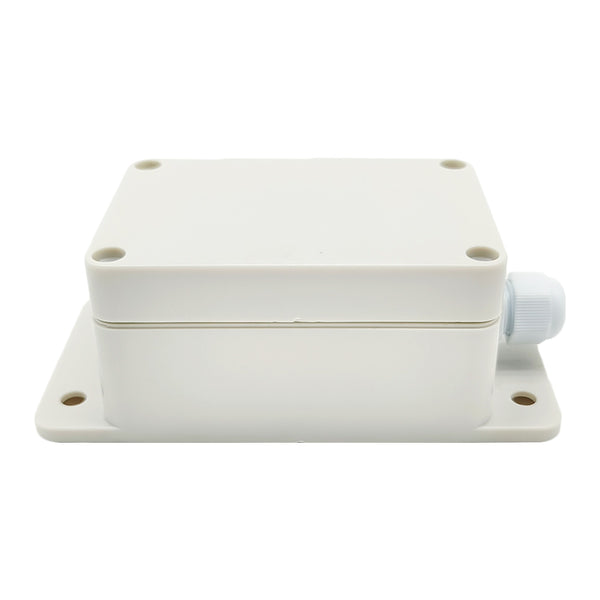

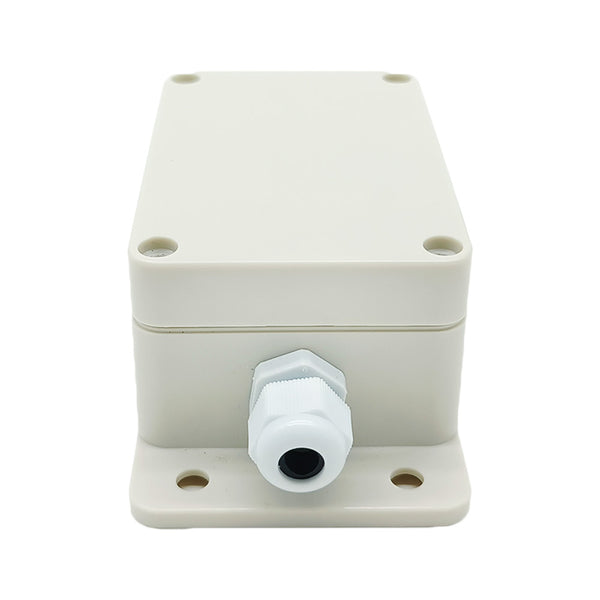

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support 110V AC (100V~120V) used in US, Canada, etc, and 220V AC (200V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
High Power: Each channel can work at maximum load current 30A.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

Receiver Parameters:
Model No.: S1PX-AC
Operating Voltage: single phase 100~240VAC (110V/120V/220V/240V)
Output Type: 100~240VAC (110V/120V/220V/240V)
Channel: 1 Way
3 Control Modes: Self-locking, Momentary, Interlocking
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 30A
Working Frequency: 433.92 MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C
PCB size: 90 x 59 x 18 mm (3.5 x 2.3 x 0.7 inches)

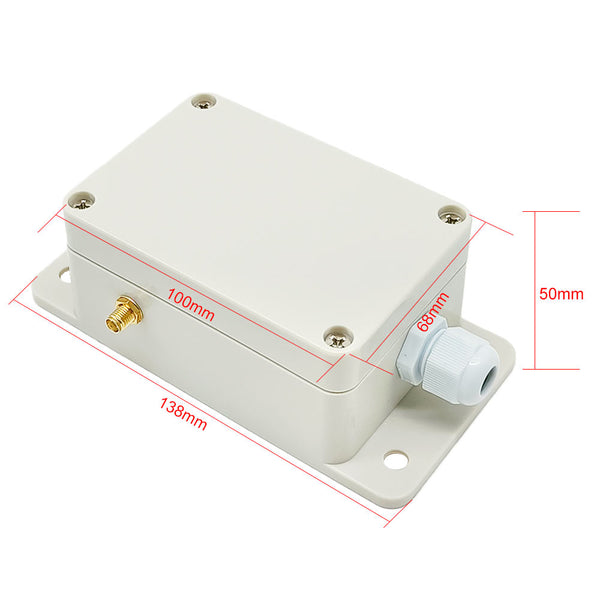

Case size: 100 x 68 x 50 mm (4.0 x 2.7 x 2.0 inches)

Matching Transmitters:
The receiver can work with different transmitters.
When you set the receiver in Self-locking mode or Momentary mode, it should work with single button transmitter, such as model C-1 (100 meters / 300 feet range)CP-1 (500 meters / 1500 feet range), or CB-1 (1000 meters / 3000 feet range).
When you set the receiver in Interlocking mode, it should work with two buttons transmitter, such as model C-2 (100 meters / 300 feet range)CP-2 (500 meters / 1500 feet range)CD-2 (Industrial, 1000 meters / 3000 feet range), or CB-2 (1000 meters / 3000 feet range).

Working Range:
With a transmitter (such as C-2) to form a complete set, the maximum working distance can reach 100 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-2 transmitter.

Usage:
The receiver can be used to control AC 110~240V equipments.

Wiring:
If you want to control AC 120V or 220V equipment, do as following:

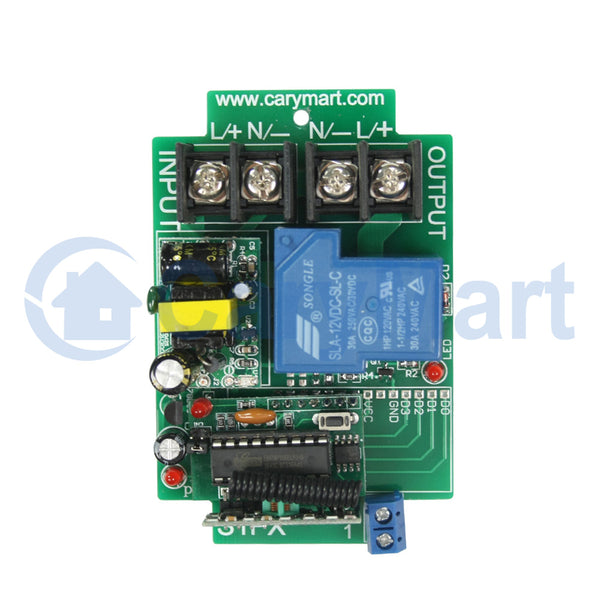

1) Connect the live wire of single-phase AC power supply to input terminal “L/+” on the radio receiver;
2) Connect the neutral wire of single-phase AC power supply to input terminal “N/-” on the radio receiver;
3) Connect one side of AC device to output terminal “L/+” on the radio receiver;
4) Connect another side of AC device to output terminal “N/-” on the radio receiver.

Setting different control modes:
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter C-1:
Press and hold the button of the transmitter: The output terminals of the receiver outputs AC power, and the connected lamp is turned on.
Release the button of the transmitter: The output terminals of the receiver stops outputting, and the connected lamp is turned off.

2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter C-1:
Press the button of the transmitter: The output terminals of the receiver outputs AC power, and the connected lamp is turned on.
Press the button of the transmitter again: The output terminals of the receiver stops outputting, and the connected lamp is turned off.

3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
The operation of Interlocking mode with the transmitter C-2:
Press the button A of the transmitter: The output terminals of the receiver outputs AC power, and the connected lamp is turned on.
Press the button B of the transmitter: The output terminals of the receiver stops outputting, and the connected lamp is turned off.

How to pair the transmitter to the receiver:
1) Press the learning button once in the receiver, signal LED on the receiver flashes one time and then stays on, this indicates that the receiver enters the learning status.
2) Pair the C-1 transmitter: Press the button on transmitter, if the signal LED flashes one time, this indicates that the pairing is successful.
Pair the C-2 transmitter: Press button A on transmitter, if the signal LED flashes one time, this indicates that the pairing with button A is successful. Then press button B on transmitter, if the signal LED flashes one time, this indicates that the pairing with button B is successful.
3) Press the learning button in the receiver again for 1-2 seconds, signal LED turns off, this indicates that the receiver exits the learning status.
4) The receiver can learn several transmitters with different codes.

How to delete all transmitters codes stored in the receiver:
Press the learning button in the receiver 10 times and then release the learning button, signal LED flashes 10 times quickly and then goes off, this indicates that all stored codes have been deleted successfully.
