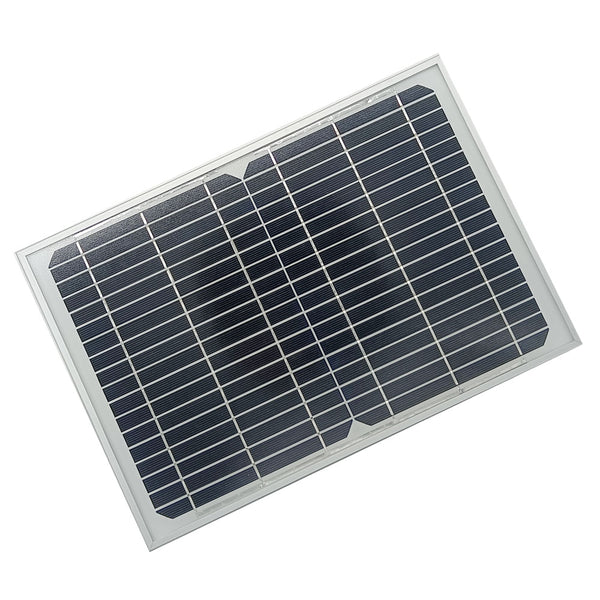

10W 18V Mini Portable Solar Panel or Photovoltaic Panel (Model: 0010204)

Regular price $55.00

Shipping calculated at checkout.
Package Include:
1 x 10W 18V polysilicon portable solar panels

Polycrystalline Silicon Material.
Waterproof laminated panel construction.

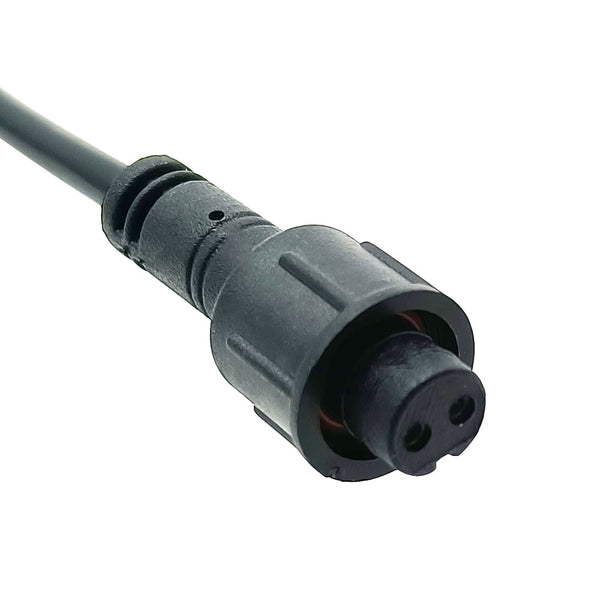

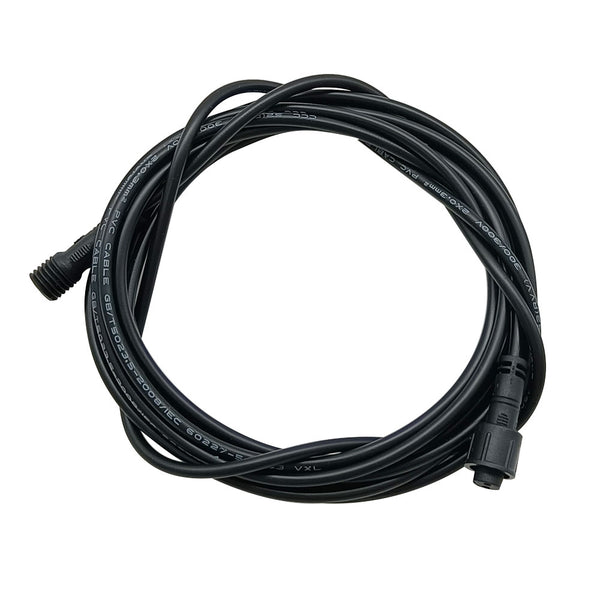

Includes 20CM cable with water-tight connectors.
2 year warranty.
High conversion rate, high efficiency output.
100% power output - clear sky midday sun with the panel fully tilted toward the sun's position in the sky.
70-80% power output - clear sky midday sun but with the panel laid flat.
40-60% power output - thin cloud, or intermittent small clouds.
10-20% power output - midday overcast sky or rainy conditions.

Max Power: 10W
Max Output Voltage: DC 18V
Max Output Current: 500MA
Open Circuit Voltage: DC 22V
Short Circuit Current: 600MA
Power Tolerance: ±5%
Operating temperature: -10°C ~ +85°C
Size: 350mm x 240mm x 17mm

It is important electric parts for transferring the sun light power into electrical power for your application.
Suitable for all kinds of small power appliances (such as emergency lights, advertising lights, traffic lights, household lights, electric fans), solar water pumps, solar street lamps, wireless control devices.
It can be used as an alternative charger for any 12V lithium battery or lead acid battery.
With 12V lithium battery and Solar Charge Controller to form a solar panel kit that can be used as a power source for our radio transmitter or wireless receiver.
