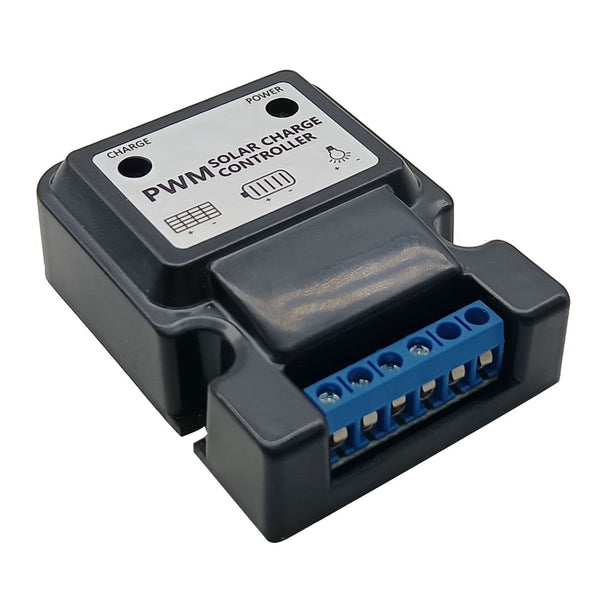

PWM Solar Charge Controller 11.1V 3A For 12V Lithium Battery (Model: 0010207)

Regular price $12.00

Shipping calculated at checkout.
Package Include:
1 x 11.1V/3A Solar charge controller (Special for 12V lithium battery)
1 x User manual

Applications:
This solar charge controller and a solar panel forms a mini monocrystalline silicon solar panel charging system that can be used as an alternative charger for any 12V lithium battery.
This solar charge controller and a 12V lithium battery with a solar panel form a solar panel kit that can be used as a power source for our wireless transmitter or receiver.
Suitable for all kinds of small power appliances, such as emergency lights, advertising lights, traffic lights, household lights, electric fans, solar water pumps, solar street lamps, wireless control devices.

Product parameters:
Rated Voltage: 11.1V
Charge Cut-off Voltage: 12.6V
Discharge Cut-off Voltage: 9.6V
Max Solar Panel Voltage: 30V DC
Max Charging Current: 3A
Max Load Current: 3A
Static Current: ≤3mA
Charging Mode: PWM
Fully automatic operation
With charge LED indicator and power LED indicator
Three operating modes selectable: normally open mode, light control mode, light and timer control mode.
Comprehensive protection: overcharge protection, over discharge protection, overload protection, short circuit protection, reverse polarity protection.
Overload protection: When the load current reaches 4.5A, the controller shuts down the load output after 5 minutes; when the load current reaches 9A or above, the controller shuts down the load output immediately.
Operating temperature: -20°C ~ +70°C
Size: 77 x 51 x 22 mm (3 x 2 x 0.9 inches)
