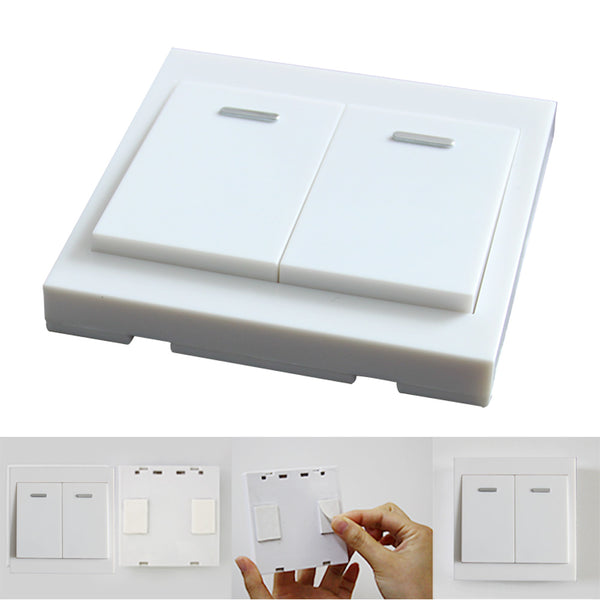

2 Buttons 86 Type Wall Mounted 12V Wireless RF Remote Control Transmitter (Model: 0021081)

Regular price $16.00

Shipping calculated at checkout.
This 2 buttons 86 type wall mounted 12V wireless RF remote control or radio transmitter. It has working distance 50 meters, ultra-high receiving sensitivity, superior anti-interference ability, and smaller power consumption.
It and the wireless RF receiver form a wireless remote control switch kit. The kit can long range remote control AC and DC equipments, such as light, lamp, locks, motor, pump, fans, doors, windows, electric solenoid valves, etc.

Working Range:
With the receiver forming a complete set, the maximum working distance may reach 50 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.

Model No.: 0021081 (HR-2)
Shell Color: White
Channel/Button: 2
Button Symbol: no symbol
Operating Voltage: 12V (1 x 27A -12V battery, can be used for 12 months)
Operating Current: 4mA
Encoding Chip: EV1527
Transmitting Distance: 50 meters / 150ft (theoretically)
Modulation Mode: ASK
Operating Frequency: 433MHz
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 86mm x 86mm x 16mm
