Package Include:

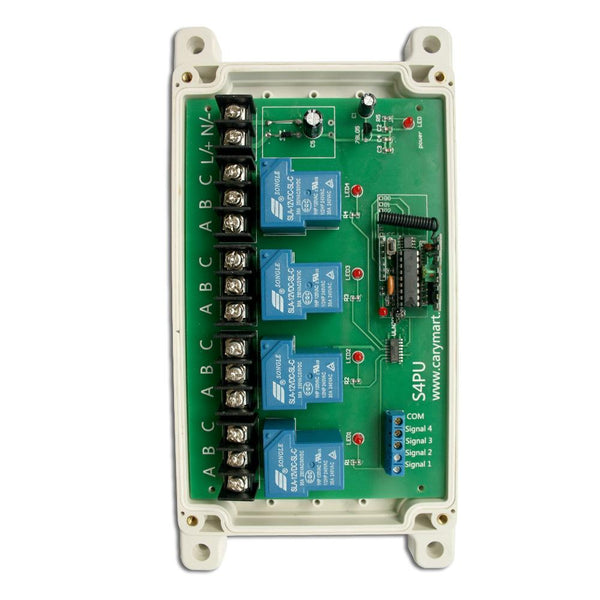

1 x Receiver: S4PU-DC-ANT3
1 x Transmitter: CB-4
1 x User manual
Application:
This is a long distance 6000ft DC 6V 9V 12V 24V high power 30A wireless remote control switch kit, with 4 channels relay output waterproof radio receiver and RF transmitter.
It can long range remote control DC or AC electric equipments, such as LED light, lamp, lock, motor, pump, fan, linear actuator, solenoid valve, etc.
Feature:
Wireless control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Power Supply: Four working voltage versions, DC 6V, 9V, 12V, 24V.
Relay Output: This receiver is dry relay output, it can be used to operate both DC and AC equipments. The output terminals are NO / NC (normally open / normally closed), which serves as a switch. That means you should also connect a separate power supply to equipments.
High Power: Each channel can work at maximum current 30A.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model No.: S4PU-DC06 / S4PU-DC09 / S4PU-DC12 / S4PU-DC24
Power Supply (Operating Voltage): DC6V (S4PU-DC06), DC9V±1V (S4PU-DC09), DC12V±1V (S4PU-DC12), DC24V±2V (S4PU-DC24)
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Channel: 4 Way
4 Selectable Working Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking
Static Current: ≤6mA
Maximum Load Current each channel: 30A
Wire range for the terminals: 22-12 AWG
Working Frequency: 433MHz
Operating Temperature: -20 ° C to +70 ° C
PCB size: 170mm x 100mm x 18mm
Case size: 200mm x 120mm x 53mm

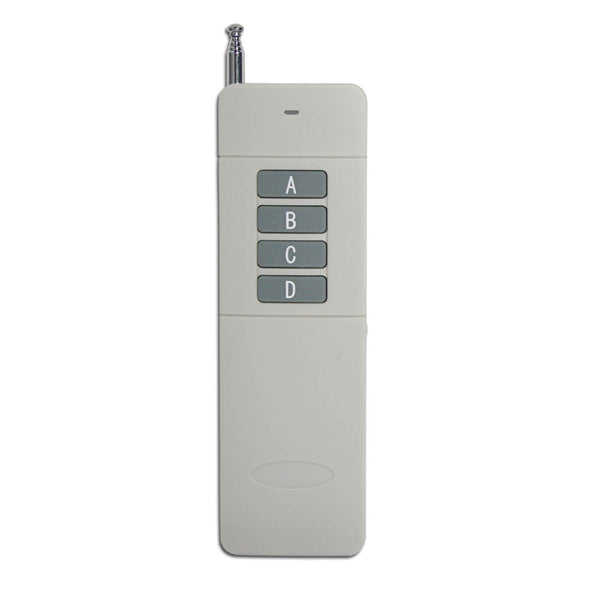

Transmitter Parameters:
Model No.: 0021026 (CB-4)
Channel/Button: 4
Button Symbol: A, B, C, D
Operating Voltage: 9V (1 x 6F22 -9V battery)
Operating Current: 30mA
Operating Frequency: 433.92MHz
Encoding Chip: PT2262 / PT2264 / SC2262
Transmitting Distance: 1000 meters / 3000ft (theoretically)
It has an on / off button on the side.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: Unit Size: 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches)
Matching Transmitters:
The receiver can work with different transmitters. such as model C-4 (100 Meter / 300 feet range), CP-4 (500 Meter / 1500 feet range), CD -4 (1000 meters, waterproof, industrial), or CB-4 (1000 Meter / 3000 feet range).
Working Range:
With a transmitter (such as CB-4) to form a complete set, the maximum working distance can reach 2000 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater.
Usage:

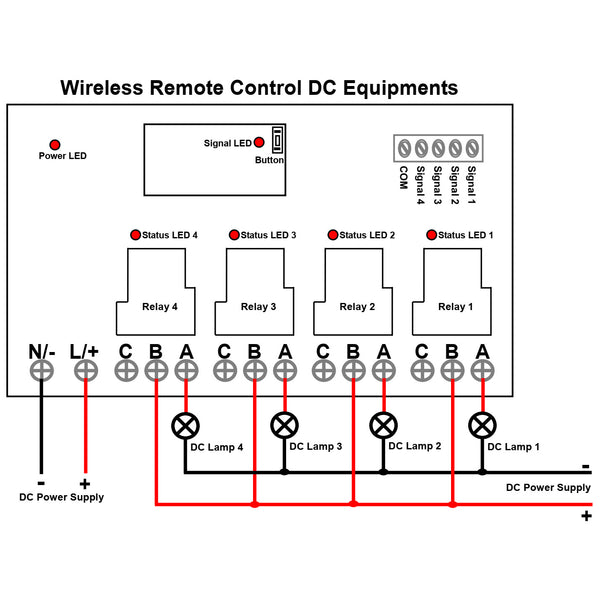

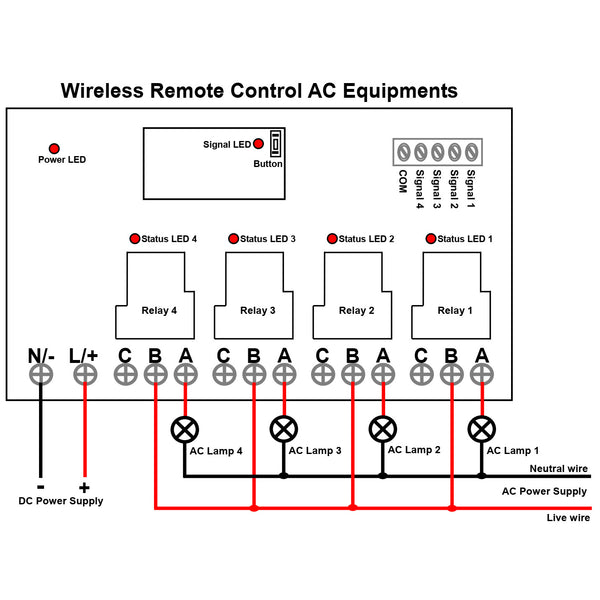

The receiver can be used to control both DC 0~28V and AC 110~240V equipments.
Notice: The receiver is relay output, not DC/AC power output. Initial state of relay output terminals: Terminals A and B are Normally Open; Terminals A and C are Normally Closed.
Setting different control modes:
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter CB-4:
Press and hold the button A on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on.
Release the button A: The relay 1 is deactivated, and the connected lamp 1 is turned off.
Press and hold the button B on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on.
Release the button B: The relay 2 is deactivated, and the connected lamp 2 is turned off.
Press and hold the button C on the transmitter: The relay 3 in the receiver is activated, and the connected lamp 3 is turned on.
Release the button C: The relay 3 is deactivated, and the connected lamp 3 is turned off.
Press and hold the button D on the transmitter: The relay 4 in the receiver is activated, and the connected lamp 4 is turned on.
Release the button D: The relay 4 is deactivated, and the connected lamp 4 is turned off.
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter CB-4:
Press the button A on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on.
Press the button A again: The relay 1 is deactivated, and the connected lamp 1 is turned off.
Press the button B on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on.
Press the button B again: The relay 2 is deactivated, and the connected lamp 2 is turned off.
Press the button C on the transmitter: The relay 3 in the receiver is activated, and the connected lamp 3 is turned on.
Press the button C again: The relay 3 is deactivated, and the connected lamp 3 is turned off.
Press the button D on the transmitter: The relay 4 in the receiver is activated, and the connected lamp 4 is turned on.
Press the button D again: The relay 4 is deactivated, and the connected lamp 4 is turned off.
3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
The operation of Interlocking mode with the transmitter CB-4:
Press the button A on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on; Other 3 relay are deactivated, and connected lamps are turned off.
Press the button B on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on; Other 3 relay are deactivated, and connected lamps are turned off.
Press the button C on the transmitter: The relay 3 in the receiver is activated, and the connected lamp 3 is turned on; Other 3 relay are deactivated, and connected lamps are turned off.
Press the button D on the transmitter: The relay 4 in the receiver is activated, and the connected lamp 4 is turned on; Other 3 relay are deactivated, and connected lamps are turned off.
4) Setting Momentary (Channel 1~2) + Self-locking (Channel 3~4) mode: Press the learning button in the receiver 5 times, signal LED continuously flashes 5 times and then goes off.
