2000 Meters 4 Channel AC120V 220V 30A Wireless Remote Control Receiver Kit (Model: 0020479)

Regular price $128.00

Shipping calculated at checkout.

Package Include:

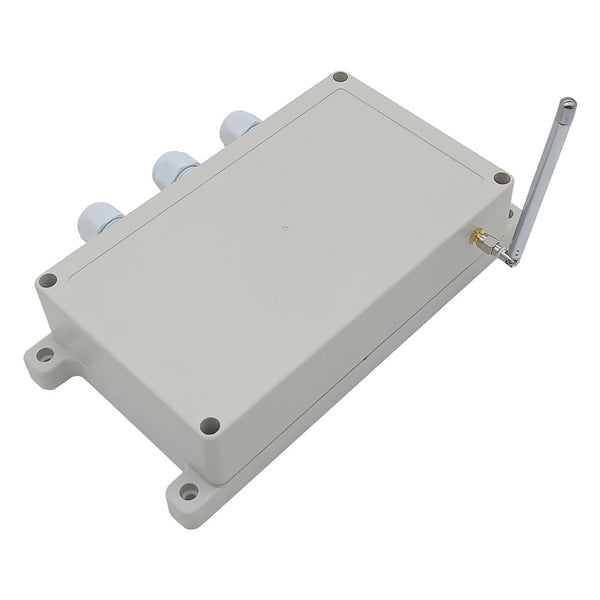

1 x Receiver: S4PX-AC-ANT3
1 x Transmitter: CB-4
1 x User manual

Application:
This is a long distance 110V 220V high-power wireless remote control switch kit, with 4 channels AC power input output radio receiver and RF transmitter.
The kit can long range control AC equipments,  such as LED lighting, lamp, electrical lock, motor, pump, fan, solenoid valve, etc.

Feature:
Wireless remote control, easy to install.

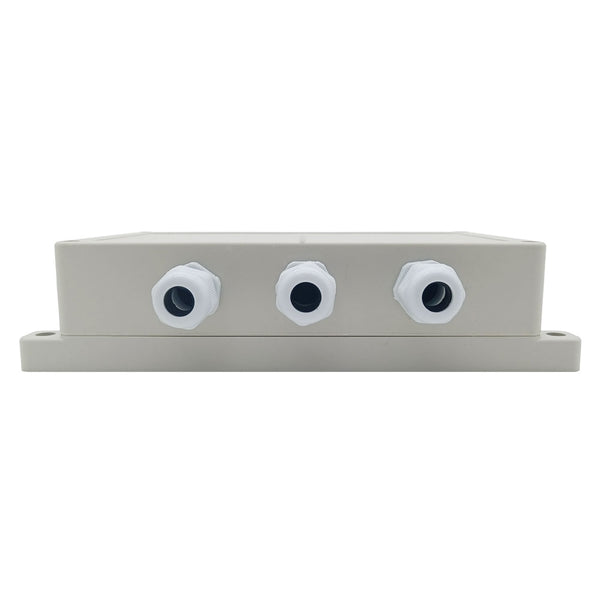

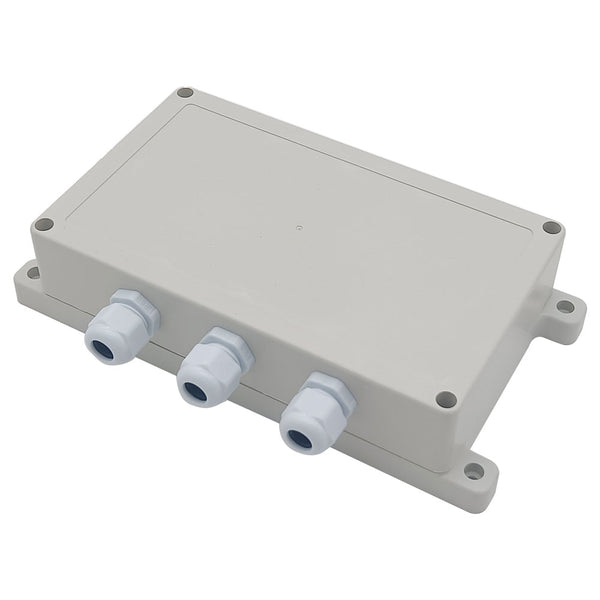

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support 110V AC (100V~120V) used in US, Canada, etc, and 220V AC (200V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
High Power: Each channel can work at maximum current 30A.

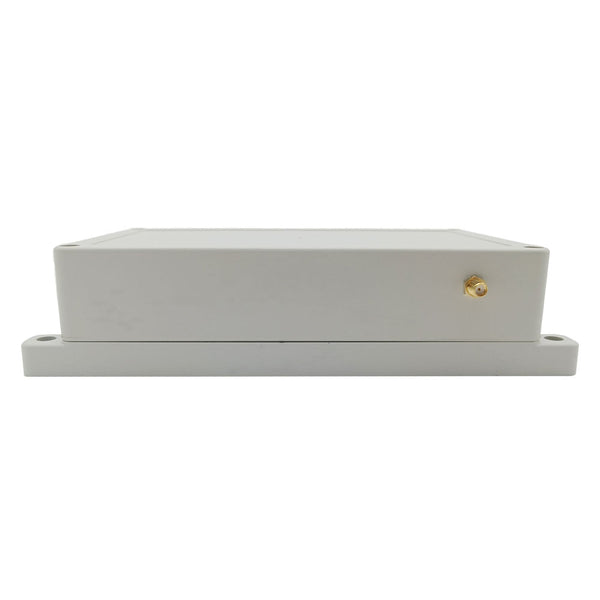

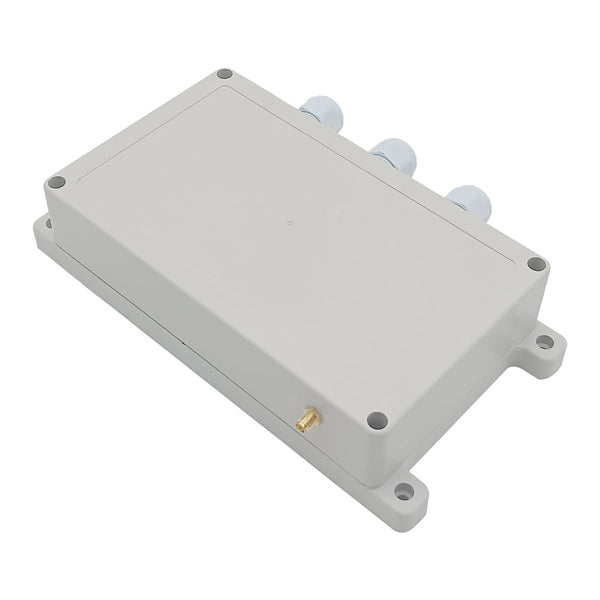

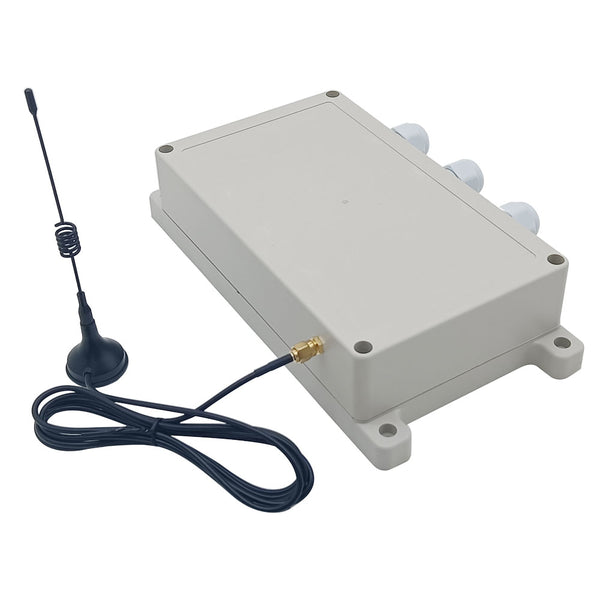

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

Receiver Parameters:
Model No.: S4PX-AC-ANT3
Operating Voltage: 100~240VAC (110V/120V/220V/240V)
Output Type: 100~240VAC (110V/120V/220V/240V)
Channel: 4 CH
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 30A / each channel
4 Selectable Working Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking
Working Frequency: 433.92 MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C
PCB size: 170mm x 109mm x 18mm

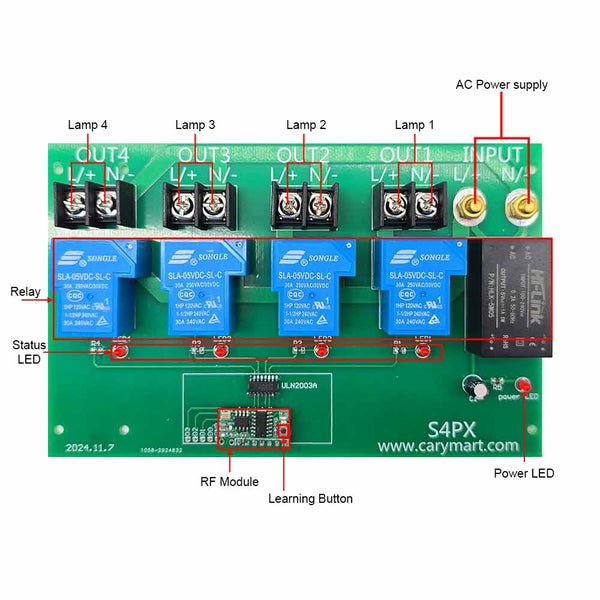

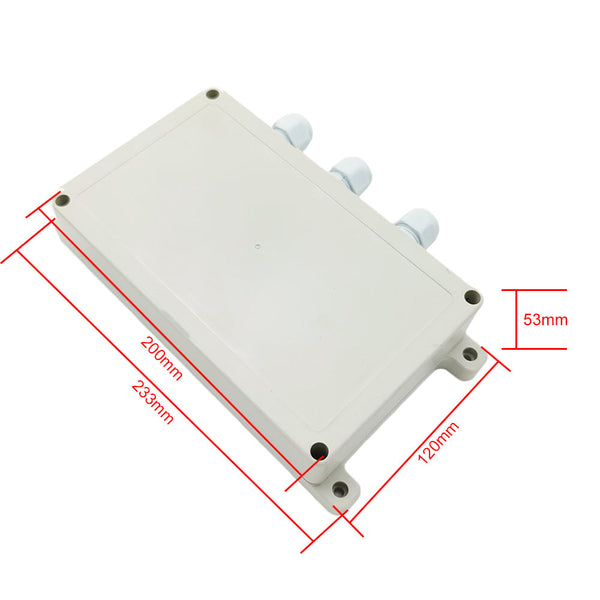

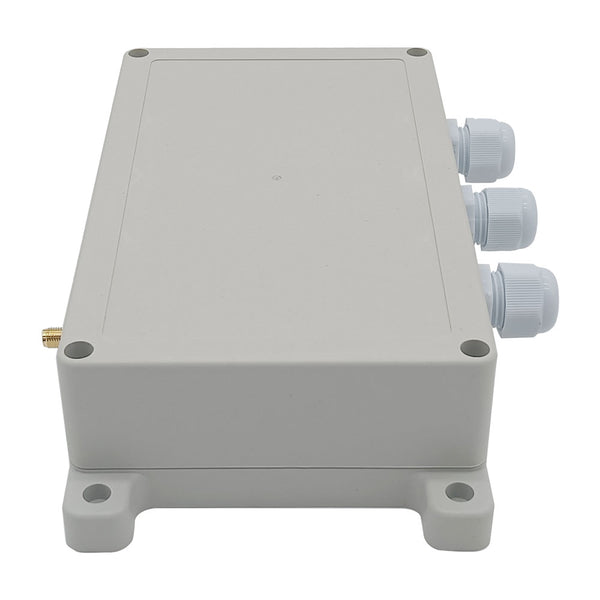

Case size:200mm x 120mm x 53mm

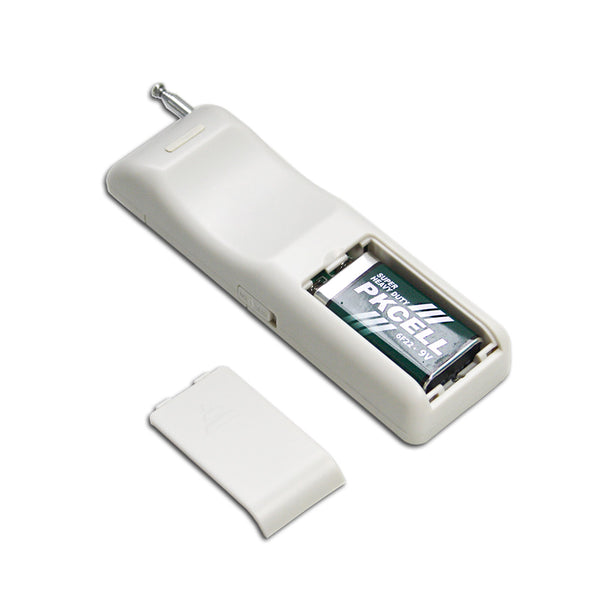

Transmitter Parameters:

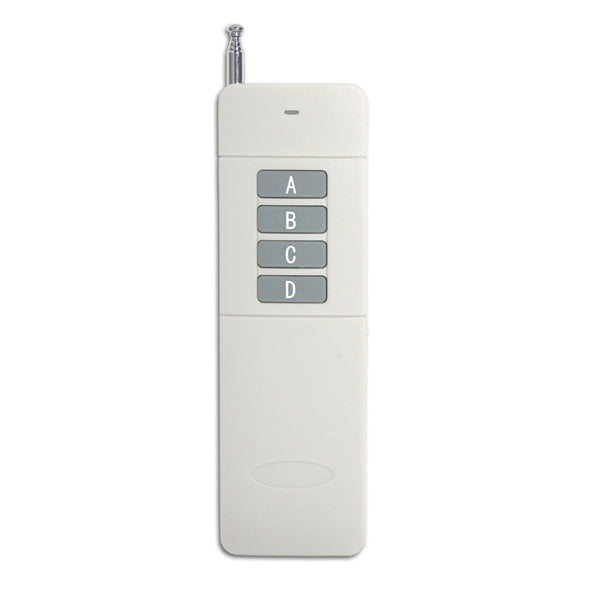

Model No.: 0021026 (CB-4)
Channel/Button: 4
Button Symbol: A, B, C, D
Operating Voltage: 9V (1 x 6F22 -9V battery)
Operating Current: 30mA
Operating Frequency: 433.92MHz
Encoding Chip: PT2262 / PT2264 / SC2262
Transmitting Distance: 1000 meters / 3000ft (theoretically)
It has an on / off button on the side.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: Unit Size: 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches)

Matching Transmitters:
The receiver can work with different transmitters, such as model C-4 (100 meters), CP-4 (500 meters)  CD -4 (1000 meters, waterproof, industrial), or CB -4 (1000 meters).

Working Range:
With a transmitter (such as CB-4) to form a complete set, the maximum working distance can reach 2000 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater.

Usage:
The receiver can be used to control AC 110~240V equipments.

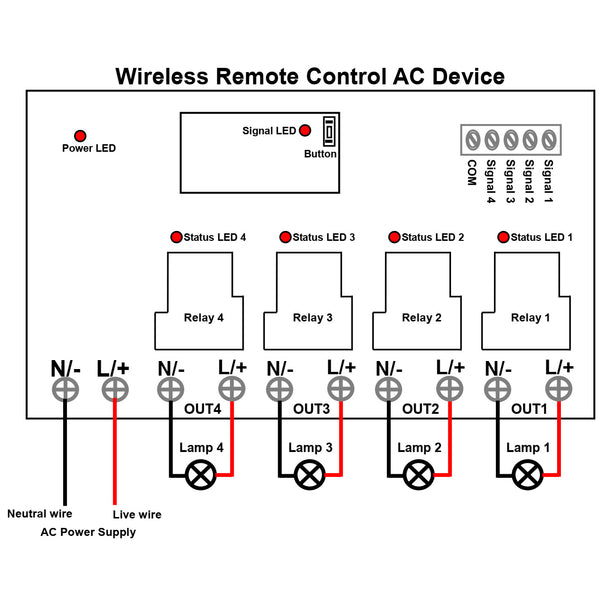

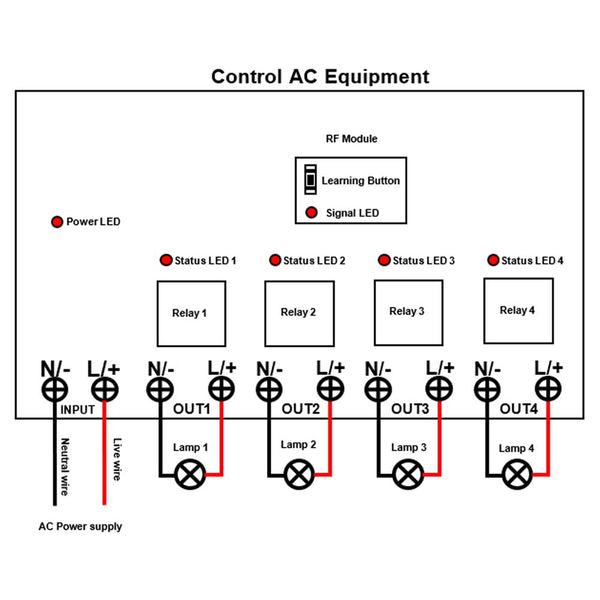

Wiring:
1) Connect one end of the AC device to the output terminal "L/+" of the receiver;
2) Connect the other end of the AC device to the output terminal "N/-" of the receiver;
3) Connect the live wire of the AC power supply to the input terminal "L/+" of the receiver;
4) Connect the neutral wire of the AC power supply to the input terminal "N/-" of the receiver.

Setting different control modes:
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter CB-4:
Press and hold button A of the transmitter: Terminals “OUT1” of receiver outputs AC power, and the connected lamp 1 is turned on.
Release the button A of the transmitter: Terminals “OUT1” of receiver stops outputting, and the connected lamp 1 is turned off.
Press and hold button B of the transmitter: Terminals “OUT2” of receiver outputs AC power, and the connected lamp 2 is turned on.
Release the button B of the transmitter: Terminals “OUT2” of receiver stops outputting, and the connected lamp 2 is turned off.
Press and hold button C of the transmitter: Terminals “OUT3” of receiver outputs AC power, and the connected lamp 3 is turned on.
Release the button C of the transmitter: Terminals “OUT3” of receiver stops outputting, and the connected lamp 3 is turned off.
Press and hold button D of the transmitter: Terminals “OUT4” of receiver outputs AC power, and the connected lamp 4 is turned on.
Release the button D of the transmitter: Terminals “OUT4” of receiver stops outputting, and the connected lamp 4 is turned off.

2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter CB-4:
Press button A of the transmitter: Terminals “OUT1” of receiver outputs AC power, and the connected lamp 1 is turned on.
Press button A of the transmitter again: Terminals “OUT1” of receiver stops outputting, and the connected lamp 1 is turned off.
Press button B of the transmitter: Terminals “OUT2” of receiver outputs AC power, and the connected lamp 2 is turned on.
Press button B of the transmitter again: Terminals “OUT2” of receiver stops outputting, and the connected lamp 2 is turned off.
Press button C of the transmitter: Terminals “OUT3” of receiver outputs AC power, and the connected lamp 3 is turned on.
Press button C of the transmitter again: Terminals “OUT3” of receiver stops outputting, and the connected lamp 3 is turned off.
Press button D of the transmitter: Terminals “OUT4” of receiver outputs AC power, and the connected lamp 4 is turned on.
Press button D of the transmitter again: Terminals “OUT4” of receiver stops outputting, and the connected lamp 4 is turned off.

3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
The operation of Interlocking mode with the transmitter CB-4:
Press button A of the transmitter: Terminals “OUT1” of receiver outputs AC power, and the connected lamp 1 is turned on; The other three output terminals stop outputting, and the other three lamps are turned off.
Press button B of the transmitter: Terminals “OUT2” of receiver outputs AC power, and the connected lamp 2 is turned on; The other three output terminals stop outputting, and the other three lamps are turned off.
Press button C of the transmitter: Terminals “OUT3” of receiver outputs AC power, and the connected lamp 3 is turned on; The other three output terminals stop outputting, and the other three lamps are turned off.
Press button D of the transmitter: Terminals “OUT4” of receiver outputs AC power, and the connected lamp 4 is turned on; The other three output terminals stop outputting, and the other three lamps are turned off.

4) Setting Momentary (Channel 1~2) + Self-locking (Channel 3~4) mode: Press the learning button in the receiver 5 times, signal LED continuously flashes 5 times and then goes off.
