4 Channel AC High Power 30A Waterproof Wireless Remote Control Switch Kit (Model: 0020448)

Regular price $112.00

Shipping calculated at checkout.

Application:
This wireless switch or radio receiver is an electric device with 4 channels dry relay output (Normally open and normally closed), it and the transmitter form a receiver transmitter system. This kit may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, aerial vehicle, etc. It can remote control equipment on land, water and air, such as remote control of lights, sirens, locks, motors, pumps, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, and business signs. The applications are endless.

Feature:
Wireless control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support voltage of AC110V (100V~120V), widely used in US, Canada... and voltage of AC220V (200V~240V), used in UK, France...
Relay Output: This receiver is dry relay output, it can be used to operate both DC and AC equipments. The output terminals are NO / NC (normally open / normally closed), which serves as a switch. That means you should also connect a separate power supply to equipments.
High Power: Each channel can work at maximum current 30A.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

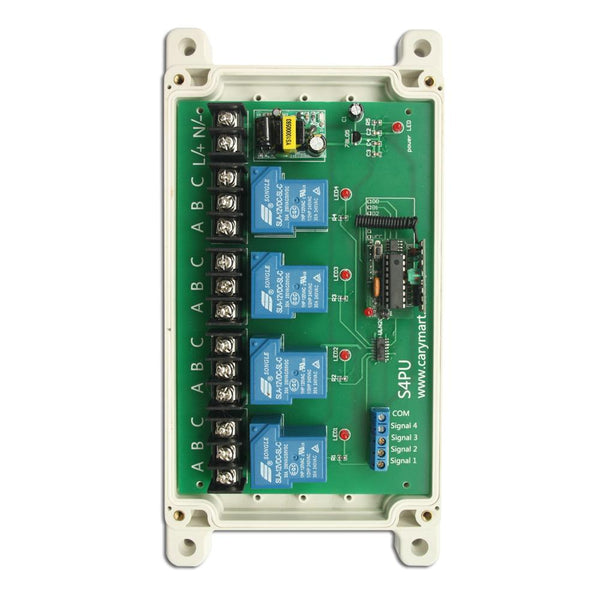

Receiver Parameters:
Model No.: S4PU-AC-ANT3
Power Supply (Operating Voltage): AC100~240V (110V/120V/220V/240V)
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Wire range for the terminals: 22-12 AWG
Working Frequency: 433.92MHz
Channel: 4 CH
Control Modes: Self-locking, Momentary, Interlocking
Static Current: ≤6mA
Maximum Load Current: 30A / each channel
Operating Temperature: -20 ° C to +70 ° C
PCB size: 170mm x 100mm x 18mm
Case size: 200mm x 120mm x 53mm

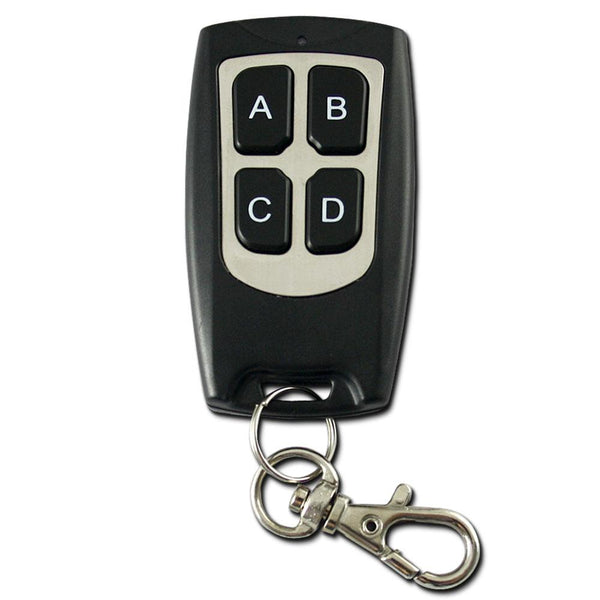

Transmitter Parameters:
Model No.: CWB-4
Waterproof
Channel/Button: 4
Button Symbol: A, B, C, D
Operating Voltage: 6V (2 x CR2016 -3V button cell batteries,, can be used for 12 months)
Operating Current: 5mA
Operating Frequency: 433 MHz
Transmitting Distance: 50m / 150ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 56mm x 32mm x 12mm

Matching Transmitters:
The receiver can work with different transmitters. such as model C-4 (100 Meter / 300 feet range)CP-4 (500 Meter / 1500 feet range), or CB-4 (1000 Meter / 3000 feet range).

Working Range:
With a transmitter (such as CWB-4) to form a complete set, the maximum working distance can reach 50 Meter in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can replace external antenna of the receiver or use a high-power transmitter, such as CB-4 transmitter.

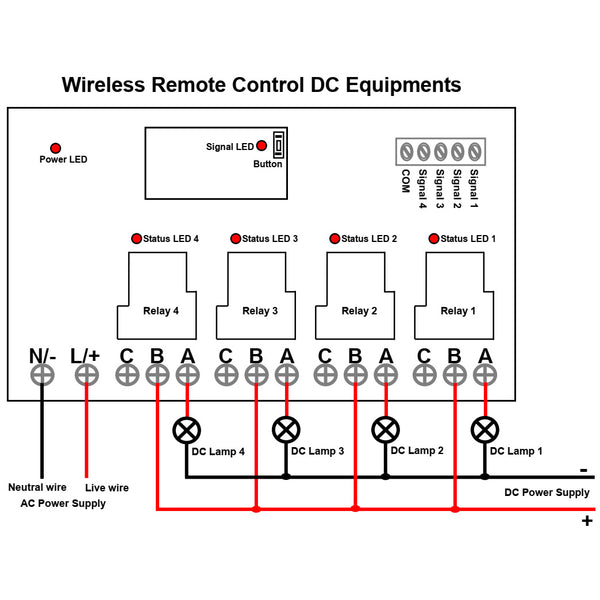

Setting different control modes:
1) Setting Self-locking mode: Press and hold the button of receiver until signal LED flashes 3 times, then release button.
Control mode Self-locking (working with transmitter CWB-4): Press -> On; Press again -> Off.
Press the button A on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on.
Press the button A again: The relay 1 is deactivated, and the connected lamp 1 is turned off.
Press the button B on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on.
Press the button B again: The relay 2 is deactivated, and the connected lamp 2 is turned off.
Press the button C on the transmitter: The relay 3 in the receiver is activated, and the connected lamp 3 is turned on.
Press the button C again: The relay 3 is deactivated, and the connected lamp 3 is turned off.
Press the button D on the transmitter: The relay 4 in the receiver is activated, and the connected lamp 4 is turned on.
Press the button D again: The relay 4 is deactivated, and the connected lamp 4 is turned off.

2) Setting Momentary mode: Press and hold the button of receiver until signal LED flashes 2 times, then release button.
Control mode Momentary (working with transmitter CWB-4): Press and hold -> On; Release -> Off.
Press and hold the button A on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on.
Release the button A: The relay 1 is deactivated, and the connected lamp 1 is turned off.
Press and hold the button B on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on.
Release the button B: The relay 2 is deactivated, and the connected lamp 2 is turned off.
Press and hold the button C on the transmitter: The relay 3 in the receiver is activated, and the connected lamp 3 is turned on.
Release the button C: The relay 3 is deactivated, and the connected lamp 3 is turned off.
Press and hold the button D on the transmitter: The relay 4 in the receiver is activated, and the connected lamp 4 is turned on.
Release the button D: The relay 4 is deactivated, and the connected lamp 4 is turned off.

3) Setting Interlocking mode: Press and hold the button of receiver until signal LED flashes 1 time, then release button.
Control mode Interlocking (working with transmitter CWB-4): Press -> On, Press another button -> Off.
Press the button A on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on; Other 3 relay are deactivated, and connected lamps are turned off.
Press the button B on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on; Other 3 relay are deactivated, and connected lamps are turned off.
Press the button C on the transmitter: The relay 3 in the receiver is activated, and the connected lamp 3 is turned on; Other 3 relay are deactivated, and connected lamps are turned off.
Press the button D on the transmitter: The relay 4 in the receiver is activated, and the connected lamp 4 is turned on; Other 3 relay are deactivated, and connected lamps are turned off.

Package Include:
1 x Receiver: S4PU-AC-ANT3
2 x Transmitter: CWB-4
1 x User manual
