4 Channel AC120V 220V 30A Input Output Wireless Remote Control Switch Kit (Model: 0020477)

Regular price $112.00

Shipping calculated at checkout.

Package Include:

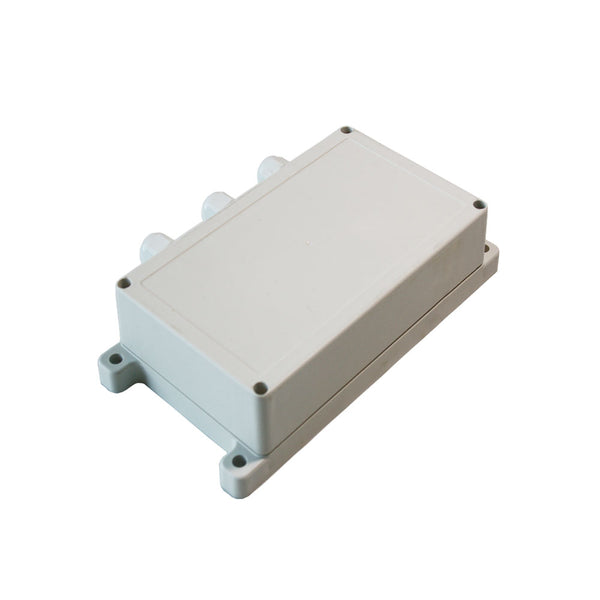

1 x Receiver: S4PX-AC

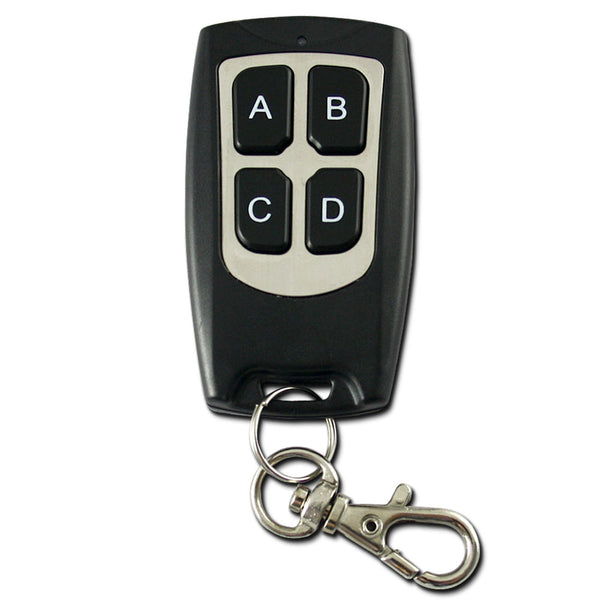

2 x Transmitter: CWB-4
1 x User manual

Application:
This waterproof wireless remote control switch kit with 4 channels AC 120V 220V power input output radio receiver and RF transmitter.
This kit may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, etc.
It can long range remote control AC equipments, such as lamp, lights, motor, fan, pump, electric solenoid valves, LED lighting, etc.

Feature:
Wireless remote control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support 110V AC (100V~120V) used in US, Canada, etc, and 220V AC (200V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
High Power: Each channel can work at maximum load current 30A.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

Receiver Parameters:
Model No.: S4PX-AC
Operating Voltage: 100~240VAC (110V/120V/220V/240V)
Output Type: 100~240VAC (110V/120V/220V/240V)
Channel: 4 CH
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 30A / each channel
Selectable Modes: Self-locking, Momentary, Interlocking
Working Frequency: 433.92 MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C
PCB size: 170mm x 109mm x 18mm
Case size:200mm x 120mm x 53mm

Transmitter Parameters:
Model No.: CWB-4
Waterproof
Channel/Button: 4
Button Symbol: A, B, C, D
Operating Voltage: 6V (2 x CR2016 -3V button cell batteries,, can be used for 12 months)
Operating Current: 5mA
Operating Frequency: 433 MHz
Transmitting Distance: 50 meters / 150ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 56mm x 32mm x 12mm

Matching Transmitters:
The receiver can work with different transmitters, such as model C-4 (100 meters)CP-4 (500 meters)  CD -4 (1000 meters, waterproof, industrial), or CB -4 (1000 meters).

Working Range:
With a transmitter (such as CWB-4) to form a complete set, the maximum working distance can reach 50 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-4 transmitter.

Usage:
The receiver can be used to control AC 110~240V equipments.

Wiring:

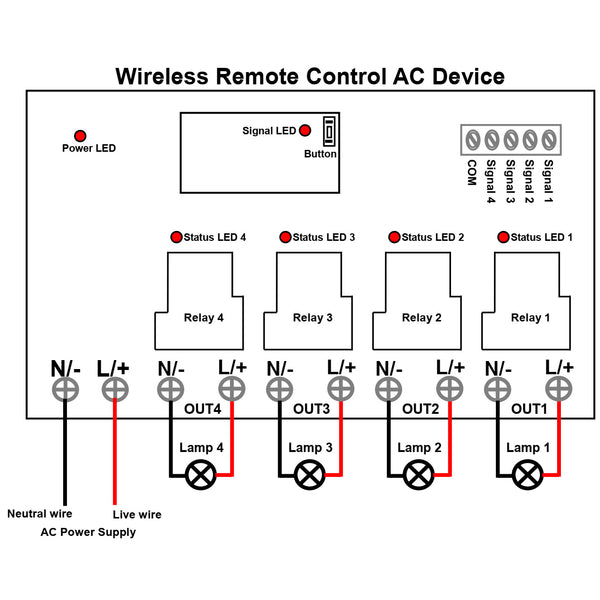

If you want to control an AC 120V or AC220V lamp, do as following:
1) Connect one end of the AC lamp to the output terminal "L/+" of the receiver;
2) Connect the other end of the AC lamp to the output terminal "N/-" of the receiver;
3) Connect the live wire of the AC power supply to the input terminal "L/+" of the receiver;
4) Connect the neutral wire of the AC power supply to the input terminal "N/-" of the receiver.

Setting different control modes:
1) Setting Momentary mode (work with transmitter CWB-4): Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
Press and hold button A of the transmitter: Terminals “OUT1” of receiver outputs AC power, the lamp 1 is turned on.
Release the button A of the transmitter: Terminals “OUT1” of receiver stops outputting, the lamp 1 is turned off.
Press and hold button B of the transmitter: Terminals “OUT2” of receiver outputs AC power, the lamp 2 is turned on.
Release the button B of the transmitter: Terminals “OUT2” of receiver stops outputting, the lamp 2 is turned off.
Press and hold button C of the transmitter: Terminals “OUT3” of receiver outputs AC power, the lamp 3 is turned on.
Release the button C of the transmitter: Terminals “OUT3” of receiver stops outputting, the lamp 3 is turned off.
Press and hold button D of the transmitter: Terminals “OUT4” of receiver outputs AC power, the lamp 4 is turned on.
Release the button D of the transmitter: Terminals “OUT4” of receiver stops outputting, the lamp 4 is turned off.

2) Setting Self-locking mode (work with transmitter CWB-4): Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
Press button A of the transmitter: Terminals “OUT1” of receiver outputs AC power, the lamp 1 is turned on.
Press button A of the transmitter again: Terminals “OUT1” of receiver stops outputting, the lamp 1 is turned off.
Press button B of the transmitter: Terminals “OUT2” of receiver outputs AC power, the lamp 2 is turned on.
Press button B of the transmitter again: Terminals “OUT2” of receiver stops outputting, the lamp 2 is turned off.
Press button C of the transmitter: Terminals “OUT3” of receiver outputs AC power, the lamp 3 is turned on.
Press button C of the transmitter again: Terminals “OUT3” of receiver stops outputting, the lamp 3 is turned off.
Press button D of the transmitter: Terminals “OUT4” of receiver outputs AC power, the lamp 4 is turned on.
Press button D of the transmitter again: Terminals “OUT4” of receiver stops outputting, the lamp 4 is turned off.

3) Setting Interlocking mode (work with transmitter CWB-4): Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
Press button A of the transmitter: Terminals “OUT1” of receiver outputs AC power, the lamp 1 is turned on; The other three output terminals stop outputting, and the other three lamps are turned off.
Press button B of the transmitter: Terminals “OUT2” of receiver outputs AC power, the lamp 2 is turned on; The other three output terminals stop outputting, and the other three lamps are turned off.
Press button C of the transmitter: Terminals “OUT3” of receiver outputs AC power, the lamp 3 is turned on; The other three output terminals stop outputting, and the other three lamps are turned off.
Press button D of the transmitter: Terminals “OUT4” of receiver outputs AC power, the lamp 4 is turned on; The other three output terminals stop outputting, and the other three lamps are turned off.
