500m Wireless Remote Control Transmitter by Dry Contact Trigger (Model 0023007)

Regular price $45.00

Shipping calculated at checkout.

Package Include:
1 x Transmitter: CK-DR
1 x User manual

Working Principle:
Transmitter CK-DR is a special remote control that is triggered by a dry contact signal. It has two trigger lines for connecting a dry contact output signal from an equipment, such as warning host, detector, sensor, limit switch, Programmable Logic Controllers and so on.
When two trigger lines are connected, it will transmit a wireless signal "ON". When two trigger lines are disconnected, it will transmit a wireless signal "OFF".
This transmitter can be combined with different types of receivers to form a wireless control system, and this system is used to wirelessly control another device via a dry contact output signal from one device.

Feature:
Wireless control, easy to install.
Triggered by dry contact signal.
Wireless RF signal can pass through walls, floors, doors or windows.
Reliable control: The signal has thousands of different combinations, and the receiver only works with the transmitter which use the same code.

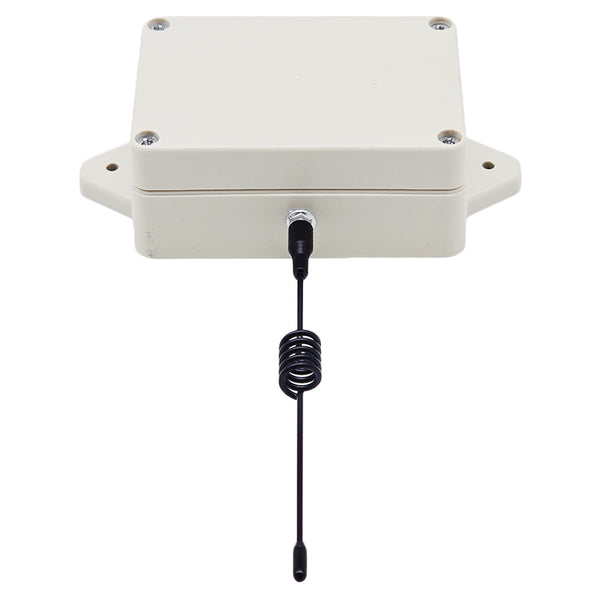

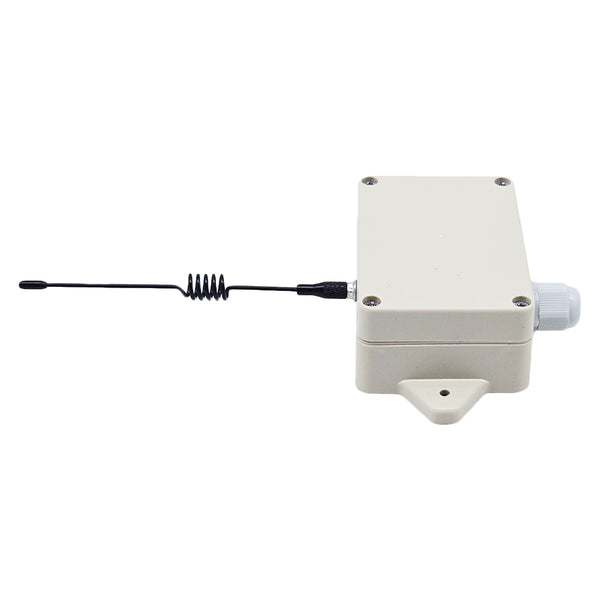

Waterproof: The transmitter has waterproof case and waterproof connector; it can be installed outdoors.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

Transmitter Parameters:
Model: CK-DR

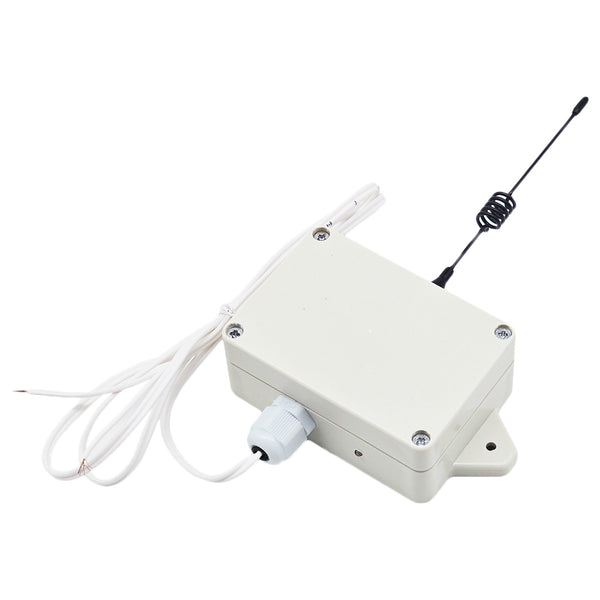

With two trigger lines

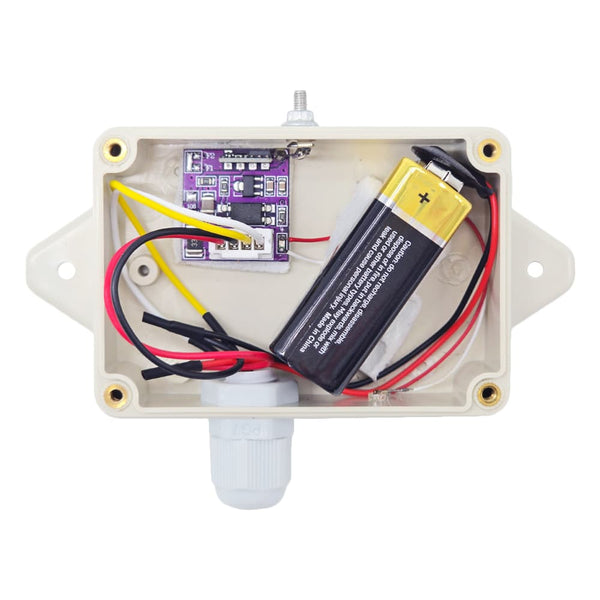

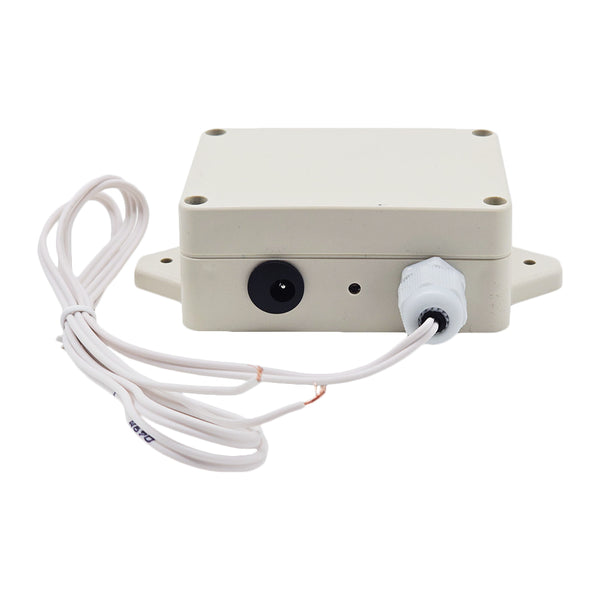

Operating Voltage: DC 9-12V (Built-in 6F22-9V battery or 12V power socket optional)
Triggered by connecting or disconnecting two trigger wires.
Triggering method: When two trigger wires are connected, the signal LED on the transmitter flashes immediately, and the transmitter sends a wireless signal "ON". After the transmission is completed, the signal LED goes out. When two trigger wires are disconnected, the signal LED flashes immediately, and the transmitter sends a wireless signal "OFF". After the transmission is completed, the signal LED goes out.
Operating Frequency: 433.92MHz
Encoding Chip: EV1527/SC2262
Transmission Distance: 500m / 1500ft (theoretically)
Case size: 83 x 58 x 34 mm

Working Range:
With a receiver to form a complete set, the maximum working distance may reach 1500 feet or 500 meters in an open area.
The maximum working distance is based on theoretical data without obstacles and any RF interference. In practice, it will be hindered by trees, walls, or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.

Usage:
If you want to control the second device by the first device with the dry contact, do as following:
1. Connect the second device to the receiver's output terminal.
2. Connect the dry contact of the first device to the transmitter’s two trigger wires.
3. When the first device is activated, and the dry contact is connected, the transmitter will emit a wireless signal "ON". When the receiver receives this wireless signal, it will activate its relay to turn on the second device.
4. When the first device is disactivated, and the dry contact is disconnected, the transmitter will emit a wireless signal "OFF". When the receiver receives this wireless signal, it will deactivate its relay to turn off the second device.

This transmitter only works with the following wireless switches (receivers)
DC power input dry contact output Model: 0020197
S1UA-DC-ANT
Model: 0020302
S1PU-DC-ANT
AC power input dry contact output Model: 0020466
S1U-AC-ANT
Model: 0020488
S1PU-AC-ANT
DC power input output Model: 0020008
S1PXA-DC
Model: 0020052
S1PX-DC
AC power input output Model: 0020030
S1PXA-AC
Model: 0020053
S1PX-AC
