1 x Ignition controller: S6PS1-ANT1
1 x Remote control: CP-6L
1 x User manual
Wireless control, easy to install.
It can ignite various kinds of electronic fireworks directly, or ordinary fireworks through an electric ignition head, which reduces accidents like skin burn and accidental explosions.
Disposable electric ignition head and reusable electric ignition head are optional.
Each channel of ignition controller can ignite several fireworks at the same time.
One transmitter can control many ignition controllers simultaneously.
The ignition controller can be operated by remote control from any place within a reliable distance; wireless signal can pass through walls, floors, doors or windows, but the operating range will be shortened.
More reliable than fixed code, the remote control use EV1527 learning code chip, which is up to 1 million codes, reducing code collision and unauthorized code scanning possibilities.
With external telescopic antenna, the ignition controller has a farther working range.

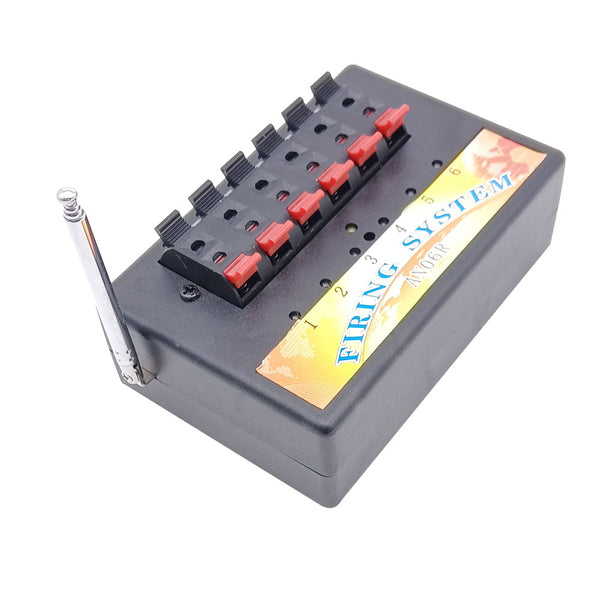

Model No.: S6PS1-ANT1
Channel: 6 CH
Working Frequency: 433.92MHz

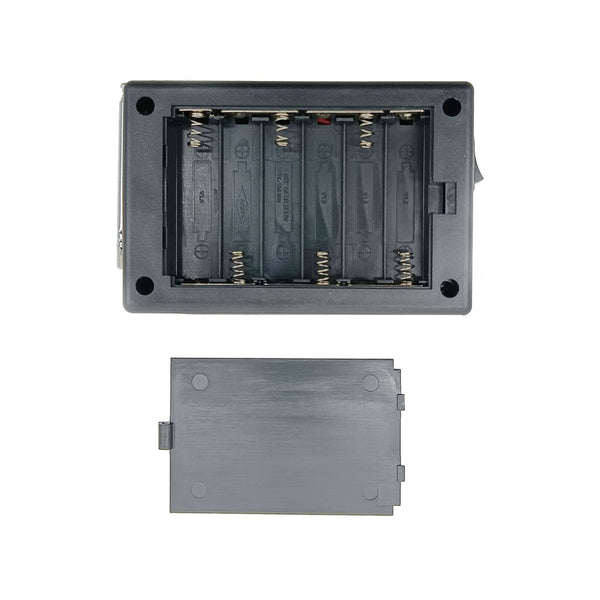

Power Supply: 6 x 1.5V AA batteries (excluded)
Static Current: ≤6mA
Operating Temperature: -20℃ to +70℃
Case size: 115 x 75 x 50 mm (4.5 x 3 x 2 inches)
Model No.: CP-6L
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 8mA
Working Frequency: 433.92MHz
Encoding Chip: EV1527
Encoding Type: Learning code
Transmitting Distance: 500 meters / 1500ft (theoretically)
If you stretch the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Unit Size: 85 x 36 x 16 mm (3.35 x 1.42 x 0.63 inches)
With the remote control CP-6L to form a complete set, the maximum working distance can reach 500 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
1. Test the firework ignitor system:
Turn on the power switch on the controller and press 6 buttons on the remote control one by one, if 6 signal LEDs flash one by one, it means that firework ignitor system is in good condition.
2. Connect fireworks:
Turn off the power switch on the controller and connect two wires of each electronic firework to red and black terminals of each channel, or connect ordinary firework fuse to the electric ignition head, and connect electric ignition head to red and black terminals. Then turn on the power switch on the controller, if four signal LEDs are on, it means that all fireworks connections are correct.
3. Ignite fireworks:
Turn on the power switch on the controller, press any button on the remote control, the corresponding firework will be ignited.
Caution: Please make sure that the power switch of controller is off when you connect electronic fireworks or electric ignition head to controller.
