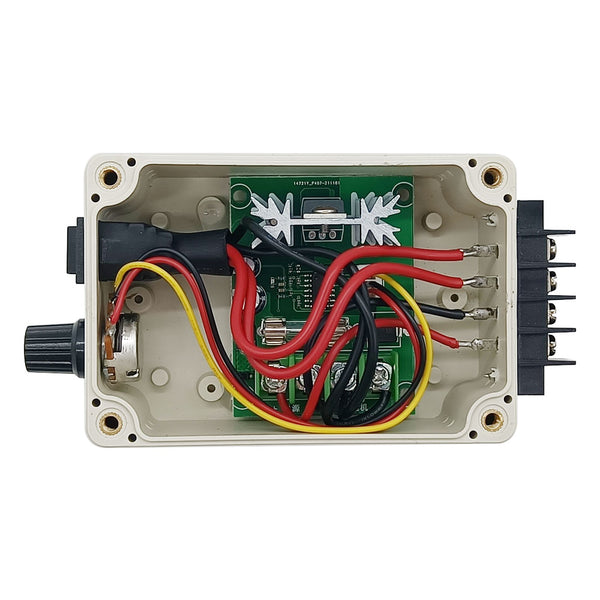

DC 5A Variable Speed Controller For 12V 24V Electric Linear Actuator (Model: 0044010)

Feature:
Control the extension, stop, retraction and speed regulation of DC linear actuator.

Specification:
Model: 0044010
Operating voltage range: DC 12V~24V
Rated current: 5A
Maximum operating current: 10A
Size: 100 x 68 x 50 mm (4.0 x 2.7 x 2.0 inches)
Speed Adjustment Range: 5%~100%
Adjustable potentiometer: 100K
With 10A fuse

Wiring:

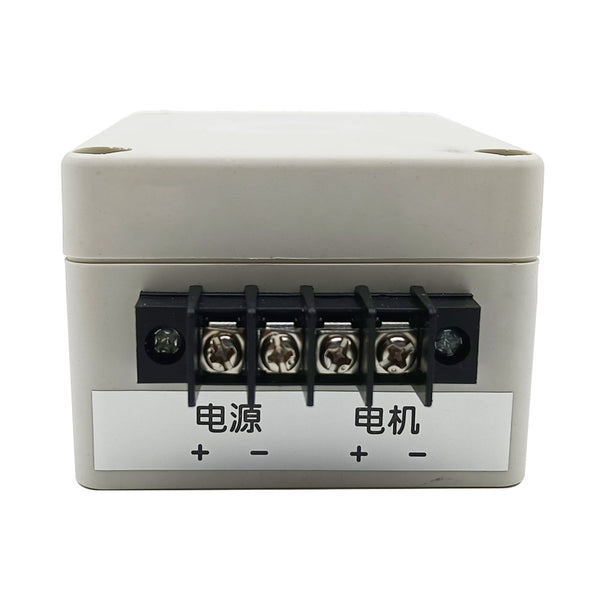

1) Connect the positive pole of DC power supply to the power terminal “+”, and connect the negative pole of DC power supply to the power terminal “-“. The positive and negative poles cannot be reversed, otherwise the controller will be damaged.
2) Connect linear actuator to the motor terminals. You can exchange these two wires to change the direction of movement.

Operation for linear actuator:

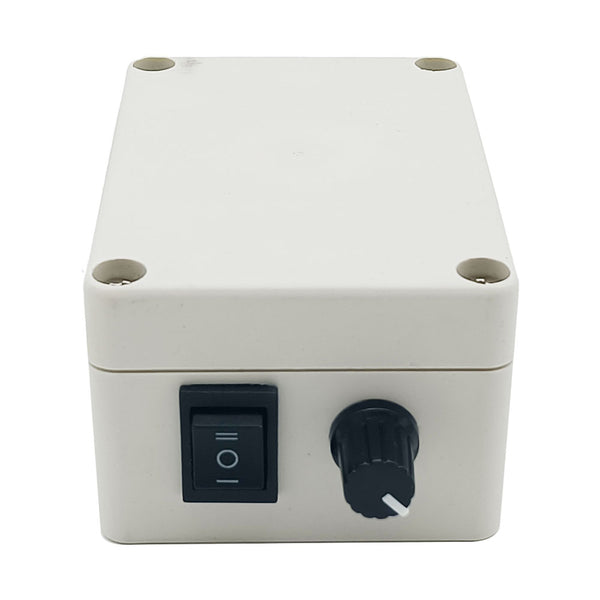

Push the switch to the position "ON", linear actuator extends outward.
Push the switch to the position "OFF", linear actuator stops.
Push the switch to another position "ON", linear actuator retracts inward.

Twist the knob to adjust the movement speed of linear actuator.
Twist clockwise, the moving speed of linear actuator will speed up.
Twist anti-clockwise, the moving speed of linear actuator will slow down.
