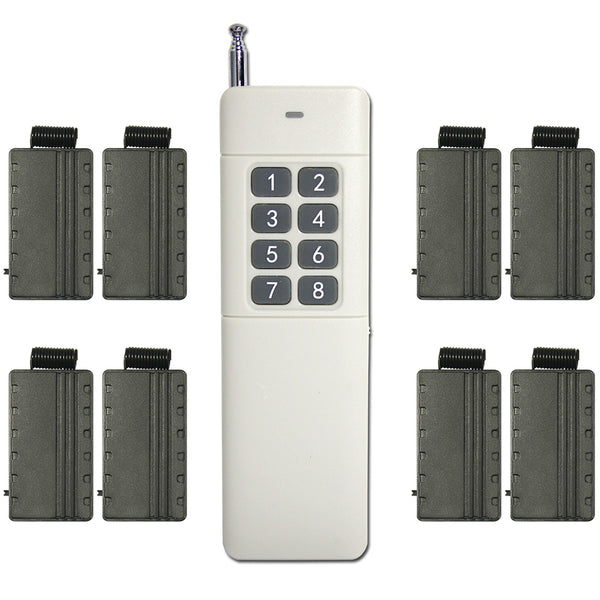

Package Include:
8 x Receiver: Z-04
1 x Transmitter: CP-8 or CB-8
1 x User manual
Application:
This is a DC 1.5V small wireless vibration reminder with RF remote control or transmitter, which can long range reminding person with hearing impairment, or pet training.
Feature:
Wireless control.
You can use the transmitter (remote control) from anywhere within a reliable distance to control the receiver (wireless vibrator) to vibrate.
The wireless signal can pass through walls, floors and doors.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.

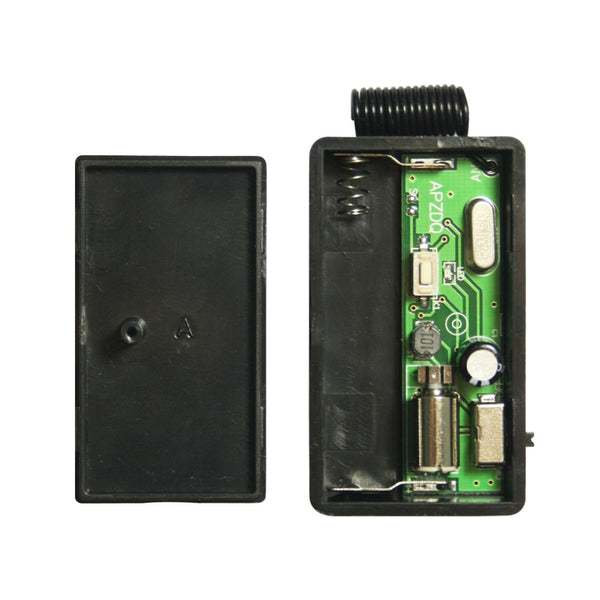

Receiver (Wireless Vibrator and Beeper):
Model: Z-04
Power Supply: 1 x AAA 1.5V Battery (included)
Working Mode: Momentary Vibration
With power switch on the side.
Operating Temperature: -20°C to +70°C
Size: 51mm x 30mm x 14mm
Transmitter (Remote Control):
Model No.: CP-8
Channel/Button: 8
Button Symbol: 1, 2, 3, 4, 5, 6, 7, 8
Operating Voltage: 12V (1 x 23A -12V battery)
Operating Current: 8mA
Operating Frequency: 433Mhz
Encoding Chip: PT2262/ PT2264/ SC2262
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 85mm x 36mm x 16mm
Applicable Transmitters:
The receiver (wireless vibrator and beeper) can work with different transmitters. Such as model CP-8 (500 Meter / 1500 feet range), or CB-8 (1000 Meter / 3000 feet range).
Working Range:
With a transmitter (such as CP-8) to form a complete set, the maximum working distance can reach 500 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you use a powerful transmitter, such as a CB-8 transmitter.
Usage:
Press and hold the button 1 of the transmitter, the vibrator 1 vibrates.
Release the button 1, the vibrator 1 stops vibration.
Press and hold the button 2 of the transmitter, the vibrator 2 vibrates.
Release the button 2, the vibrator 2 stops vibration.
...
Press and hold the button 8 of the transmitter, the vibrator 8 vibrates.
Release the button 8, the vibrator 8 stops vibration.
