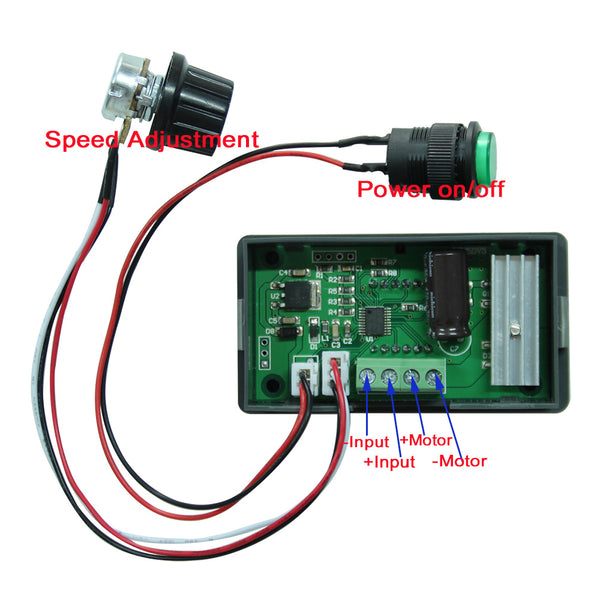

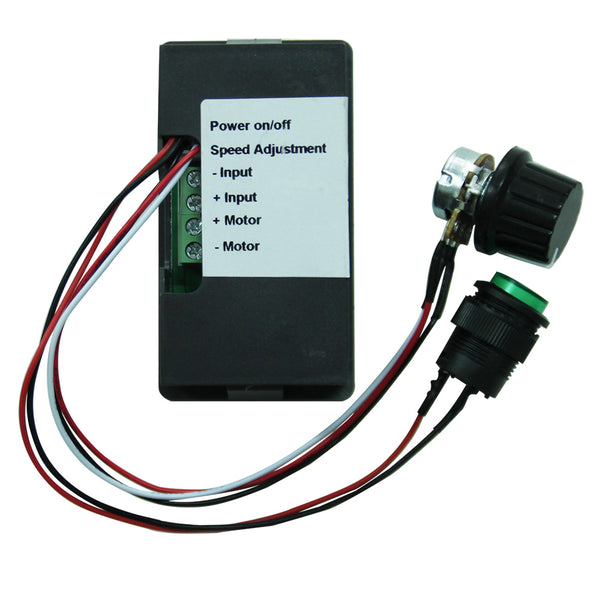

The PWM DC motor speed controller with digital screen.
The speed of motor rotation can be adjusted according to 0~100% through adjustable rotary potentiometer, then the digital screen will display digital 0~100. That means when the screen display digital “0”, the motor stop rotating; when the screen display digital “1 ~100”, the motor rotating. The higher the number, the faster rotation. When the screen display digital “100”, that means the speed of motor rotation is fastest.
Feature:
Model: 0044001
Voltage: DC6V~30V
Rated current: 6A
The maximum operating current: 8A

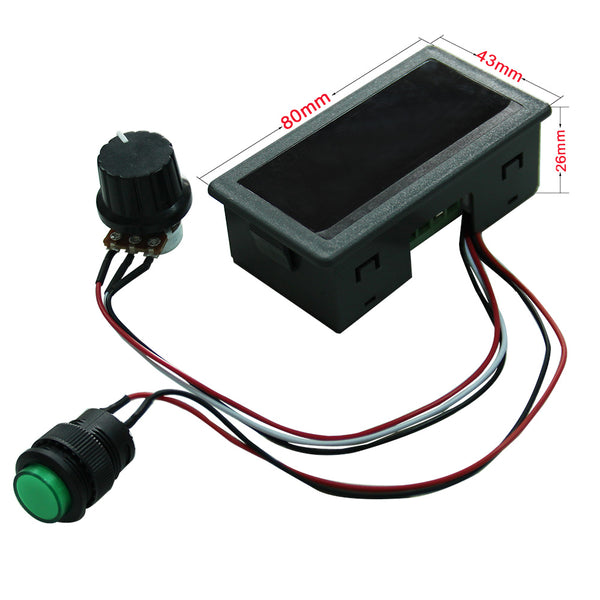

Unit Size: 80mm x 43mm x 26mm
Speed Adjustment Range: 0%~100%.
