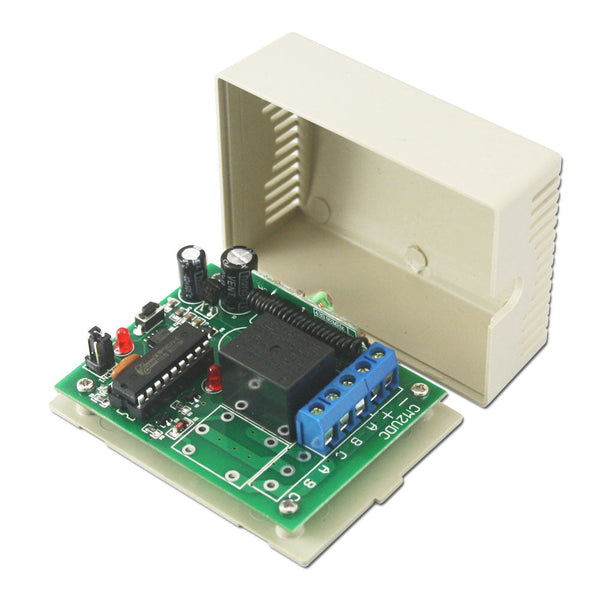

1 Way DC 10A Wireless Remote Control Switch Kit with Memory Function (Model: 0020231)

Regular price $44.00

Shipping calculated at checkout.

Application:
This 1 channel DC 6V 9V 12V 24V wireless switch with remote control(transmitter) is memory function. If the power is cut off, the relay on the switch will return automatically to the previous status after the power is restored. It can long distance remote control DC and AC equipments, such as long range remote control light, lamp, locks, motor, pump, fans, doors, windows, electric solenoid valves, etc.

Feature:
Wireless control, easy to install.
Power Supply: Four working voltage versions, DC 6V, 9V, 12V, 24V.
Relay Output: This receiver is dry relay output, it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

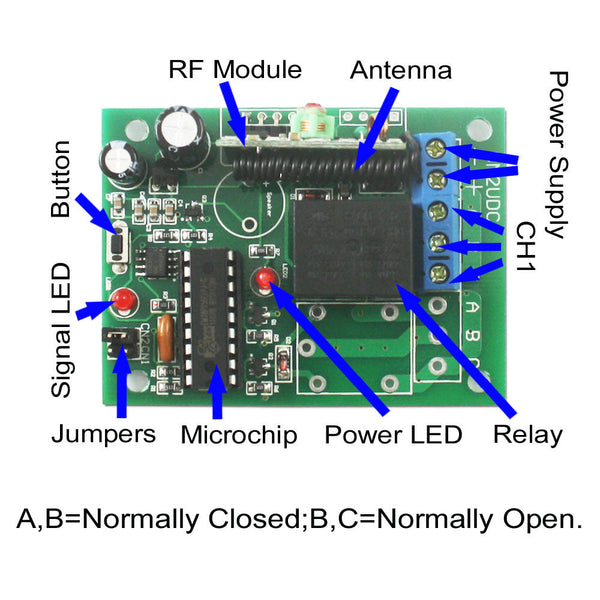

Receiver Parameters:
Model No.: S1MU-DC06 / S1MU-DC09 / S1MU-DC12 / S1MU-DC24
Power Supply (Operating Voltage): DC6V (S1MU-DC06), DC9V±1V (S1MU-DC09), DC12V±1V (S1MU-DC12), DC24V±2V (S1MU-DC24)
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Wire range for the terminals: 22-14 AWG
Working Frequency: 433.92MHz
Channel: 1 CH
Control Modes: Self-locking, Interlocking
Static Current: ≤6mA
Maximum Working Current: 10A / each channel
Operating Temperature: -20 ° C to +70 ° C
PCB size: 67mm x 50mm x 18mm
Case size: 75mm x 54mm x 27mm

Transmitter Parameters:
Model No.: 0021001 (C-2)
With Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide down the button will appear.
Channel/Button: 2
Button Symbol: A, B
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 6mA
Operating Frequency: 433Mhz
Transmitting Distance: 100m / 300ft (theoretically)
Modulation Mode: ASK
Unit Size: 58mm x 39mm x 16mm

Matching Transmitters:
The receiver can work with different transmitters. such as model C-2 (100 Meter / 300 feet range), CP-2 (500 Meter / 1500 feet range), CD-2 (Waterproof, 1000 Meters / 3000 ft range), or CB-2 (1000 Meter / 3000 feet range).

Working Range:
With a transmitter (such as C-2) to form a complete set, the maximum working distance can reach 100 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-2 transmitter.

Setting different control modes:
1) Setting Self-locking mode: Only connect Jumper-2.
Control mode Self-locking (working with transmitter C-2): Press -> On; Press again -> Off.
Press the button A on the transmitter: The relay in the receiver is activated, and the connected lamp is turned on.
Press the button A again: The relay is deactivated, and the connected lamp is turned off.

2) Setting Interlocking mode: Disconnect Jumper-1 and Jumper-2
Control mode Interlocking (working with transmitter C-2): Press -> On, Press another button -> Off.
Press the button A on the transmitter: The relay in the receiver is activated, and the connected lamp is turned on.
Press the button B on the transmitter: The relay is deactivated, and the connected lamp is turned off.

Function of memory:
When the relay is on the status of "ON", it will shift to the status of "OFF" when the power is cut off.
Once the power is restored, the relay will return automatically to the previous status of "ON".

Package Include:

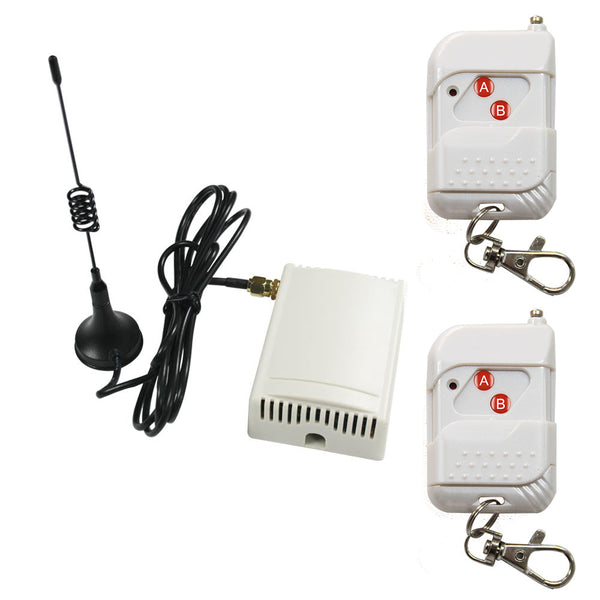

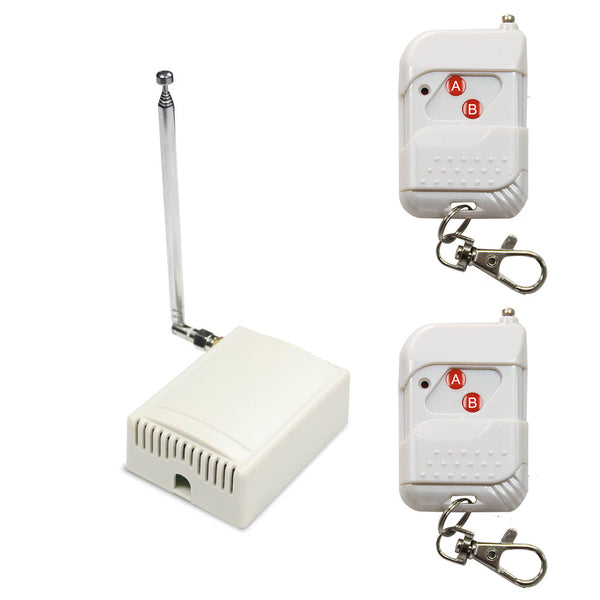

1 x Receiver: S1MU-DC-ANT3
2 x Transmitter: C-2
1 x User manual
