Package Include:
1 x Receiver: S2X-AC-ANT3
1 x User manual
Application:
This is a waterproof wireless switch radio receiver with 2 channels AC power 120V 220V input output 10A.
It can long range remote control AC electrical equipments, such as lamps, lights, LED lighting, motors, fans, pump, solenoid valves, etc.
Feature:
Wireless remote control, easy to install.

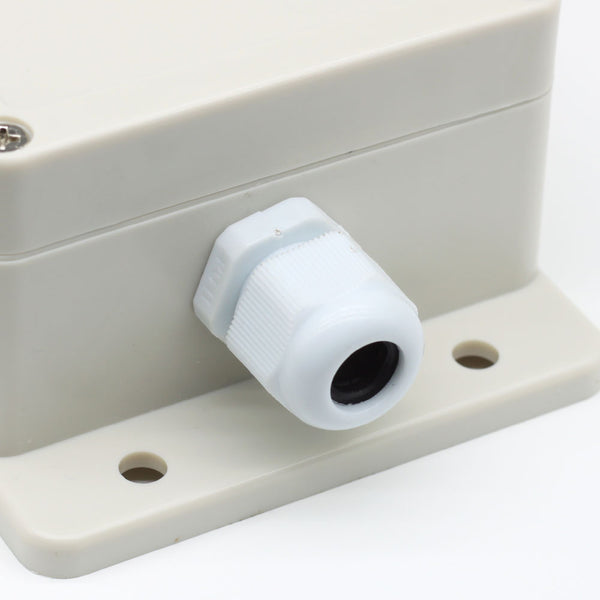

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support 110V AC (100V~120V) used in US, Canada, etc, and 220V AC (200V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.

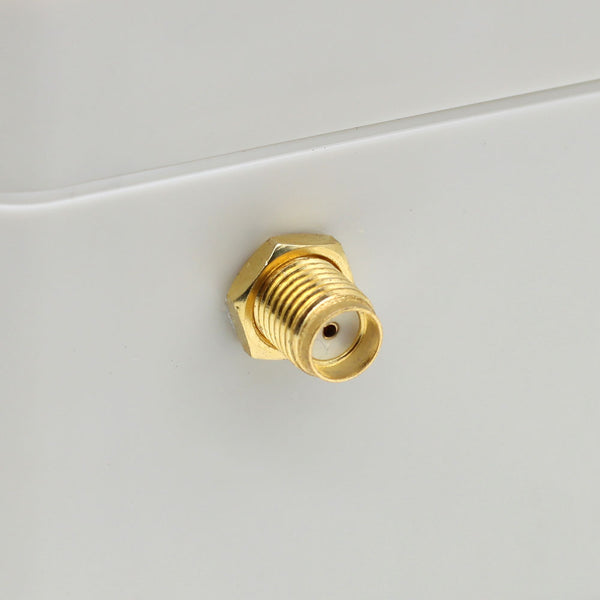

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

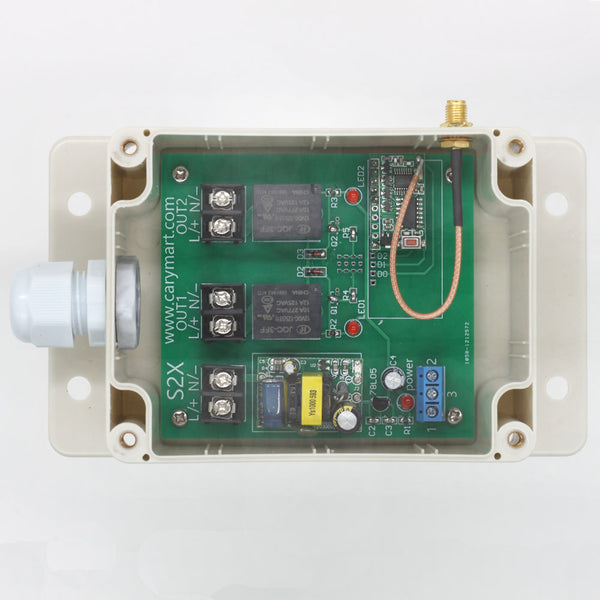

Receiver Parameters:
Model: S2X-AC-ANT3
Operating Voltage: 110~240V AC (110V/120V/220V/240V)
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Channel: 2 CH
Output Type: 110~240V AC (110V/120V/220V/240V)
Maximum Load Current of Relay: 10A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
4 Selectable Working Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking
Operating Temperature: -20 °C ~ +70 °C
PCB size: 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches)
Case size: 115 x 90 x 55 mm (4.5 x 3.6 x 2.2 inches)
Matching Transmitters:
The receiver can work with different transmitters, such as model C-2 (100 meters / 300 feet range), CP-2 (500 meters / 1500 feet range), CD-2 (Industrial, 1000 meters / 3000 feet range), or CB-2 (1000 meters / 3000 feet range).
Working Range:
With a transmitter (such as C-2) to form a complete set, the maximum working distance can reach 100 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
IIf you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-2 transmitter.
Usage:
The receiver can be used to control AC 110~240V equipments.

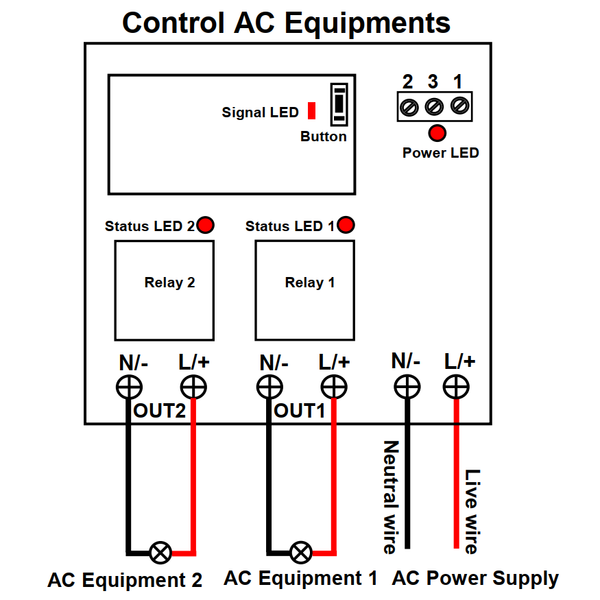

Wiring:
1) Connect the live wire of AC power supply to the input terminal “L/+” of the receiver;
2) Connect the neutral wire of AC power supply to the input terminal “N/-” of the receiver;
3) Connect one side of AC device to the output terminal “L/+” of the receiver;
4) Connect another side of AC device to the output terminal “N/-” of the receiver.
Setting different control modes:
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter C-2:
Press and hold the button A of the transmitter: The terminals “OUT1” of the receiver outputs AC power, and the connected light 1 is turned on.
Release the button A of the transmitter: The terminals “OUT1” of the receiver stops outputting, and the connected light 1 is turned off.
Press and hold the button B of the transmitter: The terminals “OUT2” of the receiver outputs AC power, and the connected light 2 is turned on.
Release the button B of the transmitter: The terminals “OUT2” of the receiver stops outputting, and the connected light 2 is turned off.
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter C-2:
Press the button A of the transmitter: The terminals “OUT1” of the receiver outputs AC power, and the connected light 1 is turned on.
Press the button A of the transmitter again: The terminals “OUT1” of the receiver stops outputting, and the connected light 1 is turned off.
Press the button B of the transmitter: The terminals “OUT2” of the receiver outputs AC power, and the connected light 2 is turned on.
Press the button B of the transmitter again: The terminals “OUT2” of the receiver stops outputting, and the connected light 2 is turned off.
3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
The operation of Interlocking mode with the transmitter C-2:
Press the button A of the transmitter: The terminals “OUT1” of the receiver outputs AC power, and the connected light 1 is turned on; The terminals “OUT2” of the receiver stops outputting, and the connected light 2 is turned off.
Press the button B of the transmitter: The terminals “OUT2” of the receiver outputs AC power, and the connected light 2 is turned on; The terminals “OUT1” of the receiver stops outputting, and the connected light 1 is turned off.
4) Setting Momentary (Channel 1) + Self-locking (Channel 2) mode: Press the learning button in the receiver 5 times, signal LED continuously flashes 5 times and then goes off.
