1 Way DC 8~80V Wireless Remote Control Relay Switch Kit Long Range 2 Km (Model: 0020303)

Regular price $60.00

Shipping calculated at checkout.

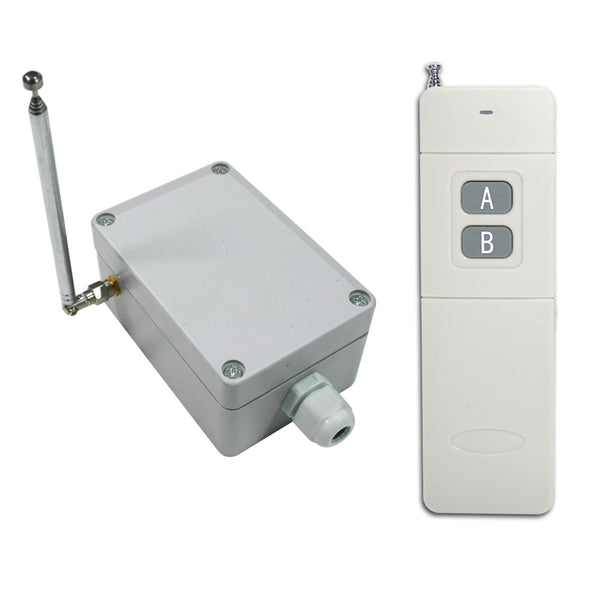

Package Include:
1 x Receiver: S1PU-DC-ANT3
1 x Transmitter: CB-1 or CB-2
1 x User manual

Application:
This is long distance 2000 meters DC 8V~80V high power wireless remote control switch kit, with 1 channel 30A dry relay output (Normally open and normally closed) radio receiver and RF transmitter.
It can long range remote control DC and AC equipments, such as light, lamp, electric locks, motor, pump, fans, solenoid valves, etc.

Feature:
Wireless control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
DC 8~80V operating voltage range.
Relay Output: This receiver is dry relay output, it can be used to operate both DC and AC equipments. The output terminals are NO / NC (normally open / normally closed), which serves as a switch. That means you should also connect a separate power supply to equipments.
High Power: Each channel can work at maximum current 30A.

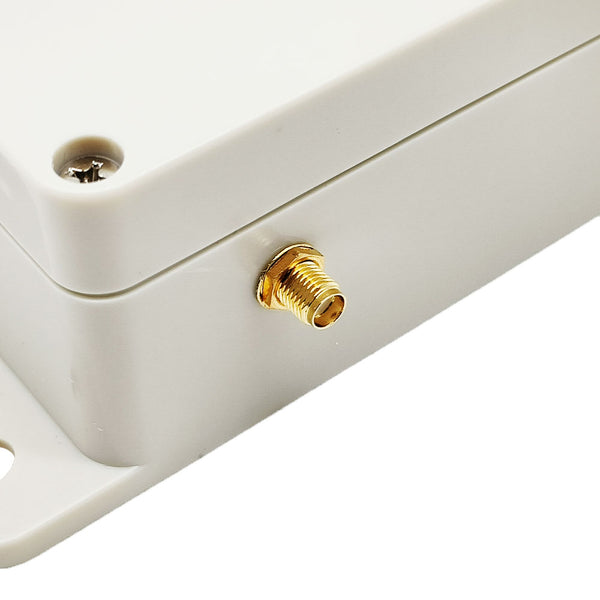

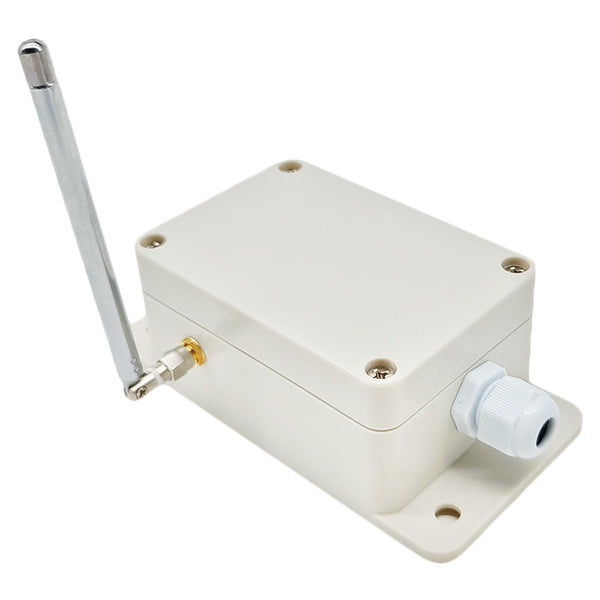

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

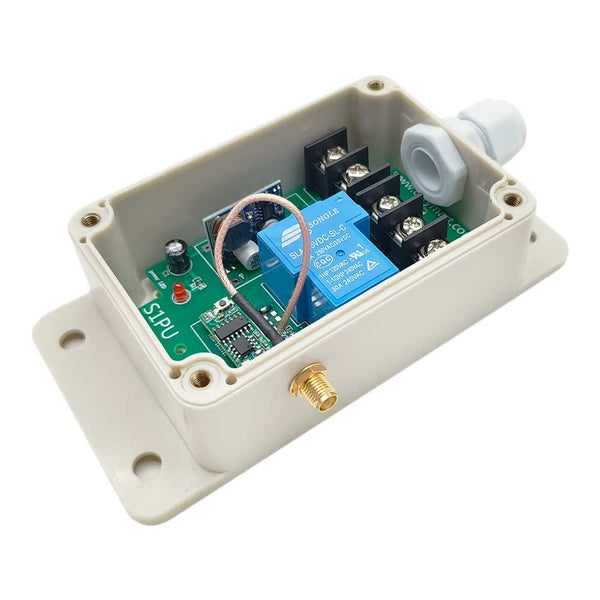

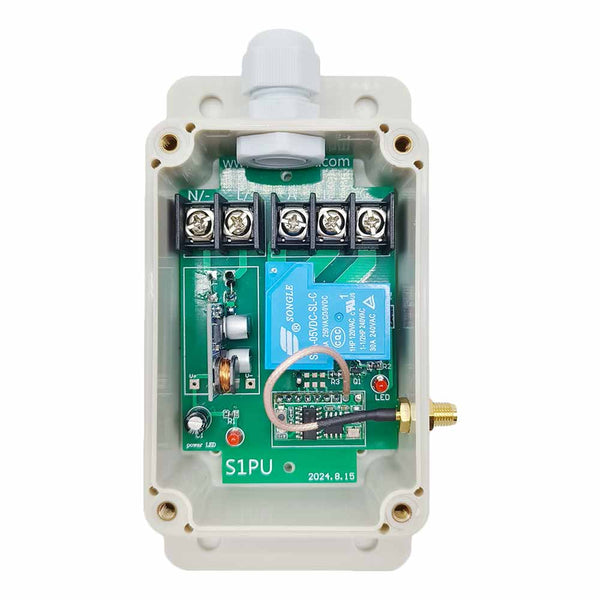

Receiver Parameters:
Model: S1PU-DC-ANT3
Operating Voltage: 8~80 VDC
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Channel: 1 CH
Output Type: Relay Output (With Normally Open and Normally Closed Terminals)
Maximum Load Voltage of Relay: 240VAC or 28VDC
Maximum Load Current of Relay: 30A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
3 Selectable Working Modes: Self-locking, Momentary, Interlocking
Operating Temperature: -20 °C ~ +70 °C
PCB size: 90 x 59 x 18 mm (3.5 x 2.3 x 0.7 inches)

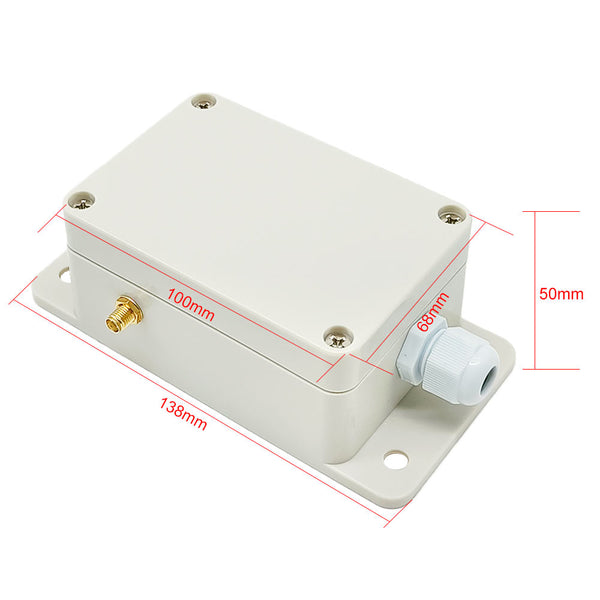

Case size: 138 x 68 x 50 mm (5.4 x 2.7 x 2.0 inches)

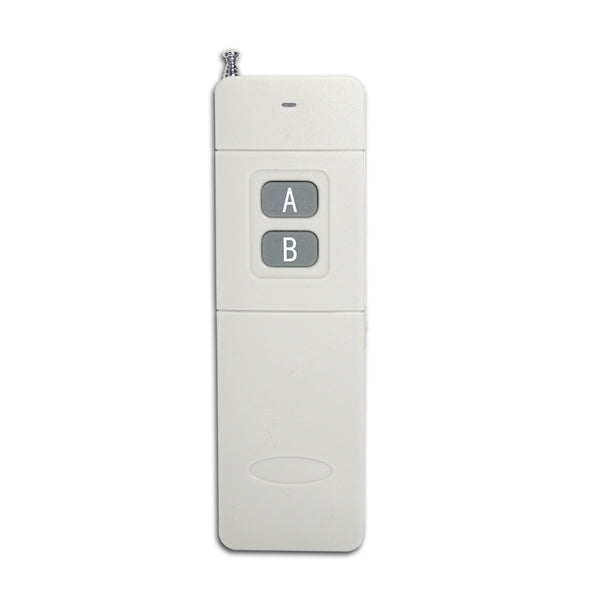

Transmitter Parameters:
Model No.: 0021023 (CB-1) / 0021024 (CB-2)
Channel/Button: 1 (CB-1) / 2 (CB-2)
Button Symbol: No symbol (CB-1) / A, B (CB-2)

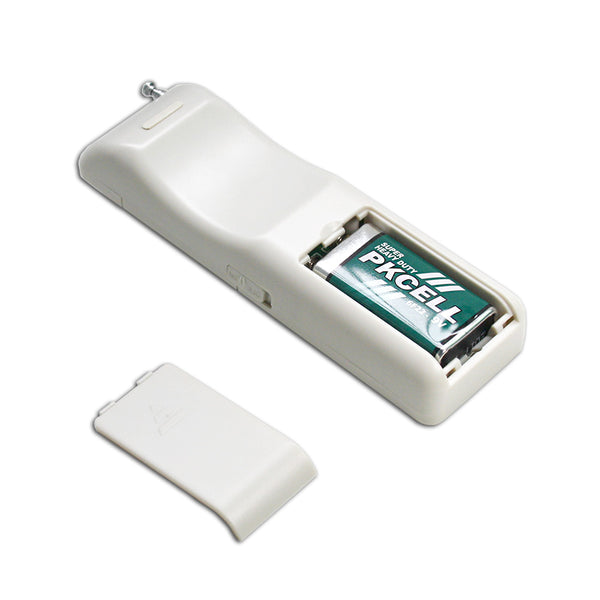

Operating Voltage: 9V (1 x 6F22 -9V battery)
Operating Current: 30mA
Operating Frequency: 433.92MHz
Encoding Chip: PT2262 / PT2264 / SC2262
Transmitting Distance: 1000 meters / 3000ft (theoretically)
It has an on / off button on the side.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: Unit Size: 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches)

Matching Transmitters:
The receiver can work with different transmitters.
When you set the receiver in Self-locking mode or Momentary mode, it should work with single button transmitter, such as model C-1 (100 meters / 300 feet range)CP-1 (500 meters / 1500 feet range), or CB-1 (1000 meters / 3000 feet range).
When you set the receiver in Interlocking mode, it should work with two buttons transmitter, such as model C-2 (100 meters / 300 feet range)CP-2 (500 meters / 1500 feet range)CD-2 (Industrial, 1000 meters / 3000 feet range), or CB-2 (1000 meters / 3000 feet range).

Working Range:
With a transmitter (such as CB-1 or CB-2) to form a complete set, the maximum working distance can reach 2000 Meter in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.

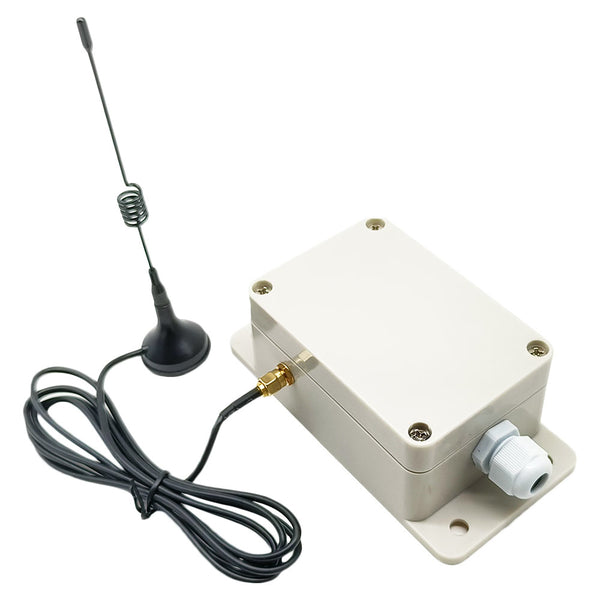

If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater.

.Usage:
The receiver can be used to control both DC 0~28V and AC 110~240V equipments.

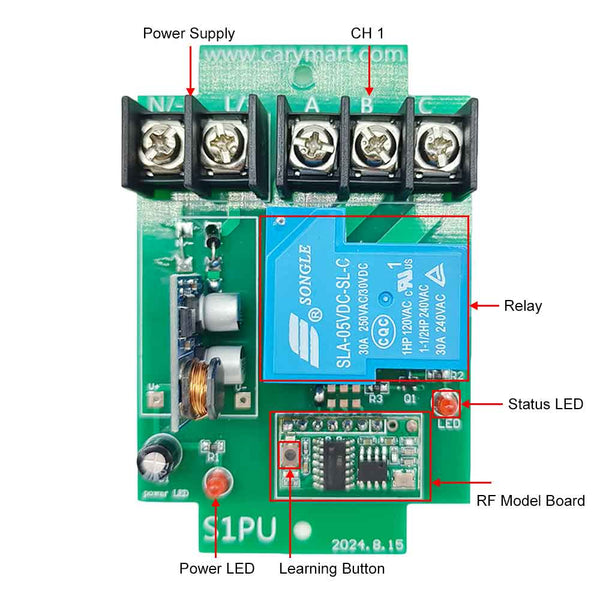

Notice: The receiver is dry relay output, not DC/AC power output. Initial state of relay output terminals: Terminals B and C are Normally Open; Terminals A and C are Normally Closed.

Wiring:

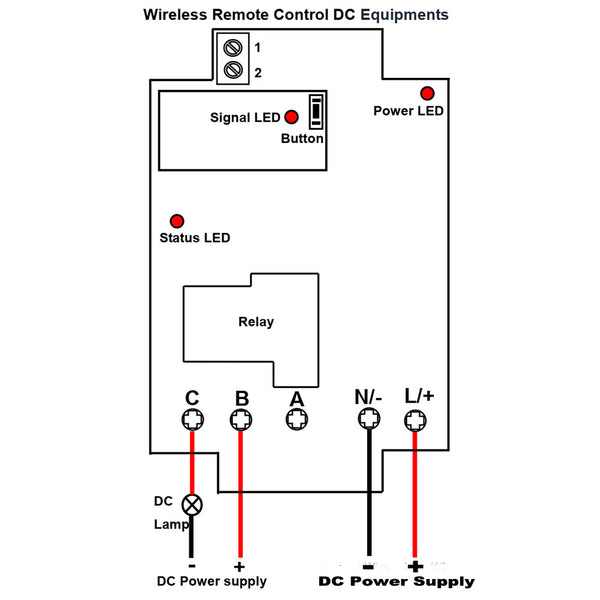

I) If you want to control a DC lamp, do as following:
1) Connect the positive pole of DC power supply to terminal "L/+" of the receiver;
2) Connect the negative pole of DC power supply to terminal "N/-" of the receiver;
3) Connect the positive pole of DC power supply to terminal "B" of the receiver;
4) Connect the negative pole of DC power supply to terminal the negative pole of DC lamp;
5) Connect the positive pole of DC lamp to terminal "C" of the receiver.

II) If you want to control an AC lamp, do as following:
1) Connect the positive pole of DC power supply to terminal "L/+" of the receiver;
2) Connect the negative pole of DC power supply to terminal "N/-" of the receiver;
3) Connect the live wire of AC power supply to terminal "B" of the receiver;
4) Connect the neutral wire of AC power supply to one side of AC lamp;
5) Connect the another side of AC lamp to terminal "C" of the receiver;

Setting different control modes:
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter CB-1:
Press and hold the button on the transmitter: The relay in the receiver is activated, and the connected lamp is turned on.
Release the button: The relay is deactivated, and the connected lamp is turned off.

2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter CB-1:
Press the button on the transmitter: The relay in the receiver is activated, and the connected lamp is turned on.
Press the button again: The relay is deactivated, and the connected lamp is turned off.

3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
The operation of Interlocking mode with the transmitter CB-2:
Press the button A on the transmitter: The relay in the receiver is activated, and the connected lamp is turned on.
Press the button B on the transmitter: The relay is deactivated, and the connected lamp is turned off.

How to pair the transmitter to the receiver:
1) Press the learning button once in the receiver, signal LED on the receiver flashes one time and then stays on, this indicates that the receiver enters the learning status.
2) Pair the CB-1 transmitter: Press the button on transmitter, if the signal LED flashes one time, this indicates that the pairing is successful.
Pair the CB-2 transmitter: Press button A on transmitter, if the signal LED flashes one time, this indicates that the pairing with button A is successful. Then press button B on transmitter, if the signal LED flashes one time, this indicates that the pairing with button B is successful.
3) Press the learning button in the receiver again for 1-2 seconds, signal LED turns off, this indicates that the receiver exits the learning status.
4) The receiver can learn several transmitters with different codes.

How to delete all transmitters codes stored in the receiver:
Press the learning button in the receiver 10 times and then release the learning button, signal LED flashes 10 times quickly and then goes off, this indicates that all stored codes have been deleted successfully.
