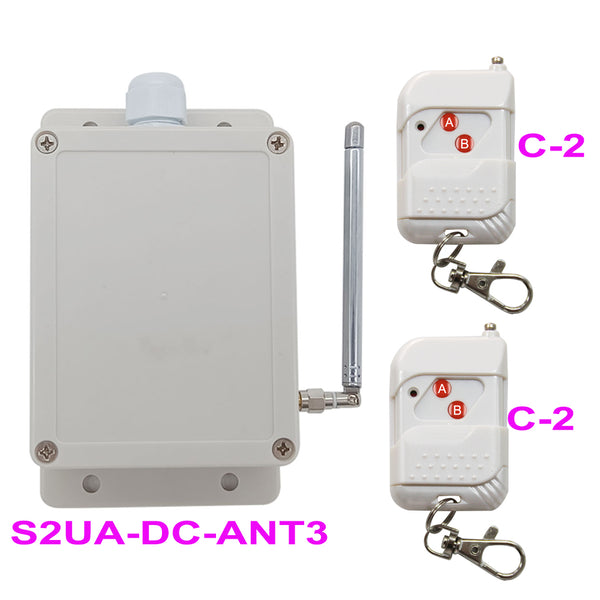

Package Include:
1 x Receiver: S2UA-DC-ANT3
2 x Transmitter: C-2
1 x User manual
Application:
For long range remote control DC and AC electrical equipments, such as lamps, lights, LED lighting, motors, fans, pump, solenoid valves, etc.
Feature:
Wireless control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Relay Output: This receiver is dry relay output; it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch. That means you should also connect a separate power supply to equipment.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model: S2UA-DC-ANT3
Operating Voltage: 6VDC (model S1UA-DC06), or 9±1VDC (model S1UA-DC09), or 12±1VDC (model S1UA-DC12), or 24±2VDC (model S1UA-DC24)
Output Type: Dry Relay Output (With Normally Open and Normally Closed Terminals)
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 10A / channel
Channel: 2 CH
3 Selectable Working Modes: Self-locking, Momentary, Interlocking
Working Frequency: 433.92 MHz
Operating Temperature: -20 °C ~ +70 °C
PCB size: 88 x 80 x 18 mm
Case size: 115 x 90 x 55 mm
Transmitter Parameters:
Model No.: 0021001 (C-2)
Channel/Button: 2
Button Symbol: A, B
Operating Voltage: 12V (1 x 23A -12V battery)
Operating Current: 6mA
Operating Frequency: 433Mhz
Transmitting Distance: 100m / 300ft (theoretically)
Modulation Mode: ASK
Unit Size: 58 x 39 x 16 mm
Matching Transmitters:
The receiver can work with different transmitters. such as model C-2 (100 Meters / 300 ft range), CP-2 (500 Meters / 1500 ft range), CD-2 (Waterproof, 1000 Meters / 3000 ft range), and CB-2 (1000 Meters / 3000 ft range).
Working Range:
The receiver and the transmitter (such as C-2) form a complete kit, the maximum working distance may reach 300 feet or 100 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no interference. But in the practice, it will be hindered by trees, walls, or other construction, and will be interfered by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
If you want to have a further working range, you can use a powerful transmitter, such as CB-2 transmitter.
Usage:
The receiver can be used to control both DC and AC devices.
Notice: The receiver is relay output, not DC/AC power output. Initial state of relay output terminals: Terminals <COM> and <NO> are Normally Open; Terminals <COM> and <NC> are Normally Closed.
Setting different working modes:
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter C-2:
Press and hold the button A on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on.
Release the button A: The relay 1 is deactivated, and the connected lamp 1 is turned off.
Press and hold the button B on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on.
Release the button B: The relay 2 is deactivated, and the connected lamp 2 is turned off.
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter C-2:
Press the button A on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on.
Press the button A again: The relay 1 is deactivated, and the connected lamp 1 is turned off.
Press the button B on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on.
Press the button B again: The relay 2 is deactivated, and the connected lamp 2 is turned off.
3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
The operation of Interlocking mode with the transmitter C-3:
Press the button A on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on. The relay 2 is deactivated, and the connected lamp 2 is turned off.
Press the button B on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on. The relay 1 is deactivated, and the connected lamp 1 is turned off.
Press the button C on the transmitter: The relay 1 and 2 in the receiver are deactivated, the lamps 1 and 2 are turned off.
